Запчасти Bobcat 444 ARTICULATION HYDRAULIC CYLINDER Z115/70 HYDRAULIC INSTALLATION

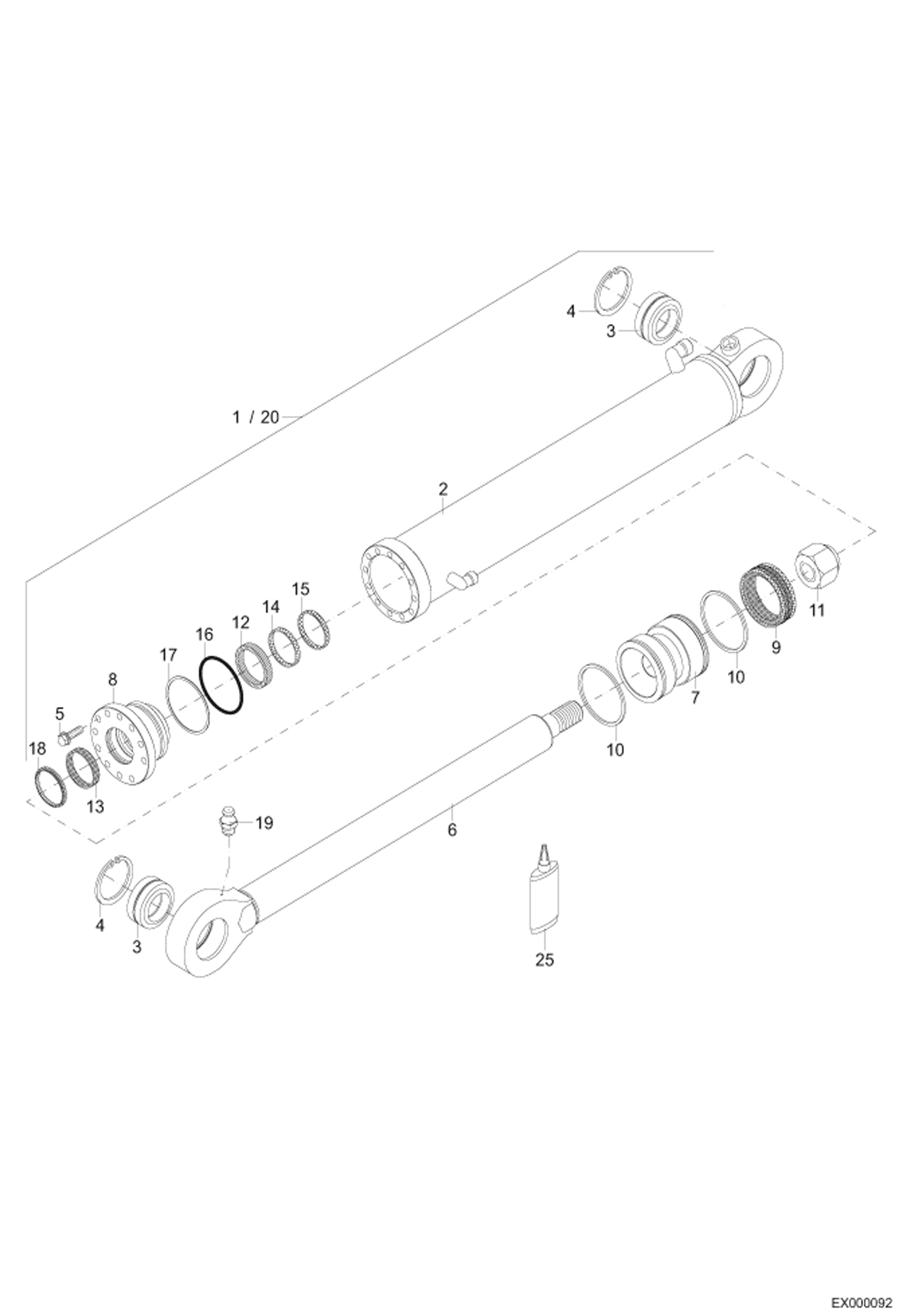

Схема запчастей Bobcat 444 - ARTICULATION HYDRAULIC CYLINDER Z115/70 HYDRAULIC INSTALLATION

Артикул

Название

Примечание

Количество

1

6501244500

CYLINDER, ARM DIPPER Includes Ref. 2 to 18

2

TUBE, CYL DIPPER ARM NLA - Order 7022160, Also Includes 6501244703 cylinder pipe, 1915060576 screwed socket, 1915060577 straight fitting and 6501244503 cylinder tube - Was 6501244503 - A

3

1950000865

LINKAGE BEARING

4

1456622369

CIRCLIP

5

1017370230

BOLT

6

6501244011

PISTON ROD

7

0501244015

PISTON

8

0501229017

PIERCING BUSHING

9

1634935021

PISTON SEAL

10

5074609200

SEGMENT

11

1212251836

NUT Secure with SCHAEFFLOCK 2070 F 50

12

1965956785

SEAL

13

5060507070

GUIDING RING

14

5060503070

GUIDING RING

15

5060502070

GUIDING RING

16

1971958523

O-RING

17

1966960111

BACK UP RING

18

1974955070

SCRAPER RING

19

1607003006

GREASE NIPPLE

20

1976999603

SEAL KIT Includes Ref. 9 to 18

25

GLUE NLA - Was MCS001036A - A

Выбрано товаров: 21
