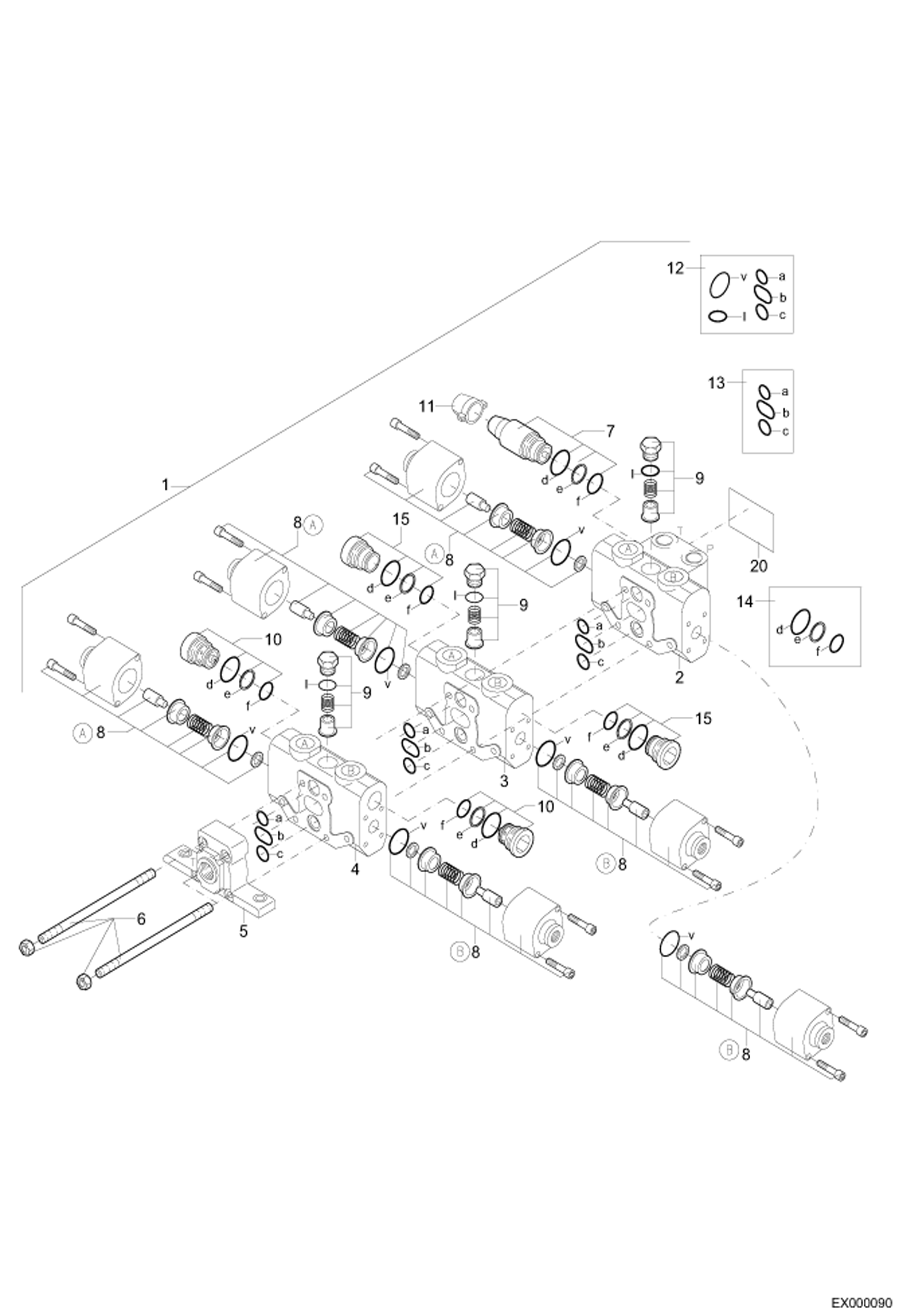

Запчасти Bobcat 444 VALVE BANK 3SM12 HYDRAULIC INSTALLATION

1

5606665063

VALVE, CONTROL 3 section valve bank, Includes ref. 2-6 - Was 5606660408 - A

2

5606664272

INLET VALVE Includes Ref. 7 to 9 + 11

3

5606664178

DIRECTIONAL VALVE Includes Ref. 8 to 9

4

5606664273

DIRECTIONAL VALVE Includes Ref. 8 to 10

5

5606664180

OUTLET VALVE

6

5606664181

TIE ROD KIT

7

5606656990

PRESS RELIEF VALVE

8

5606664182

HYD. OPERATION KIT A- + B-Side

9

5606664183

CHECK VALVE

10

5606656717

ANTI-CAV VALVE

11

5606664184

LOCKING COVER

12

5606656639

SET OF SEALS

13

5606656908

SEAL KIT

14

5606656632

SET OF SEALS

15

5606656769

VALVE TAPER

20

NAME PLATE
