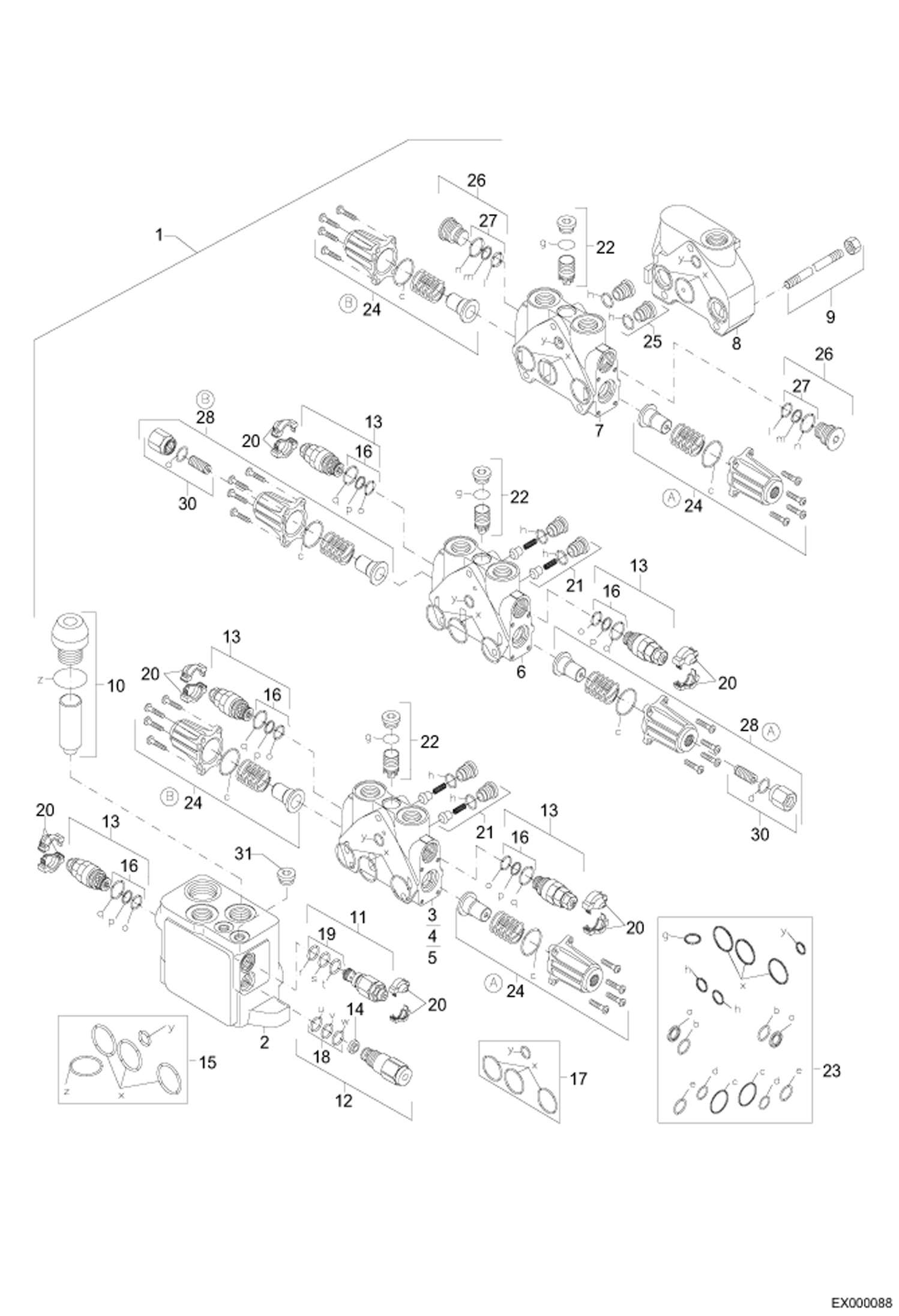

Запчасти Bobcat 444 VALVE BANK - MONO BOOM 6SX14 HYDRAULIC INSTALLATION

1

5606660450

VALVE BANK Includes Ref. 2 to 9

2

5606664477

INLET ELEMENT CPL. Includes Ref. 10 to 20 + 31

3

5606664478

DIRECTIONAL VALVE ELEMENT Includes Ref. 13 + 17 + 16 + 20 to 24

4

5606664479

DIRECTIONAL VALVE ELEMENT Includes Ref. 13 + 17 + 16 + 20 to 24

5

5606664480

DIRECTIONAL VALVE ELEMENT Includes Ref. 13 + 17 + 16 + 20 to 24

6

5606664481

DIRECTIONAL VALVE ELEMENT Includes Ref. 13 + 17 + 20 to 23 + 28 + 30

7

5606664483

DIRECTIONAL VALVE ELEMENT Includes Ref. 17 + 20 + 22 to 27

8

5606664191

OUTLET ELEMENT

9

5606664192

TIE ROD KIT

10

5606664193

REGULATION KIT

11

5606664212

PRESS RELIEF VALVE

12

5606656829

CURRENT REGULATOR

13

5606664224

PRESSURE RELIEF VALVE Includes Ref. 16

14

5606664195

FILTER FLOW REGULATOR

15

5606664196

SEAL KIT inlet section

16

5606664223

SEAL KIT

17

5606664198

SEAL KIT between work section

18

5606664199

SEAL KIT

19

5606664336

SEAL KIT

20

5606664184

LOCKING COVER

21

5606664201

CHECK VALVE

22

5606664202

PRESS COMPENSATOR

23

5606660809

KIT, SEAL COMPLETE Was 5606664484 - A

24

5606664204

HYD OPERATION KIT A- + B-Side

24

5606664593

CAP

24

5520609144

O-RING

25

5606664205

CHECK VALVE

26

5606656769

VALVE TAPER

27

5606656632

SET OF SEALS

28

5606664206

HYD OPERATION KIT A- + B-side

30

5606664368

STROKE LIMITER KIT

31

5606664383

PLUG
