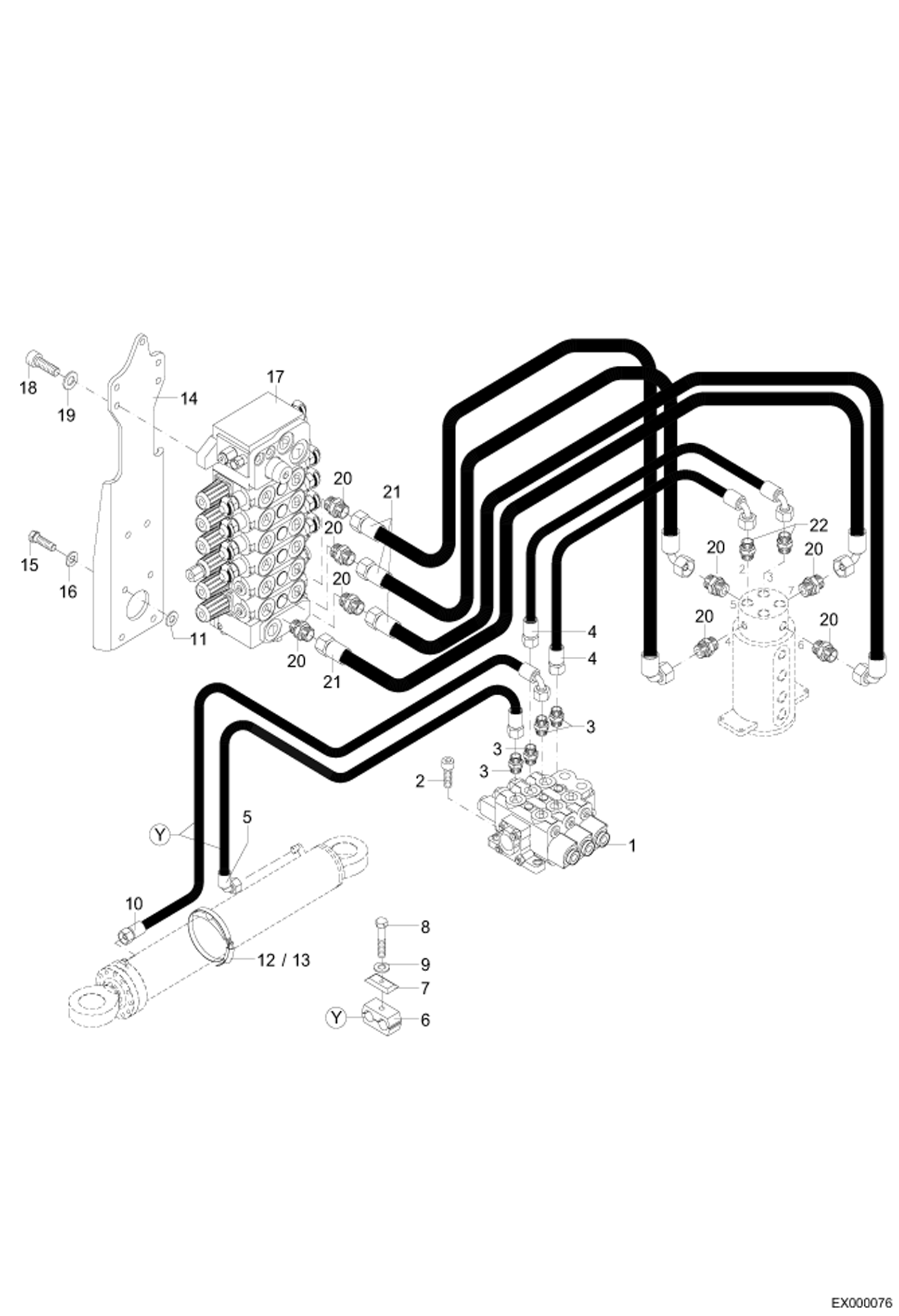

Запчасти Bobcat 444 ARTICULATION, DRIVE HYDRAULIC INSTALLATION

1

5606665063

VALVE, CONTROL See Illustration VALVE BANK/ EX000090 3 section valve bank, Includes ref. 2-6 - Was 5606660408 - A

2

1045707124

BOLT

3

1915060262

FITTING

4

4260150374

HOSE

5

4260232128

HOSE

6

5660199785

HOSE CLIP

7

5660200230

COVER PLATE

8

1007707220

BOLT

9

1290707018

WASHER

10

4260232129

HOSE

11

1343707061

WASHER

12

5660095200

HOSE CLIP

13

0110012050

RUBBER LAYER

14

0207508010

VALVE BRACKET

15

1008707230

BOLT

16

1290707022

WASHER

17

5606660450

VALVE BANK See Illustration VALVE BANK - MONO BOOM/ EX000088

18

1045707036

BOLT

19

1343707063

WASHER

20

1915060278

FITTING

21

4466078512

HOSE

22

1915060261

FITTING
