FLOAT POSITION - DOZER BLADE

Запчасти Bobcat 444 FLOAT POSITION - DOZER BLADE HYDRAULIC INSTALLATION

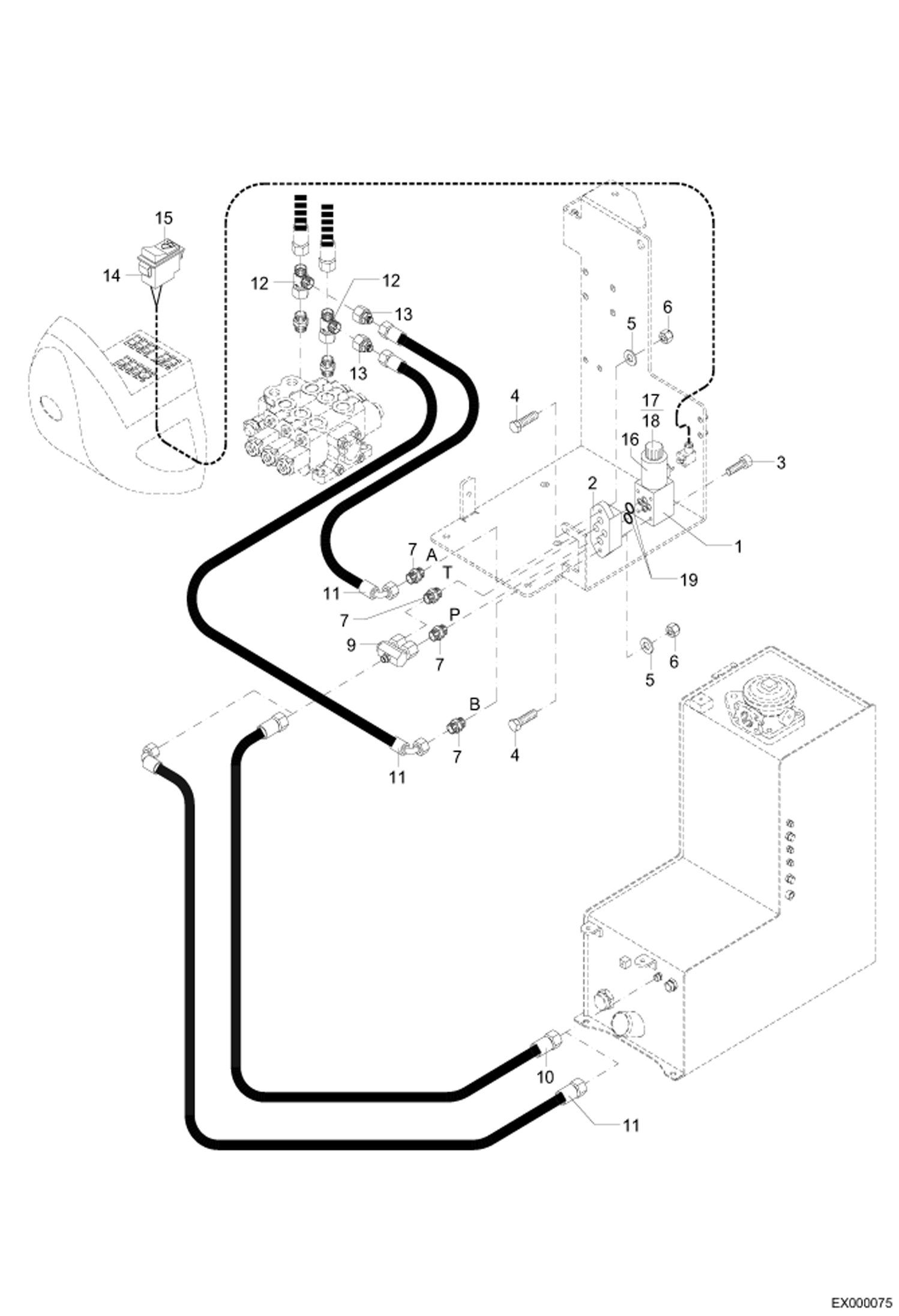

Схема запчастей Bobcat 444 - FLOAT POSITION - DOZER BLADE HYDRAULIC INSTALLATION
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5003700002

DIRECT CONTR. VALVE NG06 Includes Ref. 16 to 19

2

5003700003

CONNECTING PLATE

3

1045907011

BOLT

4

1008707513

BOLT

5

1290707014

WASHER

6

1212251009

NUT

7

1915060257

FITTING

9

5260310312

FITTING

10

4008040240

HOSE

11

4158046351

HOSE

12

1919060353

FITTING

13

1934060155

FITTING

14

5050651363

ROCKER SWITCH

15

5358650281

SYMBOL

16

5003700025

COIL

17

5003700026

NUT W/SEAL Includes Ref. 18

18

1970956810

O-RING

19

5003700027

SEAL KIT
