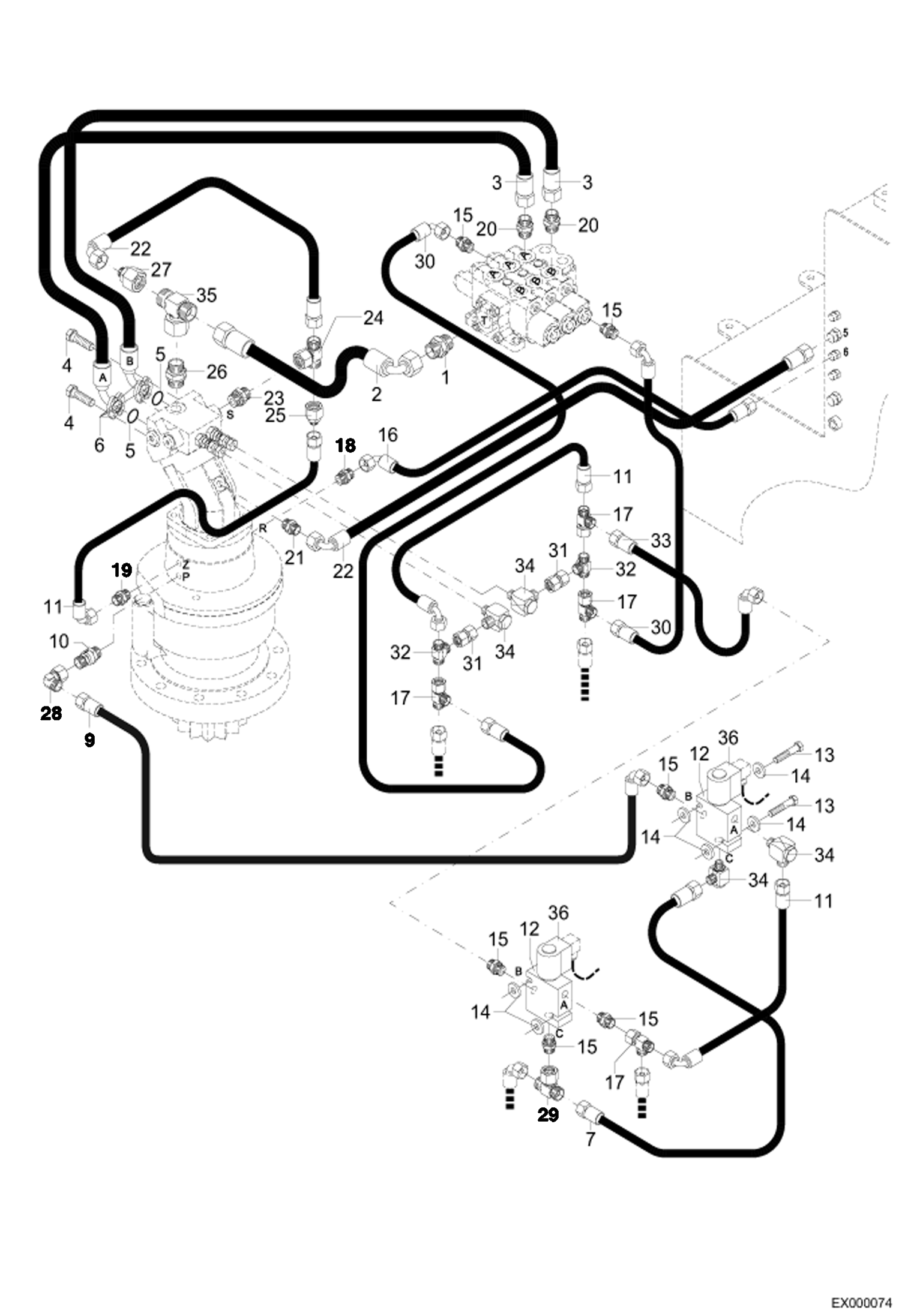

Запчасти Bobcat 444 SLEW EQUIPMENT HYDRAULIC INSTALLATION

1

1915060266

FITTING

2

4120041156

HOSE

3

4262085396

HOSE PIPE

4

1008707324

BOLT

5

1971956318

O-RING

6

5000587612

FLANGE; HALF

7

4506030240

HOSE

9

4506115351

HOSE ASSEMBLY CPL.

10

5260310280

ONE WAY VALVE

11

4256033371

HOSE, HYD Was 4506033351 - A

12

5320001001

CONTROL VALVE Includes Ref. 36

13

1008707115

BOLT

14

1343707055

WASHER

15

1915060255

FITTING

16

4506047351

HOSE

17

1919060351

FITTING

18

1915060784

FITTING

19

1915060783

FITTING

20

1915060264

FITTING

21

1915060560

FITTING

22

4110042374

HOSE

23

1915060562

FITTING

24

1919060153

FITTING

25

1934060154

FITTING

26

1915060667

FITTING

27

1934060168

FITTING

28

1924060151

FITTING

29

1919060151

FITTING

30

4506085351

HOSE

31

1915060157

FITTING

32

1939900908

TWO-WAY VALVE

33

4506072351

HOSE

34

1921060555

FITTING

35

1919060156

FITTING

36

5320001002

SOLENOID CARTRIDGE See Illustration MACHINE ELECTRIC INSTALLATION/ EX000106
