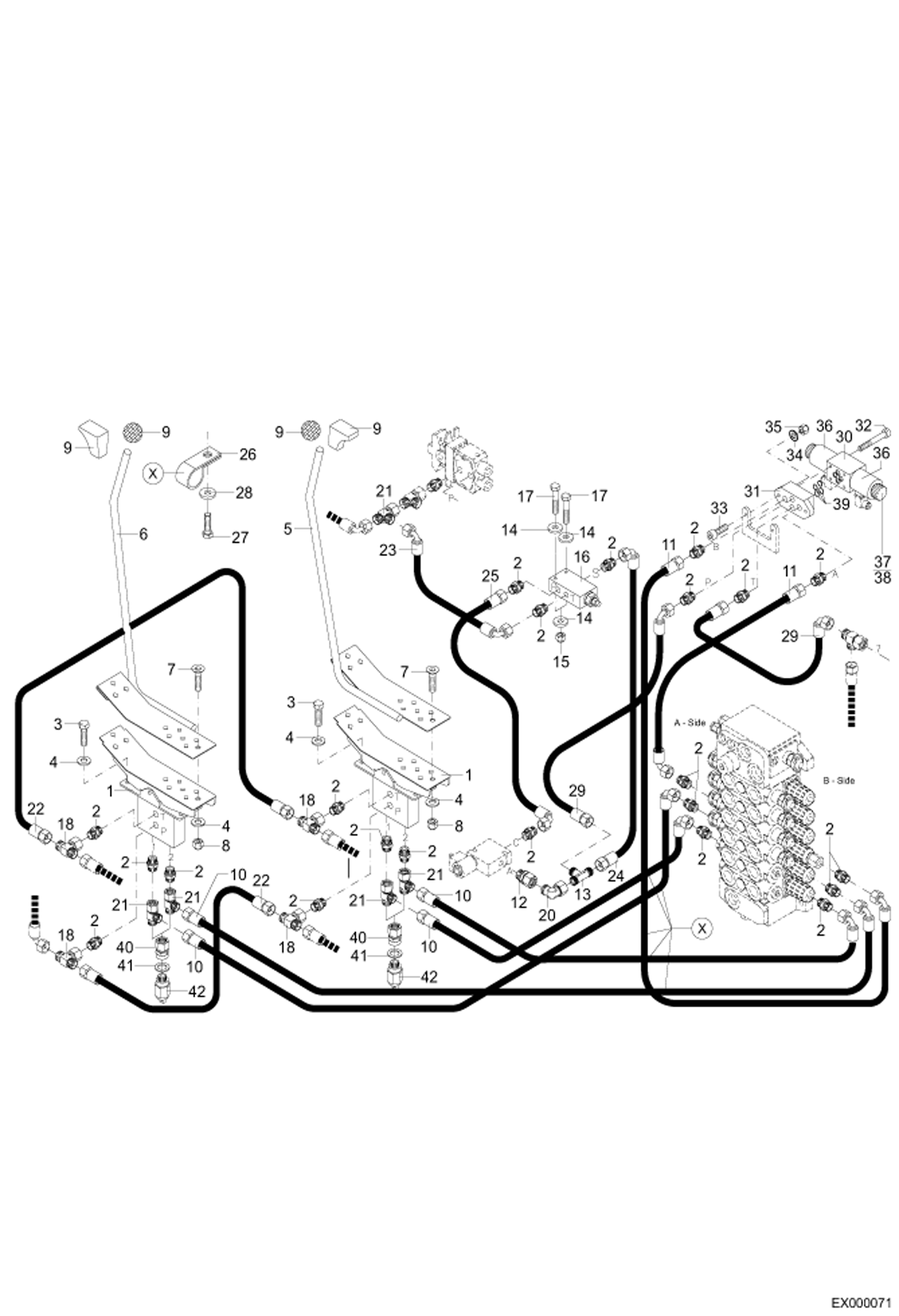

Запчасти Bobcat 444 PILOT CONTROL - TRAVEL, ADDITIONAL OUTLET HYDRAULIC INSTALLATION

1

5606658700

REMOTE CONTROL

2

1915060255

FITTING

3

1008707018

BOLT

4

1290707018

WASHER

5

6190008060

PEDAL

6

6190008062

PEDAL

7

1069907817

BOLT

8

1212251011

NUT

9

1541930726

BALL KNOB

9

1576000512

HANDLE

10

4506270371

HOSE

11

4506180351

HOSE

12

1938060151

SCREW NECK

13

1939900908

TWO-WAY VALVE

14

1343707055

WASHER

15

1212251009

NUT

16

5520656608

PRESSURE REDUCER

17

1007707414

BOLT

18

1919060151

FITTING

20

1924060151

FITTING

21

1919060351

FITTING

22

4506030240

HOSE

23

4256033371

HOSE, HYD Was 4506033351 - A

24

4506085351

HOSE

25

4506060351

HOSE

26

5000210462

HOSE CLIP

27

1008707817

BOLT

28

1343707057

WASHER

29

4506140371

HOSE

30

5003700001

DIRECT CONTR. VALVE Includes Ref. 36 to 39

31

5003700003

CONNECTING PLATE

32

1045907011

BOLT

33

1045707513

BOLT

34

1290707014

WASHER

35

1212251009

NUT

36

5003700025

COIL

37

5003700026

NUT W/SEAL Includes Ref. 38

38

1970956810

O-RING

39

5003700027

SEAL KIT

40

1943000101

CONNECTION

41

1636815155

SEAL RING

42

5050143175

PRESSURE SWITCH
