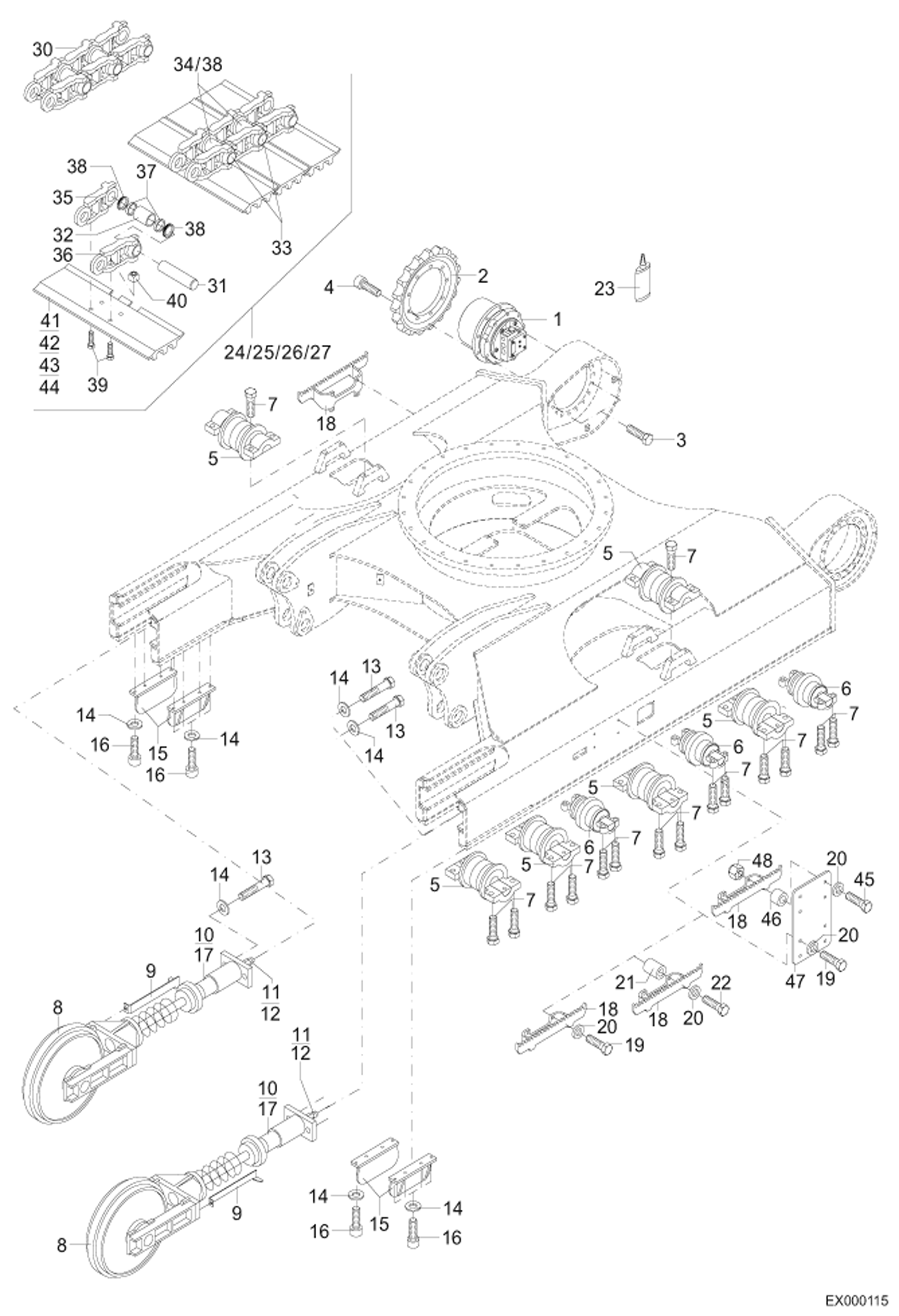

Запчасти Bobcat 444 TRACK VERSION, STEEL TRACKS DRIVE SYSTEM

1

5459660215

TRAVEL DRIVE

2

5671658504

SPROCKET

3

1008907241

BOLT Secure with SCHAEFFLOCK 2042

4

1045907441

BOLT Secure with SCHAEFFLOCK 2042

5

5671658502

ROLLER

6

5671658535

ROLLER

7

1007707641

BOLT Secure with SCHAEFFLOCK 2042

8

5671658498

IDLER

9

6207502015

POINTER

10

5671658506

TRACK TENSION Includes Ref. 17

11

5382211542

NIPPLE

12

1955005118

SEAL RING

13

1008707430

BOLT

14

1290707022

WASHER

15

6190002060

IDLER COVER

16

1045707829

BOLT

17

5671658512

SEAL KIT

18

6207502016

ASCENT Option Includes Ref. 24 to 27

19

1008707923

BOLT Option Includes Ref. 24 + 25

20

1290707020

WASHER Option Includes Ref. 24 to 27

21

0207801020

SPACER Option Includes Ref. 26 + 27

22

1007707026

BOLT Option Includes Ref. 26 + 27

23

MCS001035A

GLUE

24

5382660376

STEEL TRACK Includes Ref. 30 + 39 to 41

25

5671658549

STEEL TRACK Includes Ref. 30 + 39 + 40 + 42

26

5671658547

STEEL TRACK Includes Ref. 30 + 39 + 40 + 43

27

5671658541

STEEL TRACK Includes Ref. 30 + 39 + 40 + 44

30

5671660284

STEEL TRACK Includes Ref. 31 to 38

31

5671660273

MASTER PIN

32

5671660274

TRACK BUSHING

33

5671660275

PIN

34

5671660276

TRACK BUSHING

35

5671660277

TRACK LINK LEFT

36

5671660278

TRACK LINK RIGHT

37

5671660271

SPACER RING

38

5671660272

SEAL

39

5671660282

BOLT

40

5671660283

NUT

41

5671660281

GROUSER

42

5671660299

GROUSER

43

5671660300

GROUSER

44

5671660301

GROUSER

45

1007707025

BOLT Includes Ref. 25

46

0209124023

DISTANCE SLEEVE Includes Ref. 25

47

0207803015

BRACKET Includes Ref. 25

48

1212251013

NUT Includes Ref. 25
