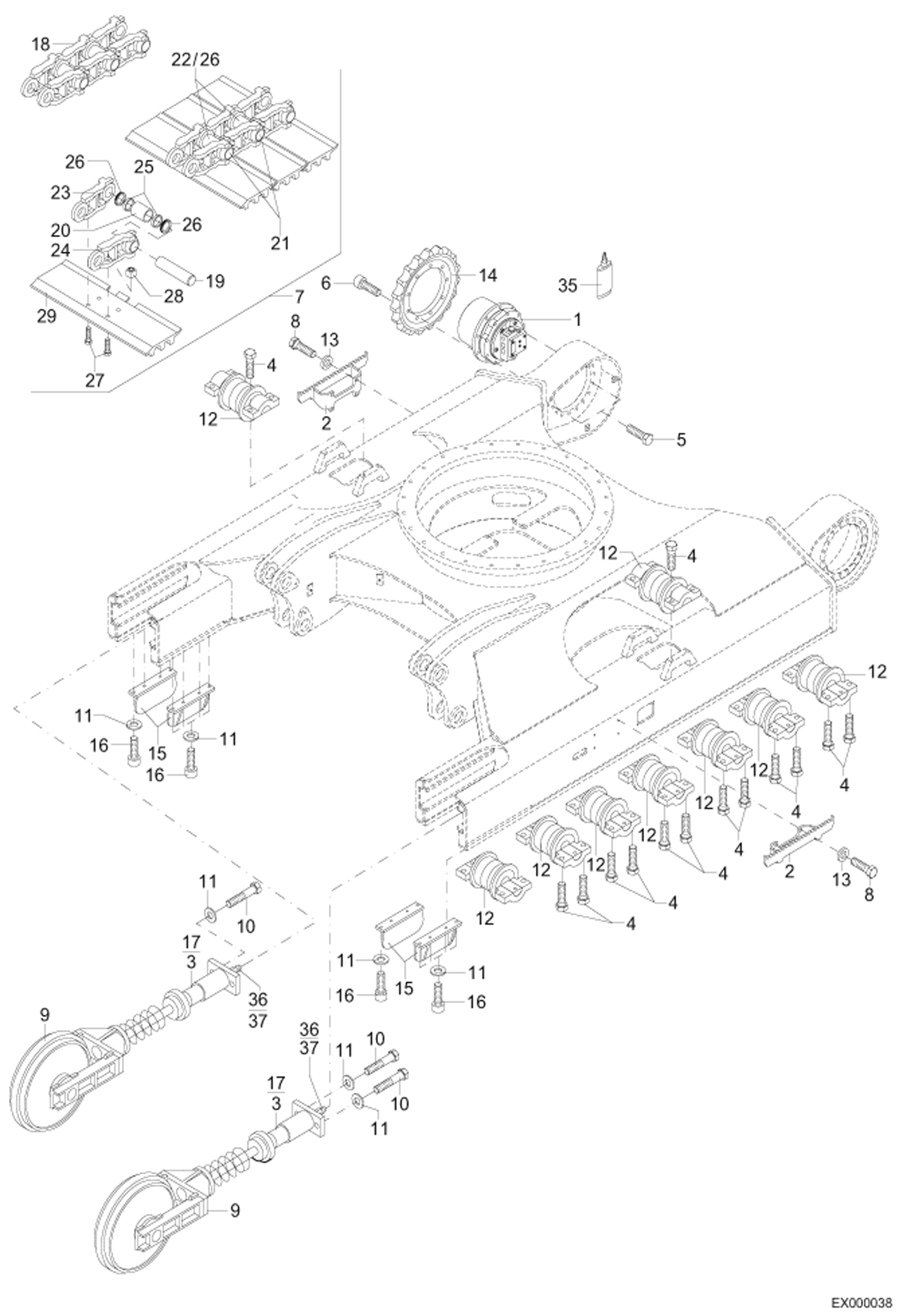

Запчасти Bobcat 444 TRACK VERSION, STEEL TRACK DRIVE SYSTEM

1

5459660215

TRAVEL DRIVE

2

6207502016

ASCENT

3

5671658506

TRACK TENSION

4

1007707641

BOLT Secure with SCHAEFFLOCK 2042

5

1008907241

BOLT Secure with SCHAEFFLOCK 2042

6

1045907441

BOLT Secure with SCHAEFFLOCK 2042

7

5382660376

STEEL TRACK Includes Ref. 18 + 27 + 28 + 29

8

1008707923

BOLT

9

5671658496

IDLER

10

1008707430

BOLT

11

1290707022

WASHER

12

5671658502

ROLLER

13

1290707020

WASHER

14

5671658504

SPROCKET

15

6190002060

IDLER COVER

16

1045707829

BOLT

17

5671658512

SEAL KIT

18

5671660284

STEEL TRACK

19

5671660273

MASTER PIN

20

5671660274

TRACK BUSHING

21

5671660275

PIN

22

5671660276

TRACK BUSHING

23

5671660277

TRACK LINK LEFT

24

5671660278

TRACK LINK RIGHT

25

5671660271

SPACER RING

26

5671660272

SEAL

27

5671660282

BOLT

28

5671660283

NUT

29

5671660281

GROUSER

35

MCS001035A

GLUE

36

5382211542

NIPPLE

37

1955005118

SEAL RING
