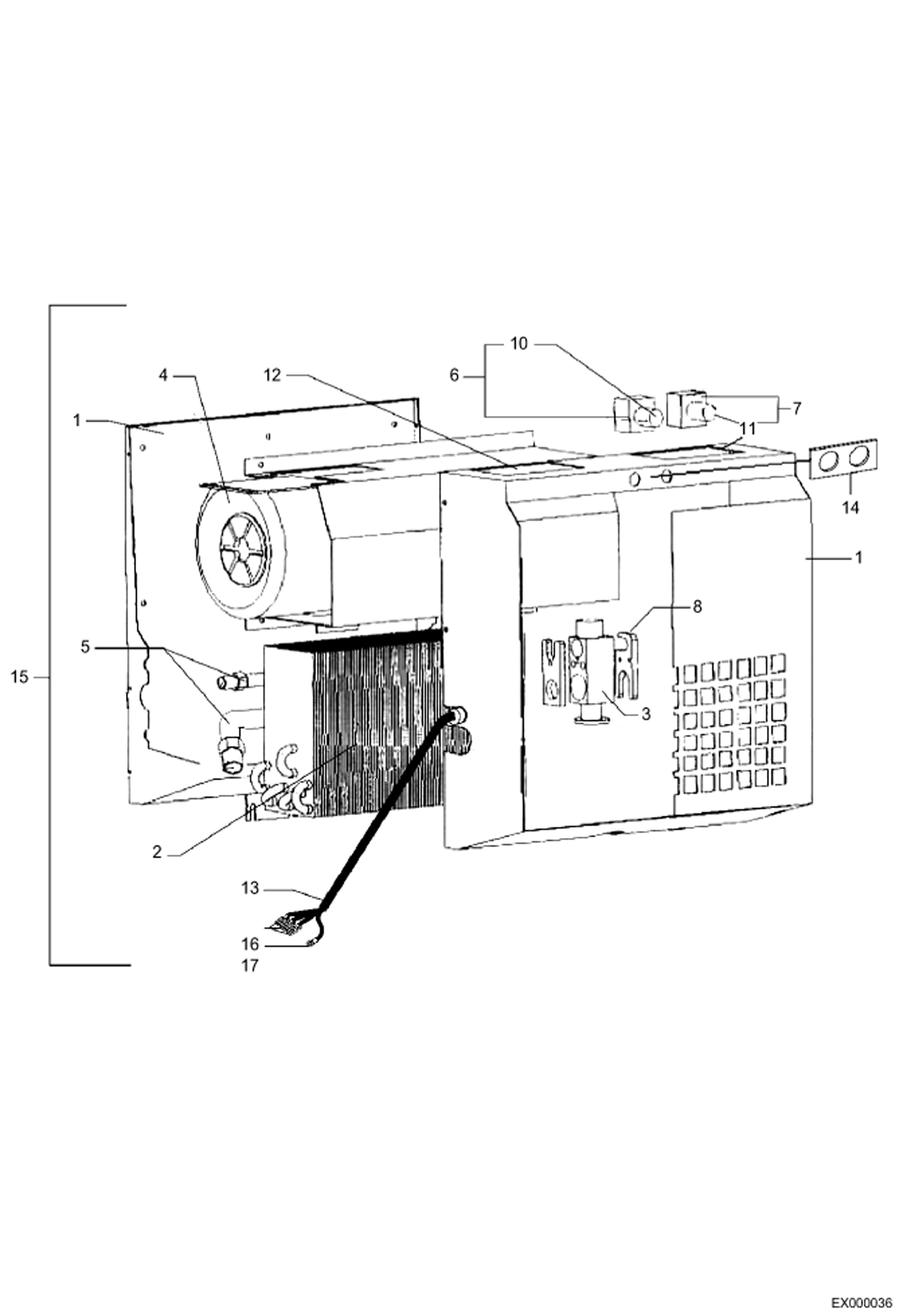

Запчасти Bobcat 444 AIR-CONDITIONING - EVAPORATOR G 55 S 90 DEGREE MAIN FRAME

1

5436662020

HOUSING

2

5436662019

EVAPORATOR COIL

3

5436662022

VALVE

4

5436662028

BLOWER

5

5436662039

TUBING KIT See Illustration AIR CONDITIONER/ EX000035

6

5436662025

THERMOSTAT

7

5436662027

SWITCH

8

5436662024

PLATE

10

5436662029

BUTTON

11

5436662030

BUTTON

12

5436662018

AIR NOZZLE

13

5436662026

WIRE HARNESS

14

5436662031

COVER

15

5436662033

EVAPORATOR Includes Ref. 1 to 14

16

5350249552

CONNECTOR

17

5350246610

CABLE CONNECTOR
