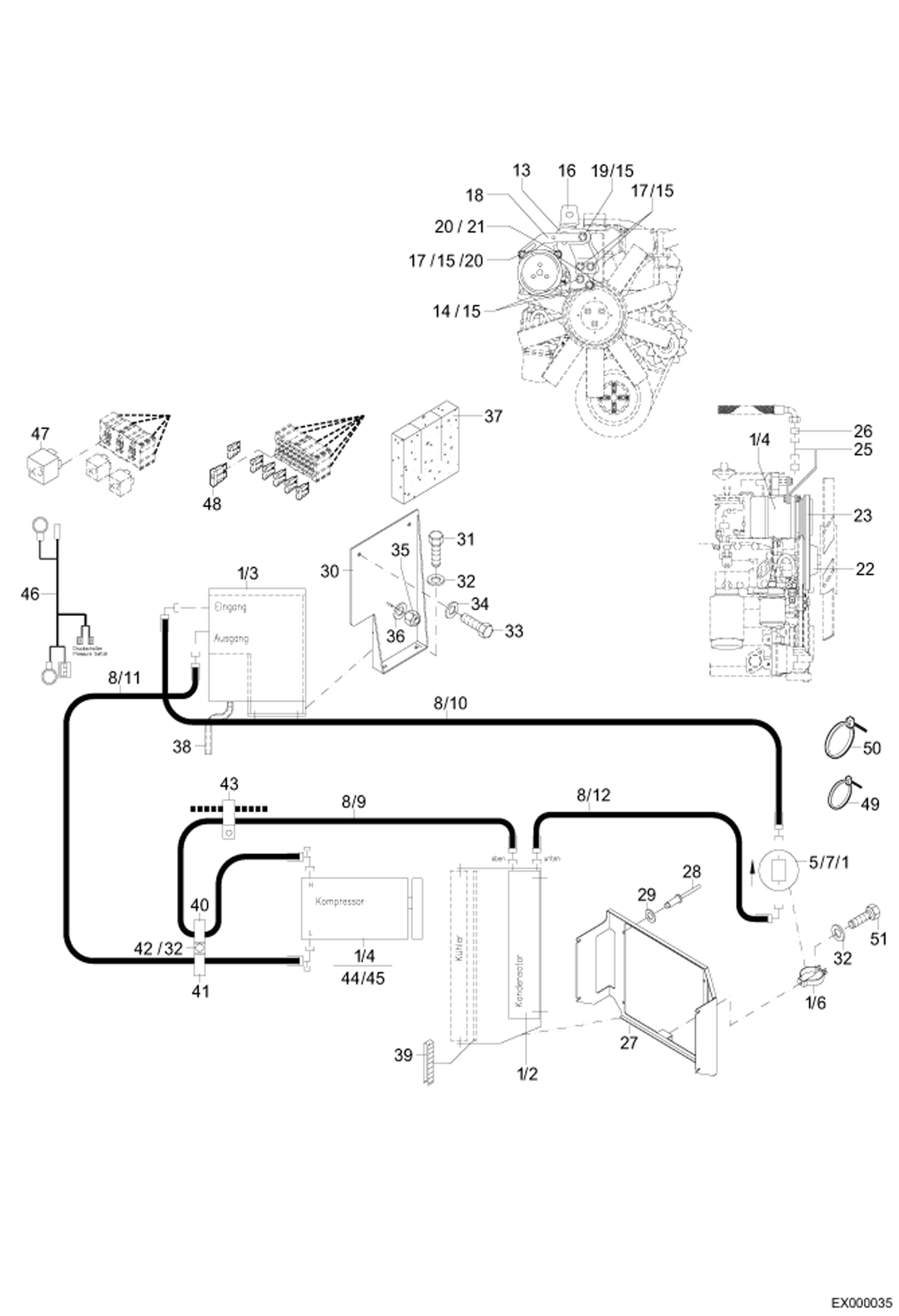

Запчасти Bobcat 444 AIR CONDITIONER MAIN FRAME

1

0207772050

AIR CONDITIONER Includes Ref. 1 to 8

2

5436662036

CONDENSER, A/C

3

7022922

EVAPORATOR Was 5436662033 - A

4

5436662003

COMPRESSOR, A/C

5

5436662004

DRIER, A/C ASSY

6

5436662005

BRACKET

7

5436662006

PRESSURE SWITCH

8

0190272051

HOSE SET Includes Ref. 9 to 12

9

5436662012

HOSE

10

5436662011

HOSE

11

5436662013

HOSE

12

5436662010

HOSE

13

6209771020

BRACKET

14

1008707324

BOLT

15

1343707059

WASHER

16

0209771010

BRACKET

17

1008707424

BOLT

18

6190271010

LEVER

19

1008707923

BOLT

20

1212251013

NUT

21

1007707625

BOLT

22

6209771007

V-BELT DRIVE CPL.

23

1490953883

V-BELT

25

1915060161

FITTING

26

1915060858

FITTING

27

6207772030

BRACKET

28

1940000939

RIVET

29

1307707012

WASHER

30

6183772012

BRACKET

31

1008707018

BOLT

32

1343707057

WASHER

33

1008707213

BOLT

34

1290707014

WASHER

35

1212251009

NUT

36

1343707055

WASHER

37

0190371015

INSULATION

38

0465515052

HOSE

39

5354600010

RUBBER PROFILE

40

5000136820

HOSE CLIP

41

5000210400

HOSE CLIP

42

1007707719

BOLT

43

5000210450

HOSE CLIP

44

1008707923

BOLT

45

1212251013

NUT

46

0190272020

HARNESS

47

5050247318

MICRO RELAY

48

5050650266

FUSE

49

5653093560

BINDER

50

5350650280

BINDER

51

1008707318

BOLT
