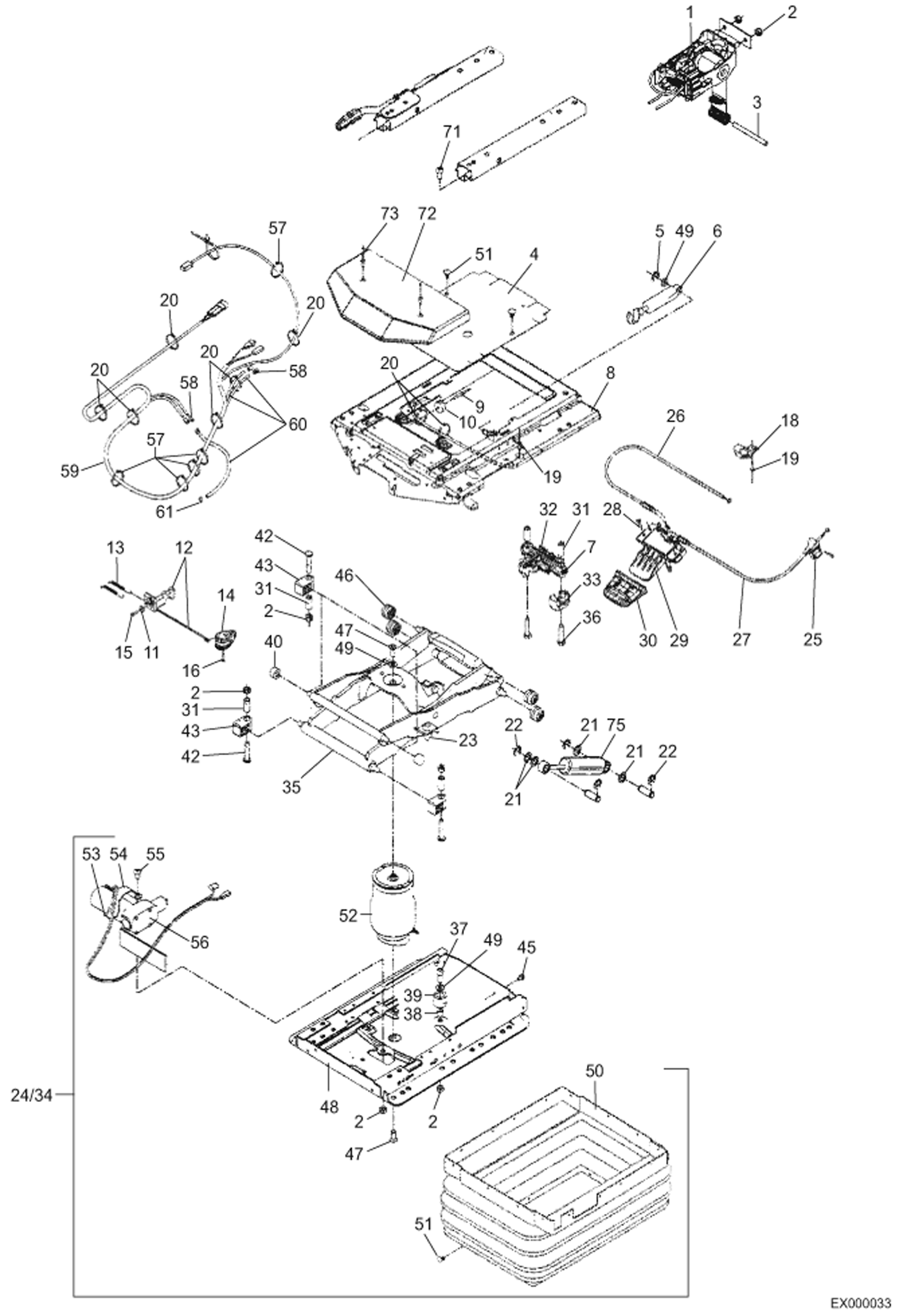

Запчасти Bobcat 444 SEAT - SUSPENSION - MSG95 MAIN FRAME

1

5305670045

LEVEL CONTROL Includes Ref. 2 + 3 + 15 + 20 + 25 + 45 + 51 + 57 + 58

2

5305655472

NUT

3

5305670160

PIN

4

5305670046

COVER

5

5305670228

WASHER

6

5305670047

GAS PRESSURE SPRING Includes Ref. 5 + 49 + 51

7

5305670048

BUSHING

8

5305670049

BRACKET ASSY SEAT Includes Ref. 2 + 10 + 12 + 19 + 40 + 46 + 51

9

5305670161

RIVET

10

5305670050

BUMPER CPL Includes Ref. 9

11

5305670209

WASHER

12

5305670162

STOP DEVICE CPL Includes Ref. 11 + 13 + 14 + 15 + 51

13

5305670163

TENSION SPRING

14

5305670164

HANDLE CPL Includes Ref. 16

15

5305670227

BOLT

16

5305670166

BOLT

18

5305670167

STOP CPL Includes Ref. 19 + 51

19

5305670168

RIVET

20

5305670203

TIE STRAP

21

5305670169

WASHER

22

5305670131

WASHER

23

5305670029

STOP

24

5305670224

WEAR PARTS SET

25

5305670053

BRACKET

26

5305670054

BOWDEN CABLE Includes Ref. 28 + 51

27

5305670055

CABLE ASSY Includes Ref. 15 + 25 + 28 + 51

28

5305670026

BOLT

29

5305670056

CONTROL UNIT Includes Ref. 28 + 30 + 51

30

5305670057

HANDLE

31

5305670171

PIPE

32

5305670058

SPRING ASSY Includes Ref. 7 + 10 + 19 + 31 + 33 + 36 + 51

33

5305670059

BUMPER

34

5305670225

SUSPENSION

35

5305670226

ROCKER CPL Includes Ref. 2+19+20+23+31+40+43+46+47+49+51+55+57

36

1008707818

BOLT

37

1008707018

BOLT

38

5305670098

BUSHING

39

5305670229

BUMPER CPL Includes Ref. 2 + 37 + 38 + 49 + 51

40

5305670230

ROLLER

42

5305670174

PIN

43

5305670175

BEARING

45

5305670176

BOLT

46

5305670062

TRACK ROLLER

47

5305670177

BOLT

48

5305670178

SEAT BOTTOM ASSY Includes Ref. 2 + 20 + 39 + 43 + 45 to 47 + 51 + 55

49

5305670200

WASHER

50

5305670063

COVERING Includes Ref. 51

51

5305655425

PLUG

52

5305670064

GAS STRUT Includes Ref. 47 + 49 + 51 + 58 + 61

53

5305670179

RUBBER PAD

54

5305670180

BOW

55

1045707517

BOLT

56

5305670073

COMPRESSOR Includes Ref. 20 + 2 + 51 + 53 + 54 + 55 + 57 + 61

57

5305670232

BINDER

58

5305670066

BUSHING

59

5305670067

CABLE Includes Ref. 20 + 51 + 57

60

5305670068

HOSE ASSY Includes Ref. 20 + 51 + 57 + 58 + 61

61

5305670069

HOSE CLIP

71

5305670234

BOLT

72

5305670181

COVER Includes Ref. 73

73

5305670182

RIVET

75

5305670070

GAS STRUT Includes Ref. 21 + 22 + 51
