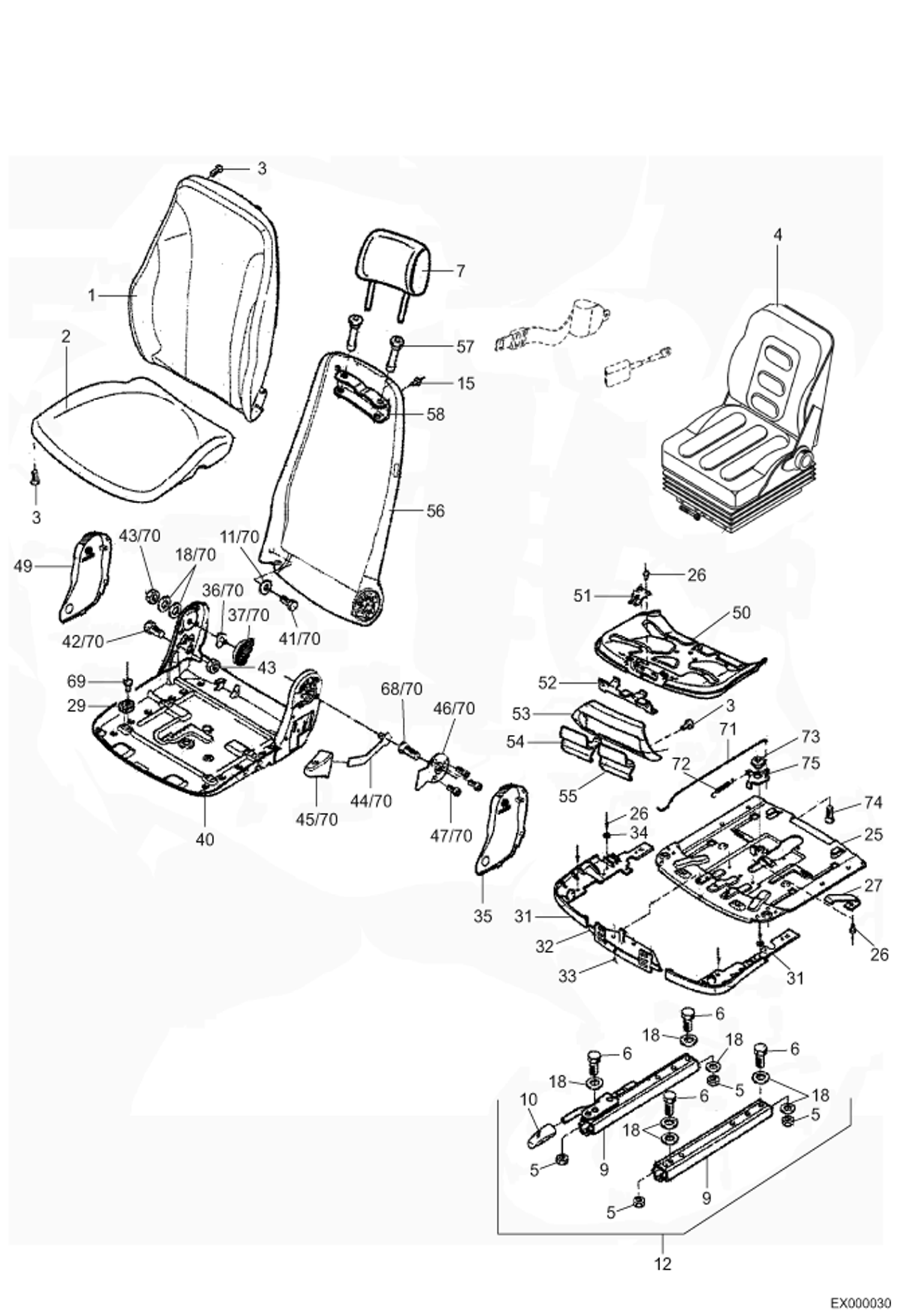

Запчасти Bobcat 444 SEAT - MSG85 MAIN FRAME

1

5305670188

CUSHION BACK REST Includes Ref. 3

2

5305670189

CUSHION SEAT Includes Ref. 3

3

5305670026

BOLT

4

5305661655

OPERATORS SEAT MSG85/7 See Illustration SEAT - SUSPENSION - MSG85/ EX000031

4

See Illustration SEAT - MSG95 WITH SEAT HEATING/ EX000032

5

1210707011

NUT

6

1008707817

BOLT

7

5305670101

HEADREST

9

5305670186

ADJUSTING RAIL Includes Ref. 10

10

5305670190

HANDLE

11

5305670104

WASHER

12

5305670191

MOUNTING PARTS Ref. 5, 6, 11 & 18

15

5305670134

RIVET

18

5305670200

WASHER

25

5305670137

PLATE W/Ref. 26, 27 & 32

26

5305670138

RIVET

27

5305670139

SUSPENSION PLATE

29

5305670140

SLIDING BLOCK

31

5305670141

COVER W/Ref. 26 & 34

32

5305670032

HANDLE Includes Ref. 33

33

5305670142

RIVET

34

1307707010

WASHER

35

5305670033

COVER Was 5305670033 - A

36

5305670143

BEARING

37

5305670034

SPRING

40

5305670144

SEAT PLATE ASSY W/Ref. 29 & 69

41

1008707019

BOLT

42

1008707318

BOLT

43

1212251011

NUT

44

5305670035

LEVER

45

5305670036

HANDLE

46

5305670037

ADAPTER PLATE

47

5305670038

BOLT

49

5305670282

COVER RIGHT Was 5305670039 - A

50

5305670193

ROCKER W/Ref. 3 & 51

51

5305670146

SUSPENSION PLATE Includes Ref. 26

52

5305670040

LEVER

53

5305670147

COVER Includes Ref. 3

54

5305670041

HANDLE Includes Ref. 71

55

5305670042

HANDLE

56

5305670194

BACK REST W/Ref. 15 & 63

57

5305670149

SLEEVE

58

5305670150

BRACKET

68

5305670152

BOLT

69

5305670153

RIVET

70

5305670154

MOUNTING PARTS BACKR W/Ref. 11, 18, 36, 37, 41-47 & 68

71

5305670155

ROD

72

5305670043

SPRING

73

5305670156

RING

74

5305670157

BOLT

75

5305670195

LEVER W/Ref. 72-74
