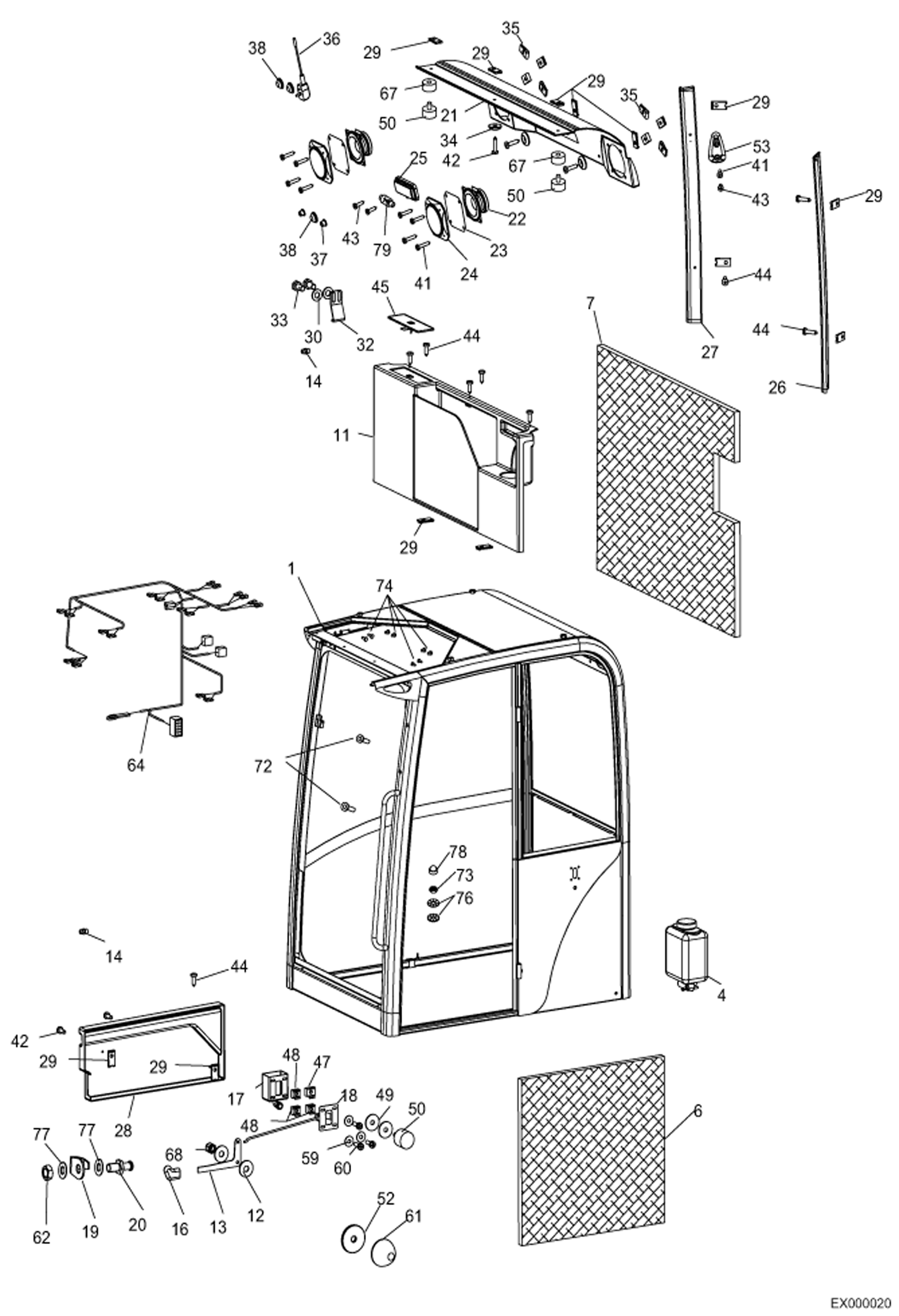

Запчасти Bobcat 444 CAB EQUIPMENT 1 CAB - S/N 202.031.069 & Below MAIN FRAME

1

OPERATOR CAB See Illustration CAB GLASSES/ EX000016

4

5388662574

RESERVOIR

6

5388665070

INSULATION

7

5388665069

INSULATION

11

5388662938

COVERING

12

1307707018

WASHER

13

5388662939

HANDLE

14

1607003006

GREASE NIPPLE

16

5388662587

BUTTON,PLASTIC

17

5388662222

HOUSING

18

5388662143

DOOR LOCKING includes cable

19

5388661433

GUIDE

20

5388661473

COTTER

21

5388662940

COVERING

22

5388662550

LOUDSPEAKER

23

5388662814

DUST PROTECTION

24

5388662575

LOUDSPEAKER COVER

25

5388662690

INTERIOR LIGHT

26

5388662941

COVER

27

5388662942

COVER

28

5388662943

COVER

29

5388662515

CLIP

30

1290707018

WASHER

32

5388662944

HOLDER

33

5388662829

BOLT

34

5388662047

WASHER

35

5388662687

CLIP

36

5388664003

AERIAL

37

5388662794

CAP

38

5388662057

PLUG

41

5388662945

BOLT

42

5388662046

BOLT

43

5388662796

BOLT

44

5388661435

BOLT

45

5388662471

COVER

47

5388662599

NUT

48

5388662284

NUT

49

5388662071

WASHER

50

5388662947

STOP

52

5388661442

WASHER

53

5388661443

HOOK

59

5388662925

WASHER

60

5388662776

BOLT

61

5388661476

RUBBER BLOCK

62

5388662090

NUT

64

5388665026

HARNESS

67

5388662777

SPACER RING

68

1212251011

NUT

72

5388665062

NUT

73

5388665048

NUT

74

5388665047

NUT

76

1290707014

WASHER

77

5388662089

WASHER

78

5388662051

CAP

79

1814000101

BULB Includes Ref. 25
