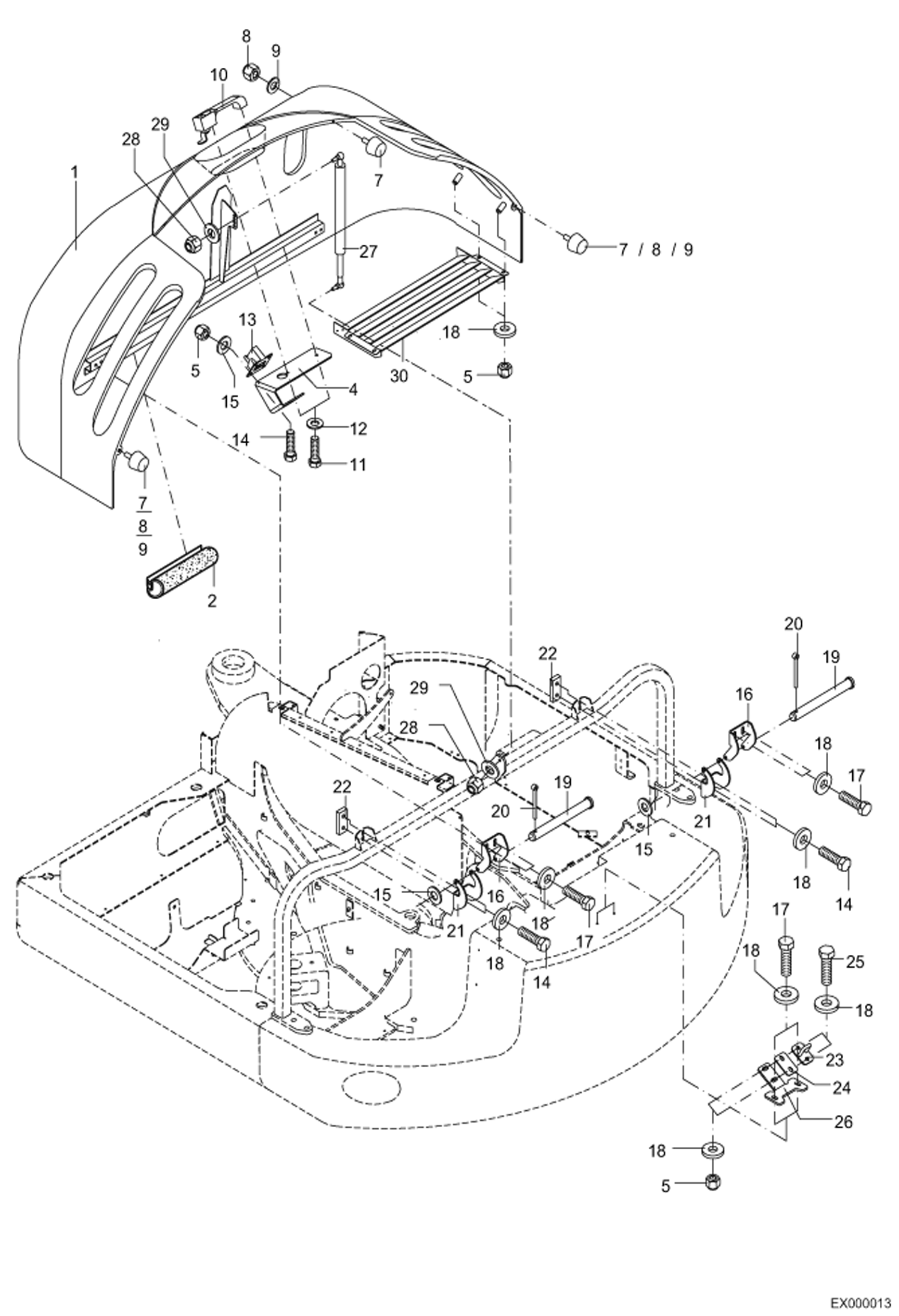

Запчасти Bobcat 444 BACK HOOD MAIN FRAME

1

5529020095

HOOD,BACK Was 0207528006 - A

2

7025098

SEAL, BULK/MTR - A

4

6190028030

BRACKET

5

1212251011

NUT

7

5101290955

STOP

8

1212251009

NUT

9

1307707014

WASHER

10

5354604442

PLASTIC HANDLE

11

1008707712

BOLT

12

1290707014

WASHER

13

5354604335

HOOD LATCH

14

1008707018

BOLT

15

1290707018

WASHER

16

6190028029

HINGE

17

1008707318

BOLT

18

1343707057

WASHER

19

1360707139

PIN

20

1395707017

COTTER PIN

21

6190028028

HINGE

22

0187528017

THREADED PLATE

23

5354604338

COTTER

24

6176028067

FLAP

25

1008707618

BOLT

26

6190028032

ANGLE PLATE

27

5696636591

GAS PRESSURE SPRING

28

1212251013

NUT

29

1290707020

WASHER

30

6207528090

GRID
