Запчасти Bobcat 444 DIESEL OPERATED HEATING (Mounting Kit) POWER UNIT

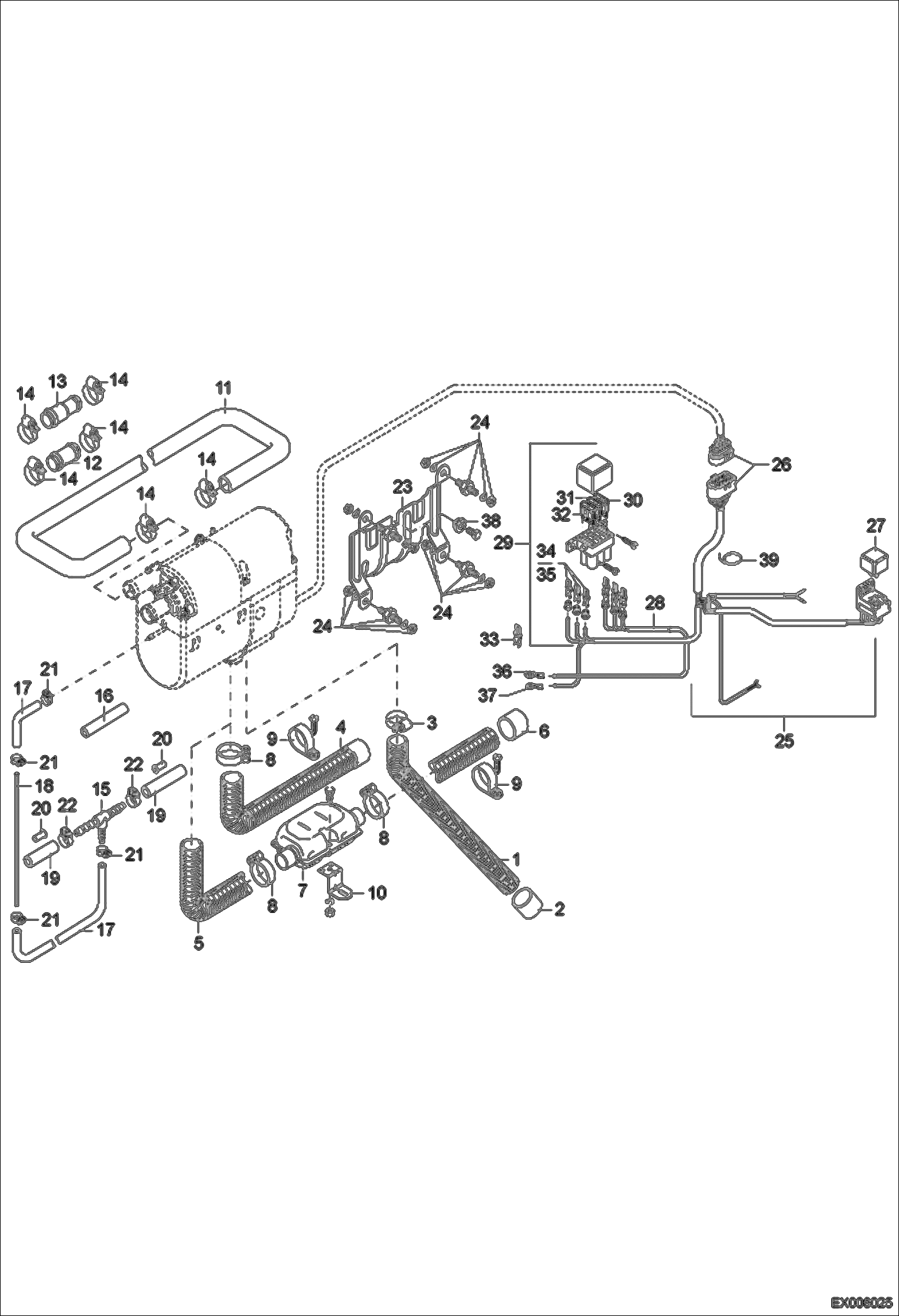

Схема запчастей Bobcat 444 - DIESEL OPERATED HEATING (Mounting Kit) POWER UNIT

Артикул

Название

Примечание

Количество

1

5206659983

PIPE, FLEXIBLE

2

5206660318

SLEEVE

3

5603320315

CLIP

4

5206660349

HOSE, EXHAUST

5

5206660488

PIPE, FLEXIBLE

6

5206660360

SLEEVE

7

5206660319

MUFFLER

8

5206660265

PIPE CLIP

9

5206660266

CLIP, PIPE

10

5206660366

BRACKET

11

5206660307

HOSE

12

5206660367

CONNECTION

13

5206660317

REDUCTION, PIECE

14

5206660295

CLIP, HOSE

15

5206660479

CONNECTOR, HOSE

16

5206660312

HOSE, M5X3

17

5206660480

HOSE, M3,5X3

18

5206660481

PIPE

19

5206660309

HOSE, FUEL 7,5X2,5

20

5206660353

BUSHING

21

5206660451

HOSE CLIP

22

5206660355

CLIP, HOSE

23

5206660313

HOLDER

24

5206660142

BUFFER, METAL RUBBER

25

5206660314

WASHER

26

5206660358

HOUSING, SOCKET CPL.

27

5206660484

RELAY, 12V

28

5206660485

HARNESS, WIRE

29

5206660361

FUSE, HOLDER CPL.

30

5206660362

FUSE, 25A 25A

31

5206660486

FUSE, 20A 20A

32

5206660390

FUSE, 5A 5A

33

5206660398

CONTACT, JPT AMP

34

5206660364

CONTACT, JPT AMP

35

5206660365

CONTACT, JPT AMP

36

5350249597

CABLE CONNECTOR

37

5350246610

CABLE CONNECTOR

38

5206660483

HARNESS, WIRE

39

5206660487

BINDER

Выбрано товаров: 39
