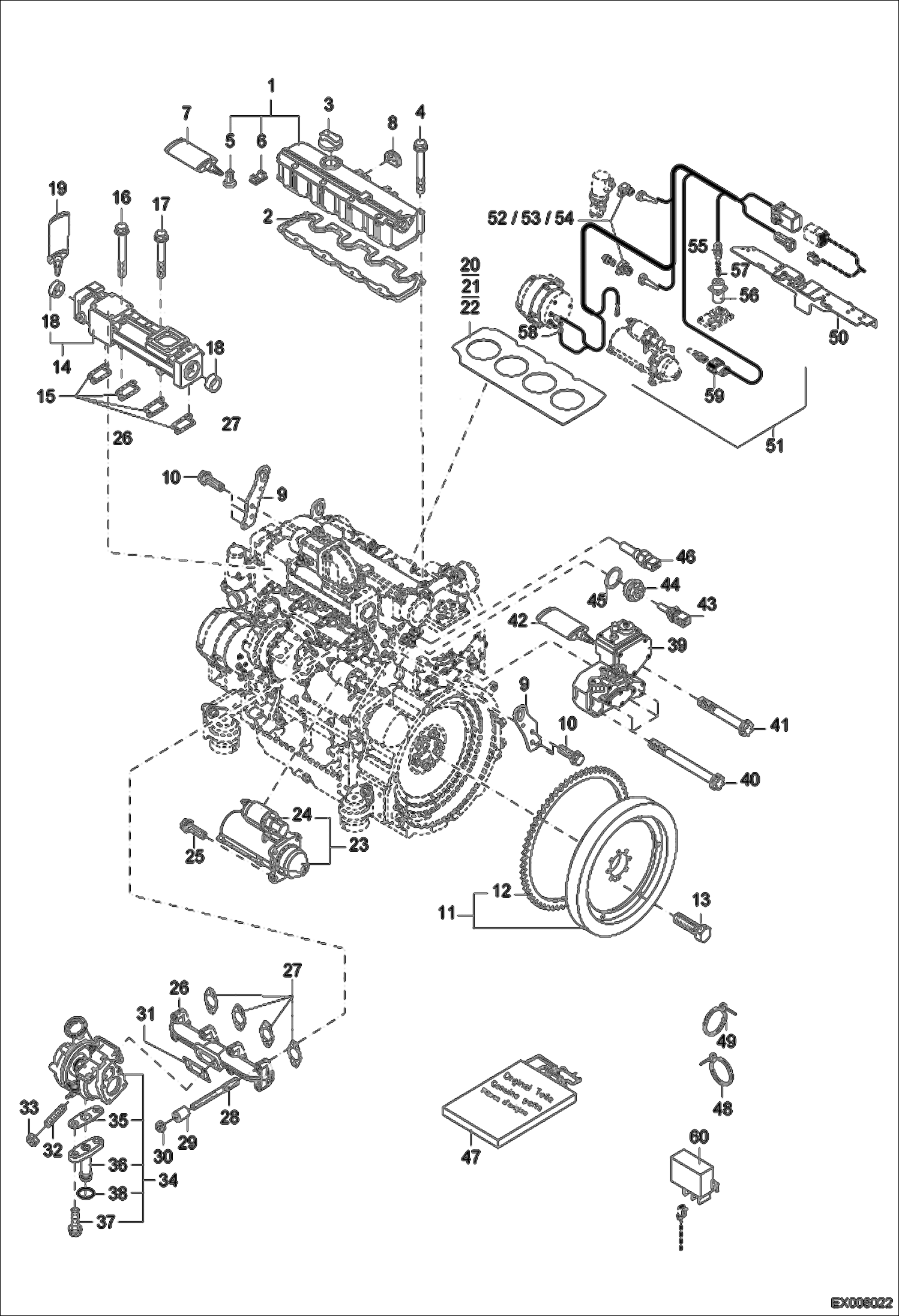

Запчасти Bobcat 444 ENGINE PARTS - PART 3 POWER UNIT

1

5411657062

VALVE COVER W/Ref. 5-6

2

5411657883

ENGINE OIL COOLER

3

5411656565

FILLER CAP

4

5411657832

BOLT

5

5411663102

NOZZLE

6

5411663103

CAP

7

5411657547

SAFETY LOCK

8

5411657447

RUBBER SEAL

9

5411663092

SUSPENSING PLATE

10

5411663172

BOLT

11

5411663473

FLYWHEEL W/Ref. 12

12

5411663154

GEAR

13

5411663298

BOLT

14

5411663883

CHARGE AIR PIPE W/Ref. 18

15

5411663091

SEAL

16

5411656872

BOLT

17

5411656721

BOLT

18

5411663075

COVER

19

5411657208

SAFETY LOCK

20

5411664393

CYLINDER HEAD GASKET A1.13

21

5411664394

CYLINDER HEAD GASKET A1.23

22

5411664395

CYLINDER HEAD GASKET A1.33

23

5411663187

STARTER W/Ref. 24

24

5411664506

RELAY

25

5411663544

BOLT

26

5411657840

EXHAUST MANIFOLD

27

5411663930

SEAL

28

5411663675

STUD

29

5411663550

SPACER SLEEVE

30

5411656966

NUT

31

5411667374

SEAL

32

5411664465

SHIM

33

5411656427

NUT

34

5411657984

TURBOCHARGER W/Ref. 35-38

35

5411664501

SEAL

36

5411664502

FLANGE

37

5411657214

BOLT

38

5411657388

O-SEAL

39

5411664489

CONTROLLER

40

5411663148

BOLT

41

5411663149

BOLT

42

5411657857

PACKING COMPOUND

43

5411663474

TRANSMITTER, TEMP.

44

5411657523

ADAPTERNIPPLE

45

5411657381

SEAL RING

46

5411663897

TEMP. TRANSMITTER

47

5411664516

GASKET SET (ENGINE)

48

5411663185

BINDER

49

5411657524

BINDER

50

5411664513

COVER PLATE

51

5411664514

CABLE HARNESS W/Ref. 52-59

52

5411657726

HOUSING (FEMALE)

53

5411657727

JACK

54

5411657728

GASKET

55

5411657729

GASKET

56

5411657730

BERARING HOUSING

57

5411657731

JACK

58

5411657732

CABLE LUG

59

5411663582

PLU-IN CONNECTOR

60

5411663184

RELAY
