Запчасти Bobcat 444 ENGINE PARTS - PART 2 POWER UNIT

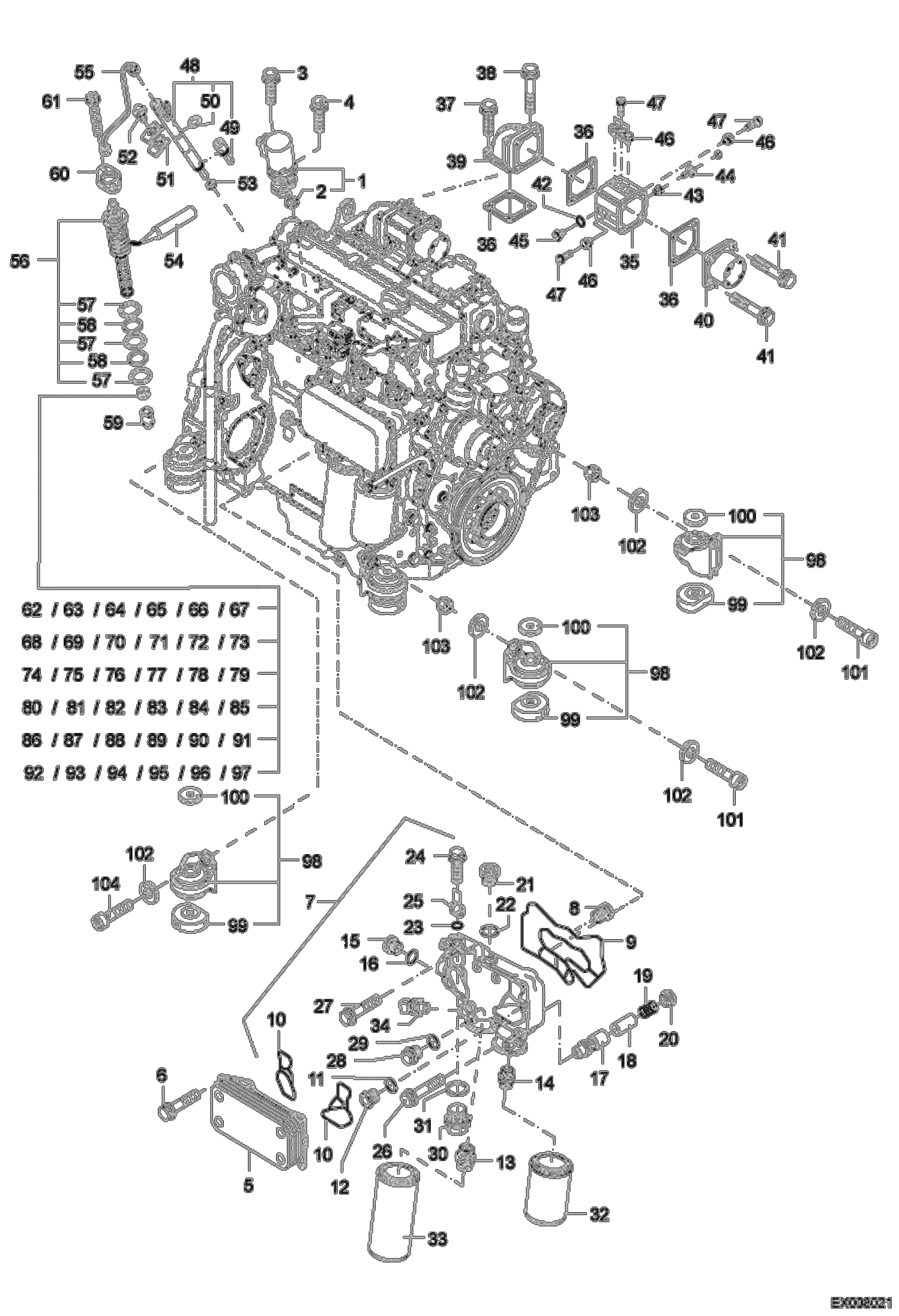

Схема запчастей Bobcat 444 - ENGINE PARTS - PART 2 POWER UNIT

Артикул

Название

Примечание

Количество

1

5411664515

ENGINE SHUT OFF W/Ref. 2

2

5411656866

SEAL

3

5411657521

BOLT

4

5411657214

BOLT

5

5411657883

ENGINE OIL COOLER

6

5411657457

BOLT

7

5411664396

OIL COOLER BOX W/Ref. 8-27

8

5411657456

BY-PASS COMPONENT

9

5411657843

GENERATOR

10

5411657837

GASKET

11

5411657307

SEAL RING

12

5411664397

BOLT

13

5411664398

FITTING

14

5411664399

FITTNING

15

5411657463

BLANKING END

16

5411657052

SEAL RING

17

5411664431

SEAL RING

18

5411664432

VALVE PLUNGER

19

5411664433

PRESSURE SPRING

20

5411664434

VALVE HEAD

21

5411657462

BLANKING END

22

5411657381

SEAL RING

23

5411657465

O-SEAL

24

5411657457

BOLT

25

5411664435

FLANGE

26

5411663427

BOLT

27

5411657893

BOLT

28

5411657468

BLANKING END

29

5411657198

SEAL RING

30

5411657467

BLANKING END

31

5411657373

SEAL RING

32

5411657146

FUEL FILTER

33

5411663335

ENGINGE OIL FILTER

34

5411663744

OIL PRESSURE SWITCH

35

5411657638

HEATER FLANGE

36

5411663115

GASKET

37

5411657379

BOLT

38

5411657207

BOLT

39

5411657114

CHARGE AIR ELBOW

40

5411657221

HOSE NIPPLE

41

5411657222

BOLT

42

5411657217

O-SEAL

43

5411657218

INSULATOR

44

5411657219

POSITIV POLE

45

5411657216

NEGATIV POLE

46

5411657213

INSULATOR

47

5411657212

BOLT

48

5411664474

FUEL INJECTOR W/Ref. 49-50

49

5411664475

NOZZLE ELEMENT

50

5411663344

O-RING

51

5411657975

CLAW

52

5411657409

BOLT

53

5411656458

SEAL RING

54

5411656806

MOUNTING DEVICE

55

5411656977

INJECTION PIPE

56

5411664438

INJECTION PUMP W/Ref. 57-58

57

5411656800

O-RING

58

5411656801

SHIM

59

5411664437

ROLLER TAPPET

60

5411657405

FLANGE

61

5411657406

BOLT

62

5411664439

SHIM 4.65 mm

63

5411664440

SHIM 4.70 mm

64

5411664441

SHIM 4.75 mm

65

5411664442

SHIM 4.80 mm

66

5411664443

SHIM 4.85 mm

67

5411663205

SHIM 4.90 mm

68

5411664444

SHIM 4.95 mm

69

5411664445

SHIM 5.00 mm

70

5411664446

SHIM 5.05 mm

71

5411664447

SHIM 5.10 mm

72

5411664448

SHIM 5.15 mm

73

5411664449

SHIM 5.20 mm

74

5411664450

SHIM 5.25 mm

75

5411664451

SHIM 5.30 mm

76

5411664452

SHIM 5.35 mm

77

5411664453

SHIM 5.40 mm

78

5411664454

SHIM 5.45 mm

79

5411664455

SHIM 5.50 mm

80

5411664456

SHIM 5.55 mm

81

5411664457

SHIM 5.60 mm

82

5411664458

SHIM 5.65 mm

83

5411664459

SHIM 5.70 mm

84

5411664460

SHIM 5.75 mm

85

5411664461

SHIM 5.80 mm

86

5411664462

SHIM 5.85 mm

87

5411664463

SHIM 5.90 mm

88

5411664464

SHIM 5.95 mm

89

5411664465

SHIM 6.00 mm

90

5411664466

SHIM 6.05 mm

91

5411664467

SHIM 6.10 mm

92

5411664468

SHIM 6.15 mm

93

5411664469

SHIM 6.20 mm

94

5411664470

SHIM 6.25 mm

95

5411664471

SHIM 6.30 mm

96

5411664472

SHIM 6.35 mm

97

5411664473

SHIM 6.40 mm

98

5411656412

ENGINE MOUNTING

99

5411664511

SPACER

100

5411656587

PLAIN WASHER

101

5411663480

SCREW

102

5411663329

WASHER

103

5411663330

NUT

104

5411664512

SCREW

Выбрано товаров: 104
