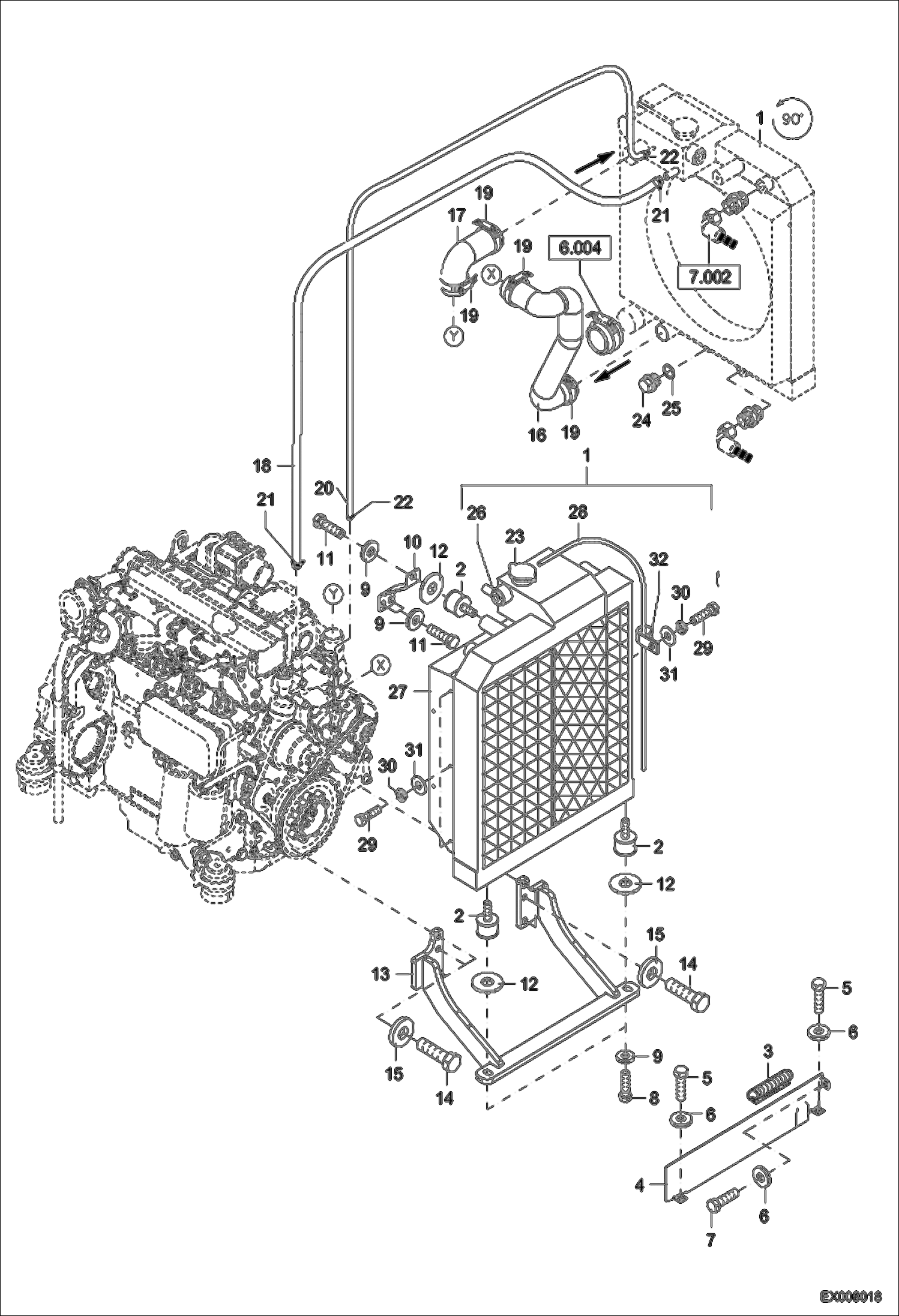

Запчасти Bobcat 444 COMBINED COOLER POWER UNIT

1

5010661101

COMBINED COOLER.CPL. W/Ref. 24-33

2

5101290968

RUBBER BASE

3

7025098

SEAL, BULK/MTR - A

4

6283415015

PLATE

5

1008707018

BOLT

6

1343707057

WASHER

7

1008707517

BOLT

8

1008707124

BOLT

9

1343707059

WASHER

10

6282815020

COOLER BRACKET

11

1008707423

BOLT

12

1299707020

WASHER

13

0283415020

COOLER BRACKET

14

1008907243

BOLT

15

1343707065

WASHER

16

5210657412

HOSE

17

5210657410

HOSE

18

5210657370

HOSE

19

5660095305

HOSE CLIP

20

0209515044

HOSE

21

5660199200

HOSE CLIP

22

5603320320

HOSE CLIP

23

5010663015

CAP

24

1150201615

PLUG

25

1636815432

SEAL RING

26

5010663038

SIGHT GAUGE

27

5010663181

VENTILATOR COVER

28

5010663156

HOSE

29

1008707018

BOLT

30

1321707018

SPRING WASHER

31

1307707018

WASHER

32

5000210399

HOSE
