Запчасти Bobcat 444 SEAT CONSOLE MAIN FRAME

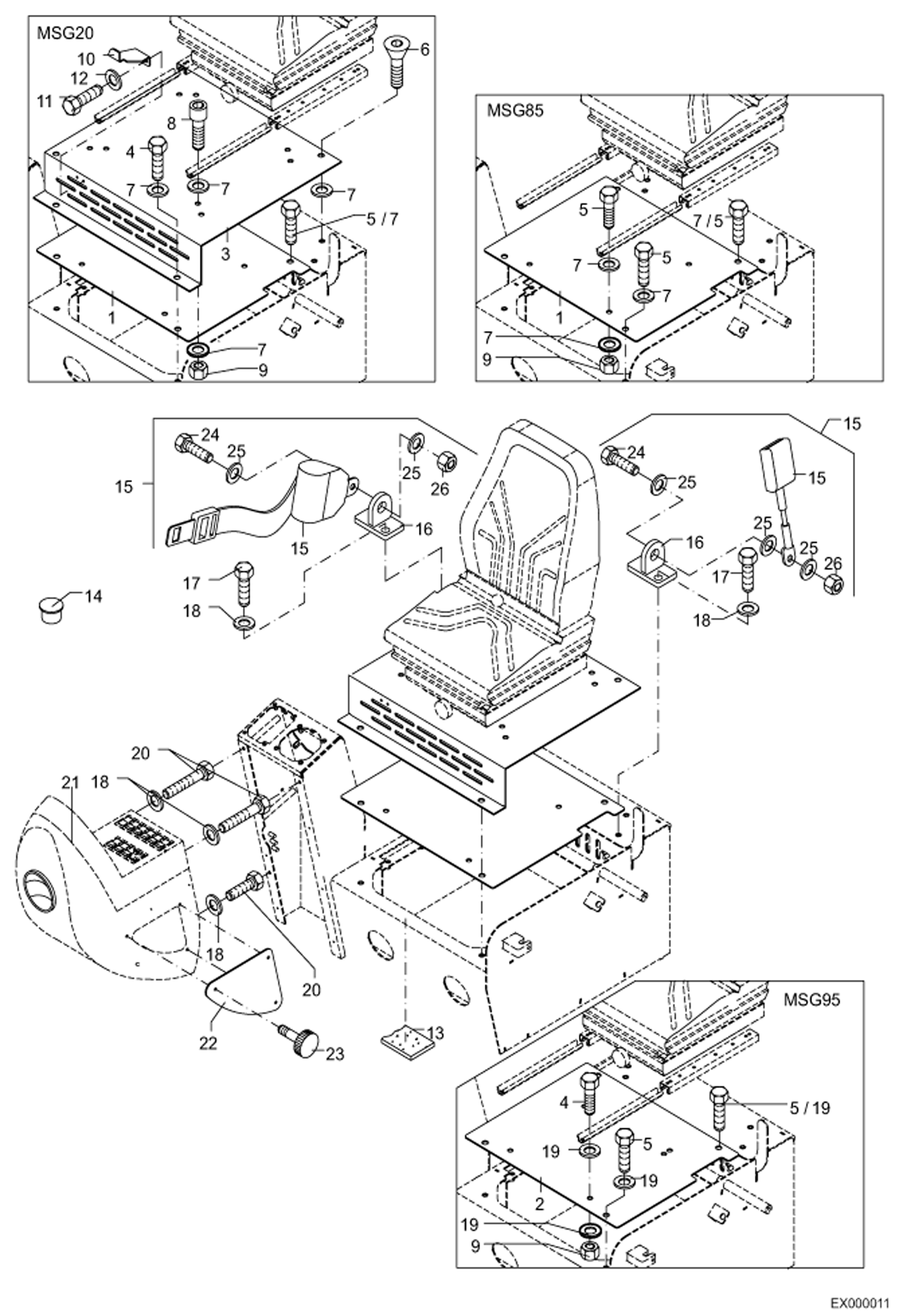

Схема запчастей Bobcat 444 - SEAT CONSOLE MAIN FRAME

Артикул

Название

Примечание

Количество

1

6190116005

SEAT CONSOLE

2

6190117001

SEAT CONSOLE Includes Ref. 1

3

6188827095

SEAT CONSOLE

4

1008707318

BOLT

5

1008707018

BOLT

6

1062707018

BOLT

7

1307707018

WASHER

8

1045707018

BOLT

9

1212251011

NUT

10

6188915005

BRACKET

11

1008707912

BOLT

12

1343707055

WASHER

13

5354640125

NEOPRENE STRIP

14

1980930494

PLUG

15

5305639665

SEAT BELT ASSY Includes Ref. 24 to 26 Option

16

6190267005

MOUNT Option

17

1008707318

BOLT

18

1290707018

WASHER

19

1343707057

WASHER

20

1045707121

BOLT

21

5821662100

HOUSING

22

5821662136

COVER

23

5821662038

KNURLED BOLT

24

BOLT

25

WASHER

26

NUT

Выбрано товаров: 26
