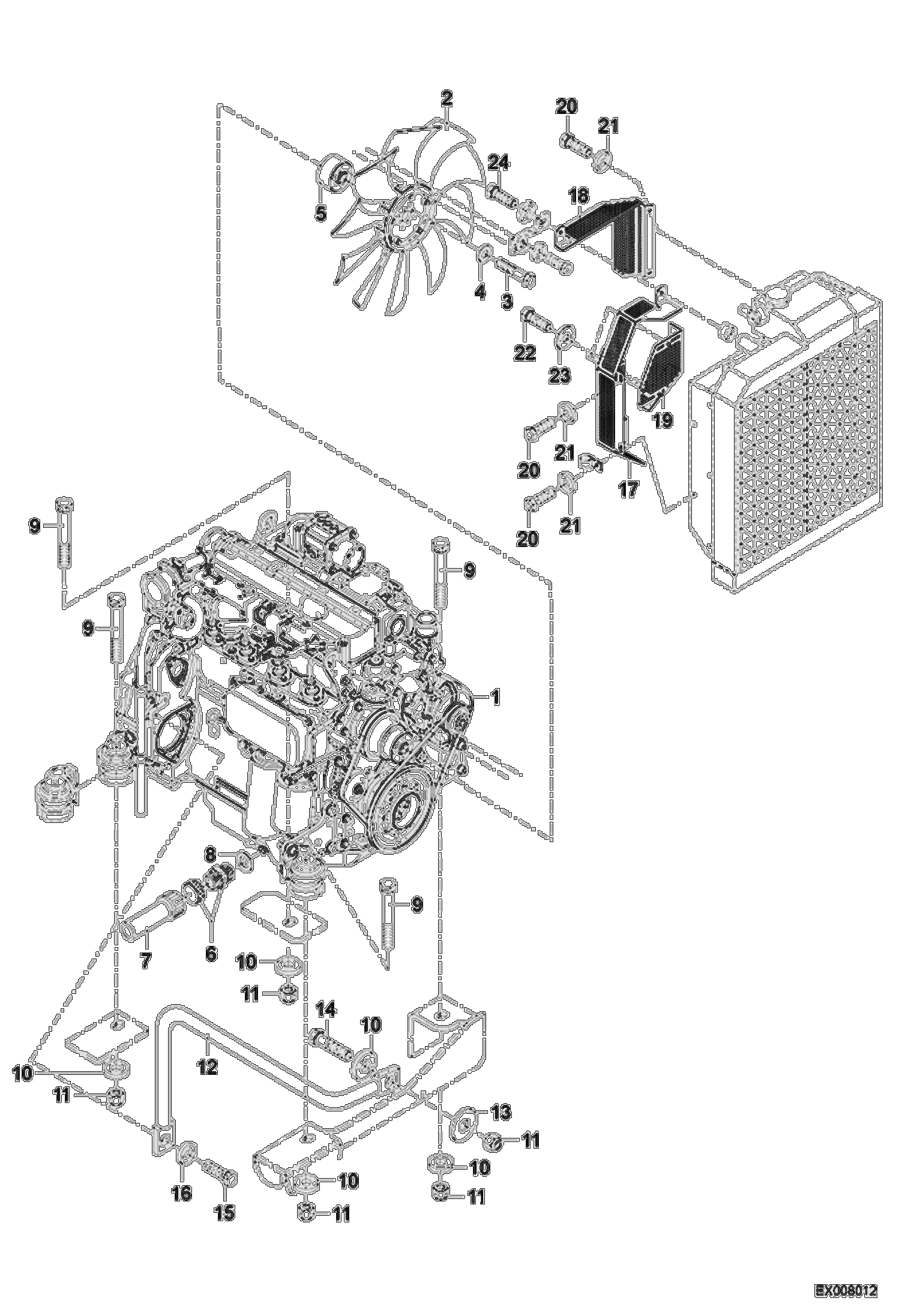

Запчасти Bobcat 444 ENGINE ASSEMBLY POWER UNIT

1

5411662521

DIESELMOTOR 2012 2012

2

5081659242

FAN (MULTIWING) multiwing

3

1008707819

BOLT M8X65

4

1290707018

WASHER

5

0247515070

ADAPTER

6

5366654555

DRAIN PLUG

7

5366654556

HOSE, DRAIN

8

1636815857

O-RING

9

1007707132

BOLT

10

1343707061

WASHER

11

1212251014

NUT

12

0209015020

CLIP

13

1298000027

WASHER

14

1008707230

BOLT

15

1008707623

BOLT

16

1343707059

WASHER

17

6239262212

FAN PROTECTION OPTION option

18

6239262213

FAN PROTECTION OPTION option

19

6239260005

FAN PROTECTION OPTION option

20

1008707018

BOLT option

21

1343707057

WASHER option

22

1008707213

BOLT option

23

1307707014

WASHER option

24

1008707124

BOLT option
