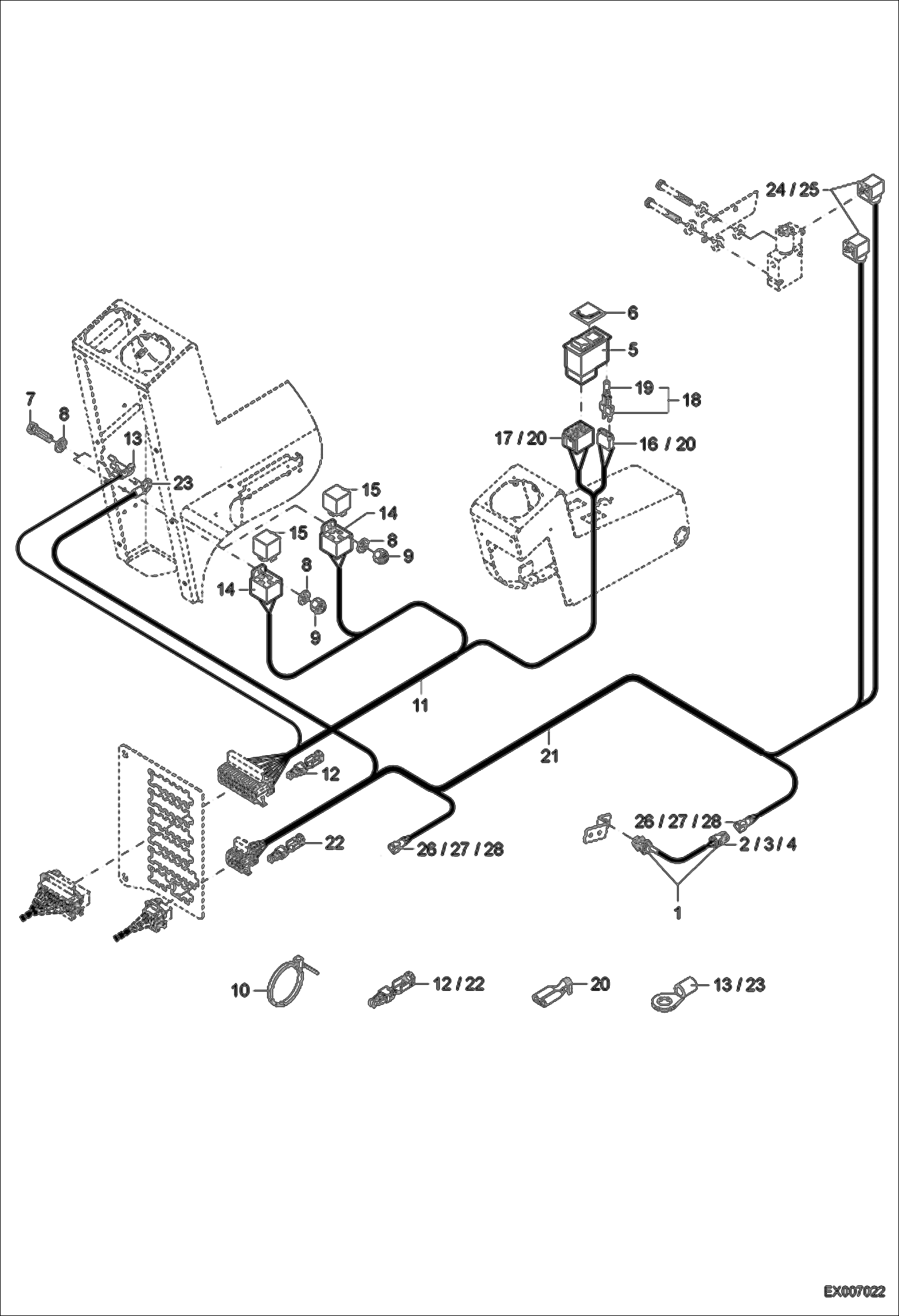

Запчасти Bobcat 444 BOOM HEIGHT LIMITATION - MONO BOOM ELECTRICAL SYSTEM

1

5350639017

SWITCH W/Ref. 2-4

2

5350555315

HOUSING (MALE)

3

5350555307

LOCK

4

5350555321

MALE TERMINAL

5

5050651363

ROCKER SWITCH

6

5358650266

SYMBOL boom height limitation

7

1008707909

BOLT

8

1290707012

WASHER

9

1212251007

NUT

10

5653093560

BINDER

11

0234241030

WIRE HARNESS W/Ref. 12-20 Was 0207741030 - A

12

5350249552

CONNECTOR

13

5350246610

CABLE CONNECTOR

14

5050093090

RELAY BRACKET

15

5050247335

RELAY

16

5050650231

HOUSING

17

5050650225

HOUSING

18

5050650226

LAMP

19

1813000021

ROUND BULB Was 1913000021 - D

20

5350246805

TERMINAL FEMALE

21

0234241031

WIRE HARNESS W/Ref. 22-28 Was 0207741031 - A

22

5350249552

CONNECTOR

23

5350249597

CABLE CONNECTOR

24

5552659550

BOX W/Ref. 25

25

5552659513

SEAL

26

5350555317

HOUSING (FEMALE)

27

5350555308

LOCK

28

5350555325

FEMALE TERMINAL
