Запчасти Bobcat 444 ENGINE HOOD MAIN FRAME

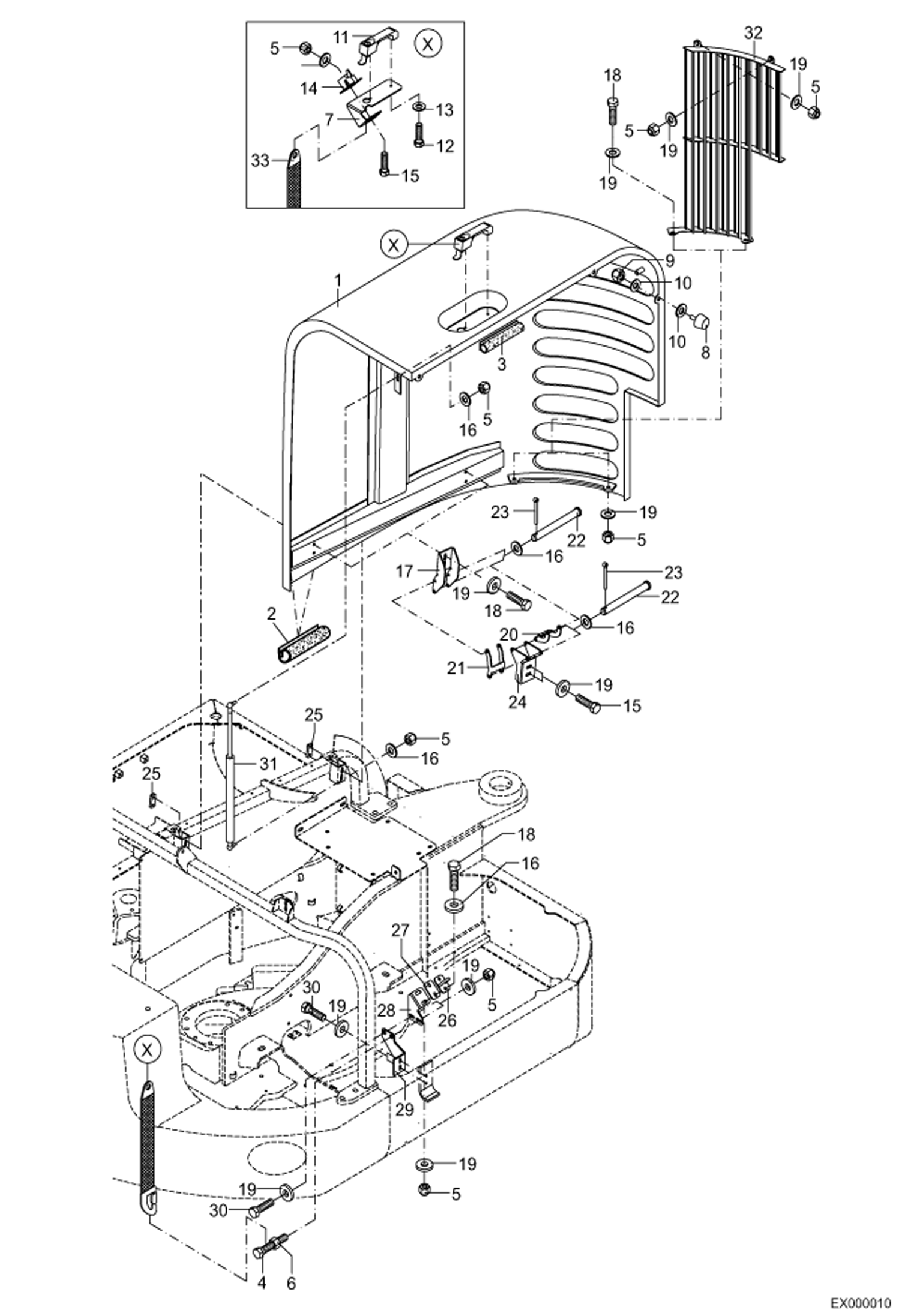

Схема запчастей Bobcat 444 - ENGINE HOOD MAIN FRAME

Артикул

Название

Примечание

Количество

1

5529020094

HOOD Was 0207528005 - A

2

7025098

SEAL, BULK/MTR - A

3

7024438

SEAL - A

4

1008707319

BOLT

5

1212251011

NUT

6

1210251011

NUT

7

6190028137

BRACKET

8

5101290955

STOP

9

1212251009

NUT

10

1307707014

WASHER

11

5354604442

PLASTIC HANDLE

12

1008707712

BOLT

13

1290707014

WASHER

14

5354604335

HOOD LATCH

15

1008707018

BOLT

16

1290707018

WASHER

17

6190028023

HINGE

18

1008707318

BOLT

19

1343707057

WASHER

20

6190028024

HINGE

21

6190028025

HINGE

22

1360707139

PIN

23

1395707017

COTTER PIN

24

6190028022

HINGE

25

0190028163

MOUNT

26

5354604338

COTTER

27

6176028067

FLAP

28

6190028011

ANGLE PLATE

29

6202528115

BRACKET

30

1008707618

BOLT

31

5696636604

GAS PRESSURE SPRING Was 5696636295 - A

32

6207528083

GRID

33

5014661560

BELT

Выбрано товаров: 33
