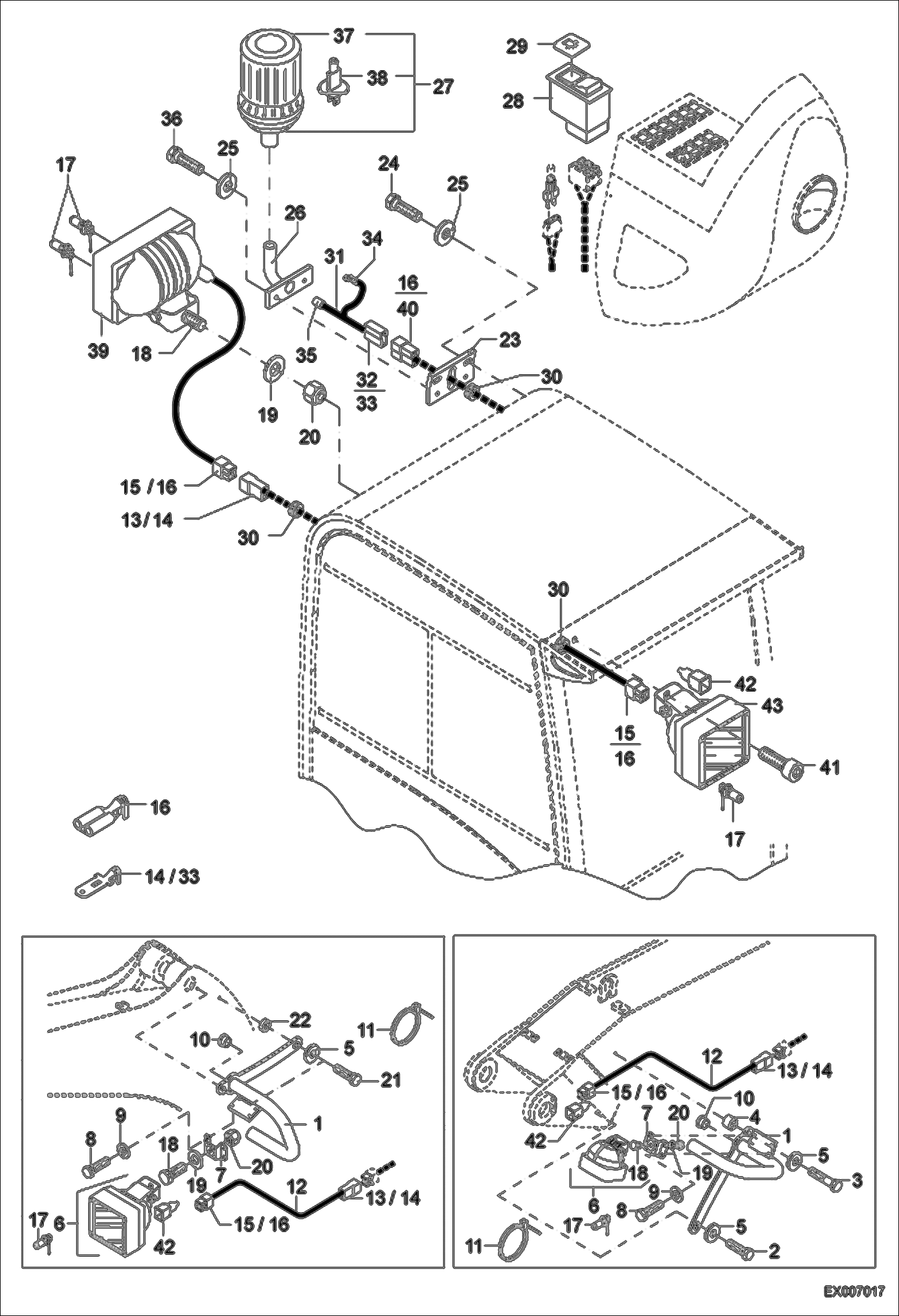

Запчасти Bobcat 444 WORKING LIGHT ELECTRICAL SYSTEM

1

6190311002

BRACKET

2

1008707829

BOLT

3

1008707630

BOLT

4

0111296505

SPACER

5

1343707061

WASHER

6

5350661223

WORKING LIGHT W/Ref. 18-20

7

5350661268

BRACKET

8

1008707512

BOLT

9

1290707014

WASHER

10

5558248123

PLUG

11

5350650294

BINDER

12

0207811010

WIRE HARNESS W/Ref. 13-16

13

5350249534

FLAT PLUG

14

5350247311

TERMINAL MALE

15

5350249513

PLUG 2-positions

16

5350246805

TERMINAL FEMALE

17

1813000035

BULB

18

1008707623

BOLT

19

1290707020

WASHER

20

1212251013

NUT

21

1008707230

BOLT

22

0156029033

SPACER

23

0190265005

BRACKET

24

1008707018

BOLT

25

1343707057

WASHER

26

5350637545

PIPE W/Ref. 25 & 36

27

5050022294

LIGHT, BEACON W/Ref. 37-38

28

5050651363

ROCKER SWITCH

29

5358650237

SYMBOL OCC. LIGHT rotatingbeacon light

30

5653095530

RUBBER GROMMET

31

0190265010

WIRE HARNESS W/Ref. 33-35

32

5350249539

PLUG

33

5350247311

TERMINAL MALE

34

5350246610

CABLE CONNECTOR

35

5350246817

SLEEVE

36

1008707817

BOLT

37

5050661865

COVER

38

5350642339

BULB

39

5350658675

WORKING LIGHT

40

5050651211

FEMALE

41

1045707623

BOLT Was 1008707623 - A

42

5350637548

CAP, RUBBER

43

5350661223

WORKING LIGHT
