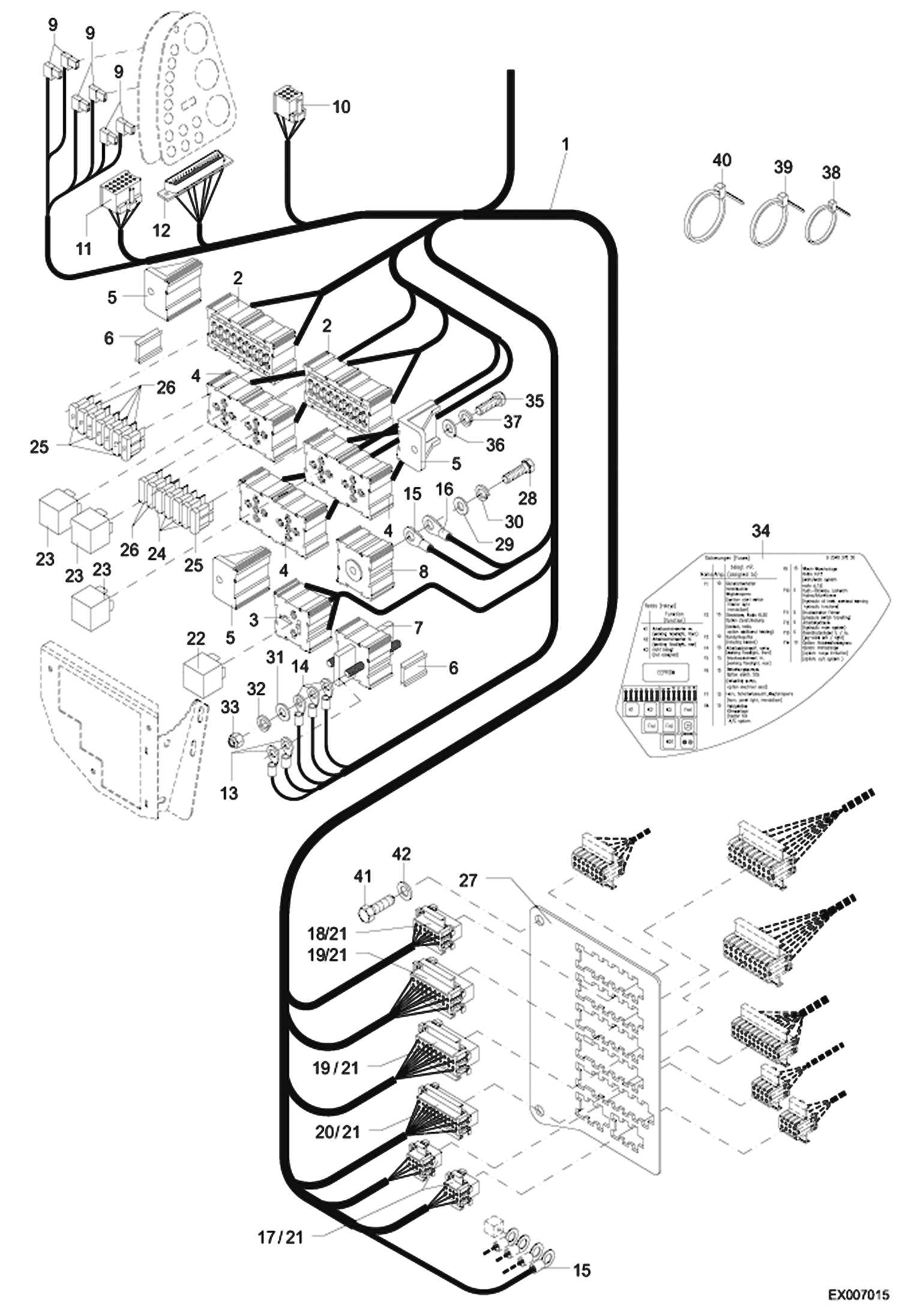

Запчасти Bobcat 444 FUSE PANEL AND RELAY PANEL ELECTRICAL SYSTEM

1

5821661133

HARNESS CONSOLE W/Ref. 2-31

2

5050650473

FUSE MODULE

3

5050650464

POWER RELAY LINE

4

5050650472

RELAY MODULE

5

5050650468

MOUNT

6

5050650470

CONNECTOR

7

5050650466

MODULE

8

5050650475

DISTRIBUTOR

9

5350249776

CONNECTOR (FEM)

10

5350249757

CONNECTOR

11

5350249753

CONNECTOR

12

5350249780

CONNECTOR

13

5350246700

RING

14

5350249600

CABLE CONNECTOR

15

5350249597

CABLE CONNECTOR

16

5350246610

CABLE CONNECTOR

17

5350249690

CONNECTOR

18

5350249692

CONNECTOR

19

5350249693

CONNECTOR

20

5350249694

CONNECTOR

21

5350249695

MAL TERMINAL

22

5050247810

RELAY

23

5050247335

RELAY

24

5050650301

5A FUSE 5A

25

5050650264

10A FUSE 10A

26

5050650271

15A FUSE 15A

27

6234027120

BRACKET

28

1008707817

BOLT

29

1290707018

WASHER

30

1321707018

SPRING WASHER

31

1290707014

WASHER

32

1321707013

WASHER

33

1212251009

NUT

34

0234027030

LEGEND

35

5821662125

SCREW

36

5821662126

WASHER

37

1327707012

WASHER

38

5350650294

BINDER

39

5653093560

BINDER

40

5350650280

BINDER

41

1008707213

BOLT

42

1307707014

WASHER
