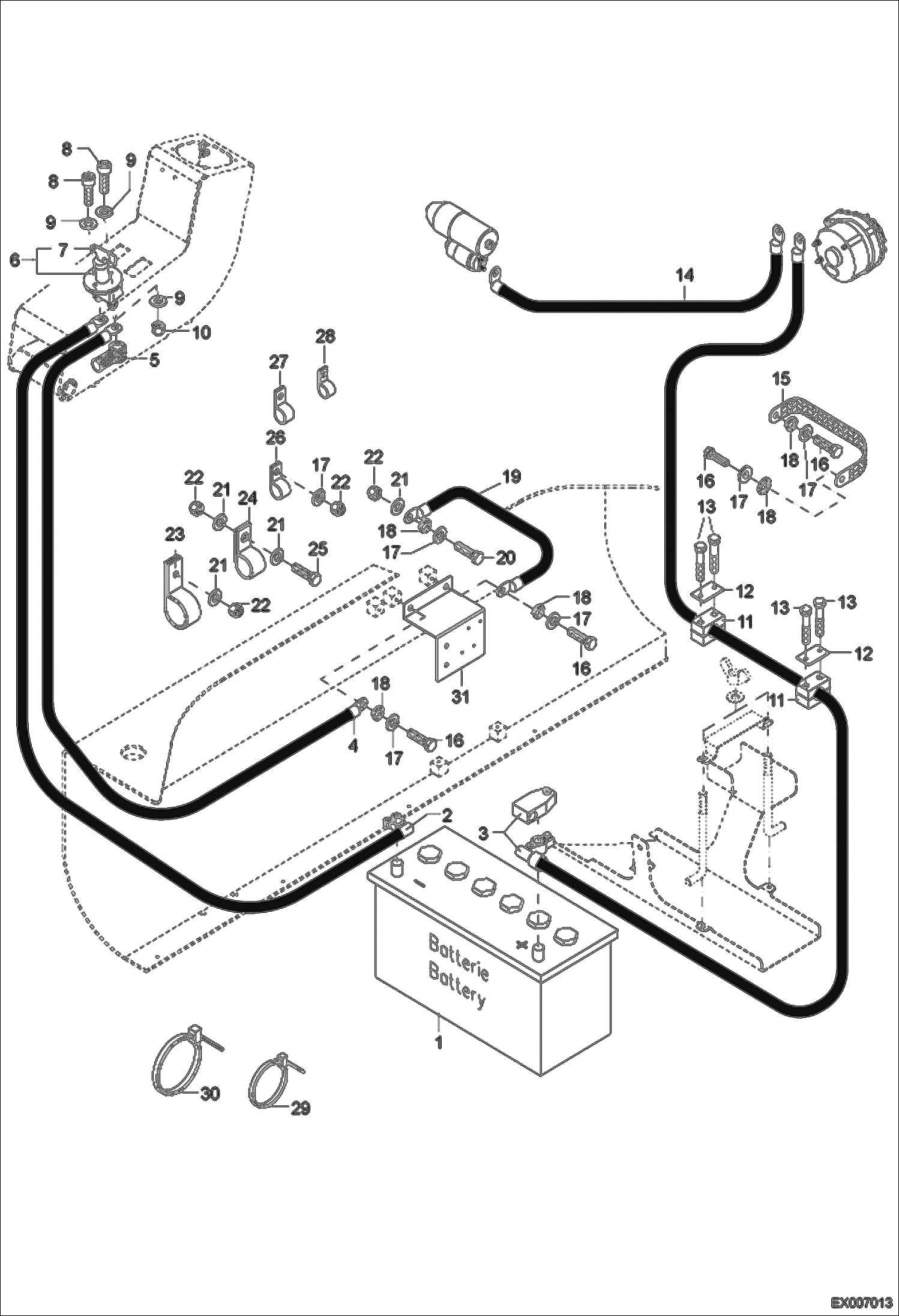

Запчасти Bobcat 444 UPPERCARRIAGE ELECTRIC INSTALLATION ELECTRICAL SYSTEM

1

5272600005

BATTERY

2

0190007135

BATTERY CABLE negative

3

0209007034

BATTERY CABLE positive

4

0190007136

CABLE, GROUND

5

5050580450

RUBBER

6

5522655660

SWITCH INTERRUPTER W/Ref. 7

7

5522655651

KEY INTERRUPTER

8

1045707213

BOLT

9

1290707014

WASHER

10

1212251009

NUT

11

5660199615

HOSE CLIP

12

5660200122

COVER PLATE

13

1007707813

BOLT

14

0239015065

POWER CABLE PLUS

15

5653246930

EARTH CABLE 300mm

16

1008707018

BOLT

17

1343707057

WASHER

18

1327707018

TOOTHED LOCK WASHER

19

0073657067

CABLE, GROUND 500mm

20

1008707318

BOLT

21

1290707018

WASHER

22

1212251011

NUT

23

5000210400

HOSE CLIP

24

5000136820

HOSE CLIP

25

1008707618

BOLT

26

5000136800

HOSE CLIP

27

5000095800

HOSE CLIP

28

5000136710

HOSE CLIP

29

5653093560

BINDER

30

5350650280

BINDER

31

6190007010

BRACKET
