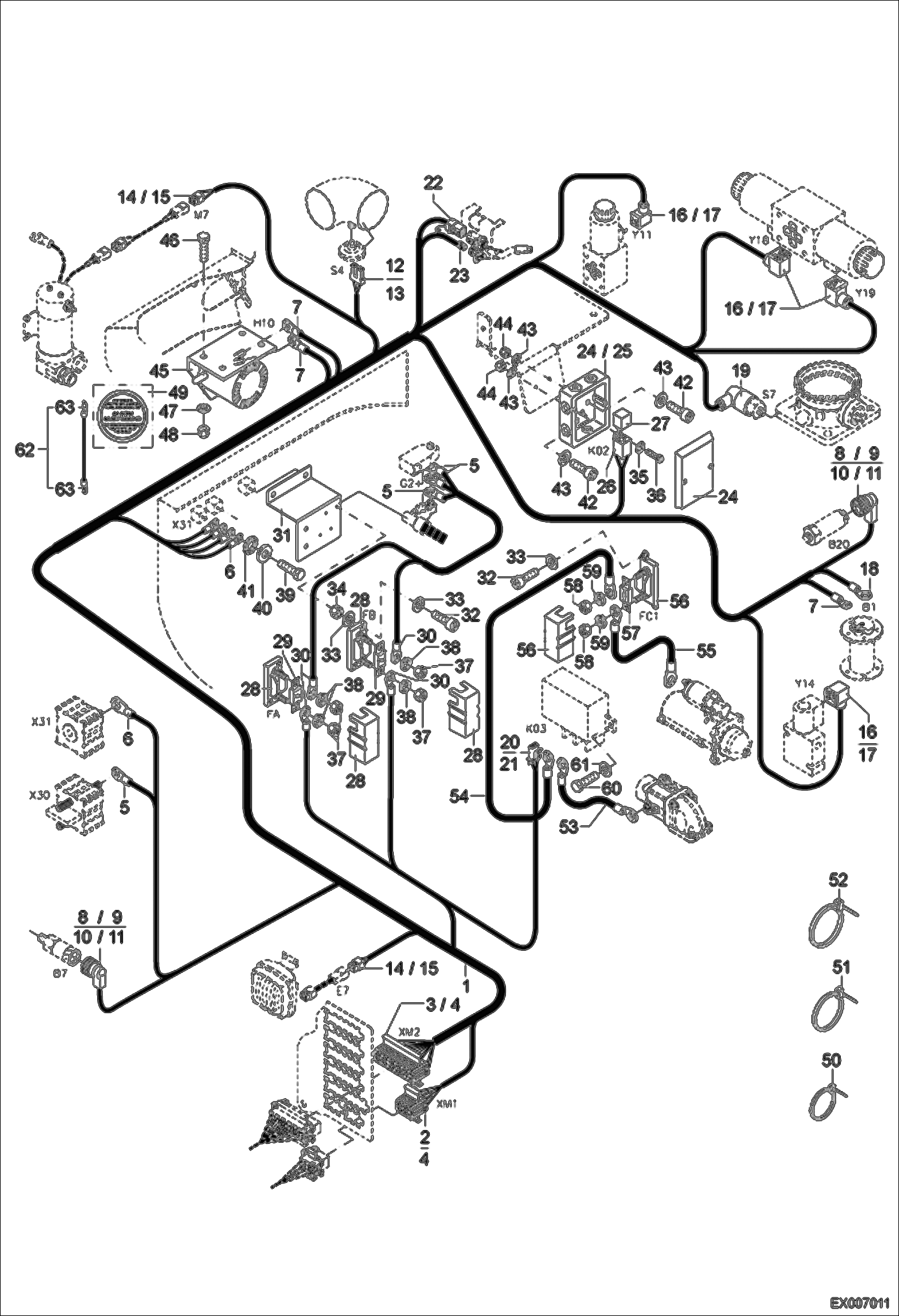

Запчасти Bobcat 444 ELECTRIC INSTALLATION - MACHINE (S/N ADBT11001 - 11020) ELECTRICAL SYSTEM

1

0283407060

WIRE HARNESS CPL. W/Ref. 2-31

2

5350249684

CONNECTOR 8-positions

3

5350249687

CONNECTOR 22-positions

4

5350249552

CONNECTOR

5

5350249600

CABLE CONNECTOR

6

5350249597

CABLE CONNECTOR

7

5350241104

CABLE CONNECTOR

8

5350249655

SOCKET HOUSING W/Ref. 9-10

9

5350249717

FEMALE PIN

10

5350249659

SEAL

11

5350249661

CAP 90GRAD

12

5350249576

HOUSING 2-positions

13

5350249579

FEM TERMINAL

14

5350249513

PLUG 2-positions

15

5350246805

TERMINAL FEMALE

16

5552659550

BOX

17

5552659513

SEAL

18

5350246820

CABLE CONNECTOR

19

5380660826

PLUG CONNECTION

20

5350249663

SOCKET HOUSING 2-positions

21

5350249665

FEMALE TERMINALE

22

5411662508

CONNECTOR KIT 16-POSITIONS 16-positions

23

5411662509

CONNECTOR KIT 2-POSITIONS 2-positions

24

5208640228

BOX

25

5208640226

CLIP

26

5050247815

BRACKET RELAY

27

5050247810

RELAY

28

5050650450

HOLDER W/Ref. 37-38

29

5050650480

40A FUSE 40A

30

5350249590

CABLE CONNECTOR

31

6190007010

BRACKET

32

1045707906

SCREW

33

1290707010

WASHER

34

1212251006

NUT

35

1041707506

BOLT

36

1290707010

WASHER

37

1210707007

NUT

38

1321707012

WASHER

39

1008707517

BOLT

40

1343707057

WASHER

41

1327707018

TOOTHED LOCK WASHER

42

1045707213

BOLT

43

1290707014

WASHER

44

1212251009

NUT

45

5755627342

BACK UP BUZZER

46

1008707018

BOLT

47

1290707018

WASHER

48

1212251011

NUT

49

5358609506

DECAL, BACKUP ALARM

50

5350650294

BINDER

51

5653093560

BINDER

52

5350650280

BINDER

53

0207507037

CABLE L=1700mm

54

0207507038

CABLE L= 200mm

55

0207507039

CABLE L=1200mm

56

5050650476

HOLDER W/Ref. 58-59

57

5050650477

BLADE TYPE FUSE 150A

58

1210707009

NUT

59

1321707014

SPRING WASHER

60

1008707912

BOLT

61

1290707014

WASHER

62

0190263030

JUMPER HARNESS Was 6190263030 - D

63

5350247311

TERMINAL MALE
