Запчасти Bobcat 444 SWIVELING BUCKET HYDRAULIC CYLINDER (Z90/40) HYDRAULIC SYSTEM

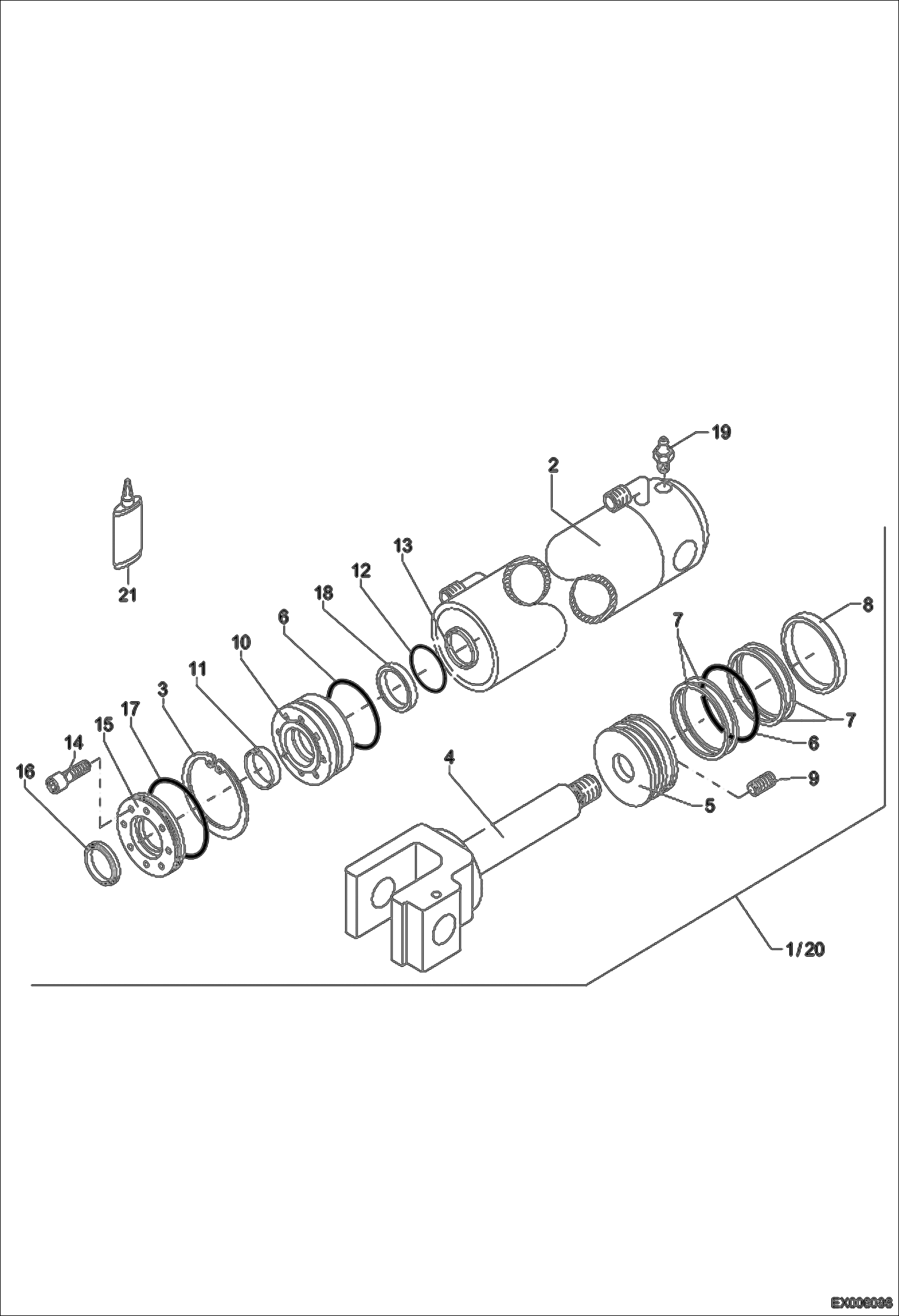

Схема запчастей Bobcat 444 - SWIVELING BUCKET HYDRAULIC CYLINDER (Z90/40) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6502045000

HYDRAULIC CYLINDER W/Ref. 2-18

2

6502045003

PIPE

3

1456622670

CIRCLIP

4

6502045013

PISTON ROD CPL.

5

0502027015

PISTON

6

1971956591

O-RING

7

1966954404

BACK-UP RING

8

5060592800

GUIDING RING

9

1136347417

STUD

10

0500704117

BUSHING

11

1965015400

ROD SEAL

12

1971956339

O-RING

13

5060592830

GUIDING RING

14

1045707513

BOLT

15

0500701019

COUNTER FLANGE

16

1974930108

SCRAPER RING

17

1971956243

O-RING

18

1965840309

ROD SEAL

19

1607003006

GREASE NIPPLE

20

1976999940

SEAL KIT W/Ref. 6-8, 11-13 & 16

21

MCS001036A

GLUE

Выбрано товаров: 21
