Запчасти Bobcat 444 SUPPORT BLADE LONG VERSION HYDRAULIC CYLINDER (Z110/60) HYDRAULIC SYSTEM

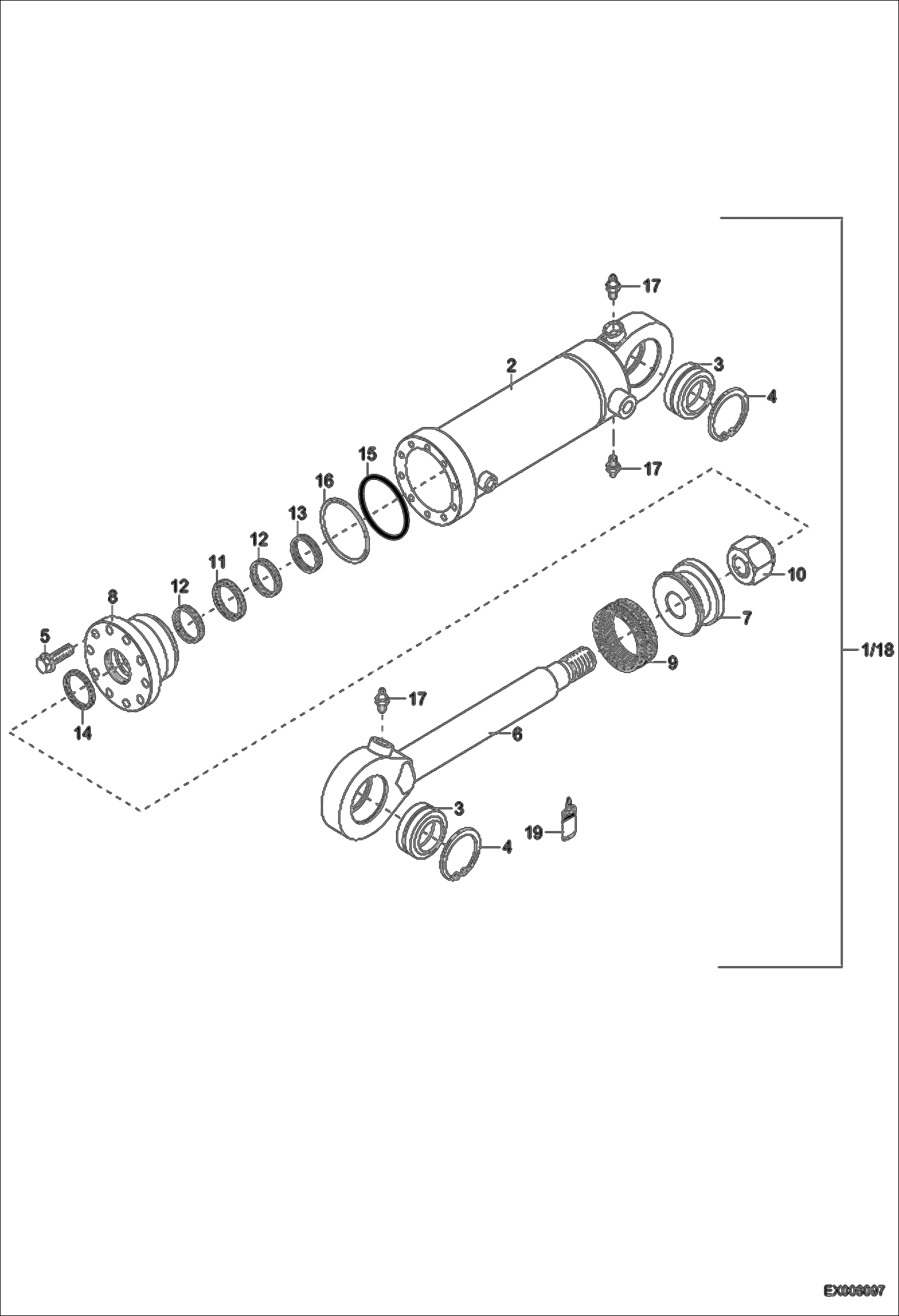

Схема запчастей Bobcat 444 - SUPPORT BLADE LONG VERSION HYDRAULIC CYLINDER (Z110/60) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6501150100

CYLINDER, HYDRAULIC W/Ref. 2-16

2

6501150003

CYLINDER BARREL

3

1950000865

LINKAGE BEARING

4

1456622369

CIRCLIP

5

1017370230

BOLT

6

6501150011

PISTON ROD

7

0501150115

PISTON

8

0501119017

PIERCING BUSHING

9

1634935039

PISTON SEAL

10

1212251834

NUT

11

1965956675

ROD SEAL

12

5060503060

ROD SEAL

13

5060502060

GUIDING RING

14

1974955060

SCRAPER RING

15

1971958521

O-RING

16

1966960110

BACK UP RING

17

1607003006

GREASE NIPPLE

18

1976999491

SEAL KIT W/Ref. 9-16

19

MCS001036A

GLUE

Выбрано товаров: 19
