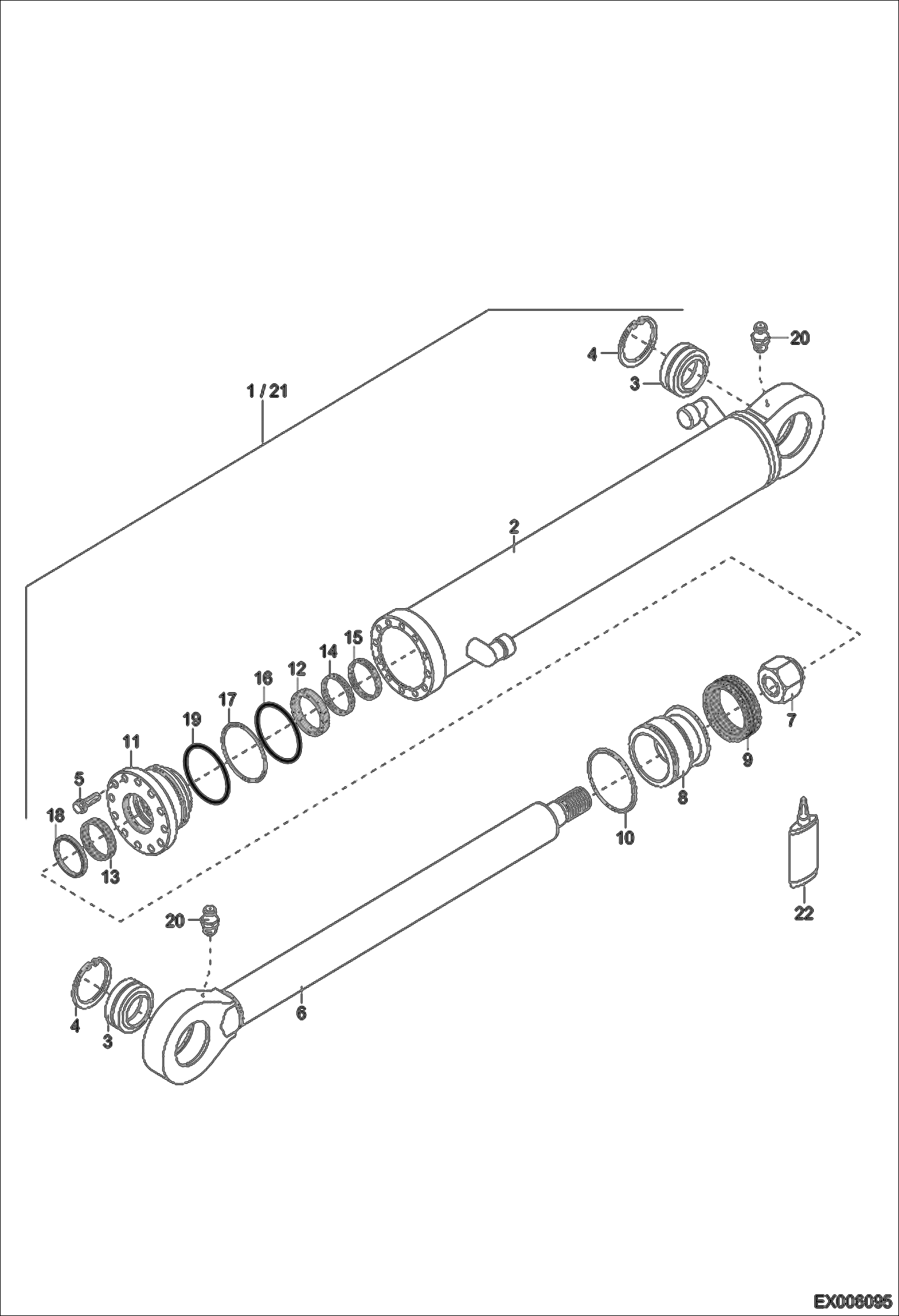

Запчасти Bobcat 444 BUCKET - MONO BOOM HYDRAULIC CYLINDER (Z105/70) HYDRAULIC SYSTEM

1

6501089000

HYDRAULIC CYLINDER W/Ref. 2-19

2

6501089003

CYLINDER BARREL

3

1950000865

LINKAGE BEARING

4

1456622369

CIRCLIP

5

1017370230

BOLT

6

6501089011

PISTON ROD

7

1212251836

NUT

8

0501089015

PISTON

9

1634935036

PISTON SEAL

10

5074609210

SEGMENT

11

0501089017

BUSHING, PIERCING

12

1965956785

SEAL

13

5060507070

GUIDING RING

14

5060503070

GUIDING RING

15

5060502070

GUIDING RING

16

1971958518

O-RING

17

1966960109

BACK UP RING

18

1974955070

SCRAPER RING

19

1971956118

O-RING

20

1607003006

GREASE NIPPLE

21

1976999388

SEAL KIT W/Ref. 7, 9-10 & 12-19

22

MCS001036A

GLUE
