Запчасти Bobcat 444 DIPPER ARM MONO BOOM AND ARTICULATED BOOM CYLINDER (Z115/70) HYDRAULIC SYSTEM

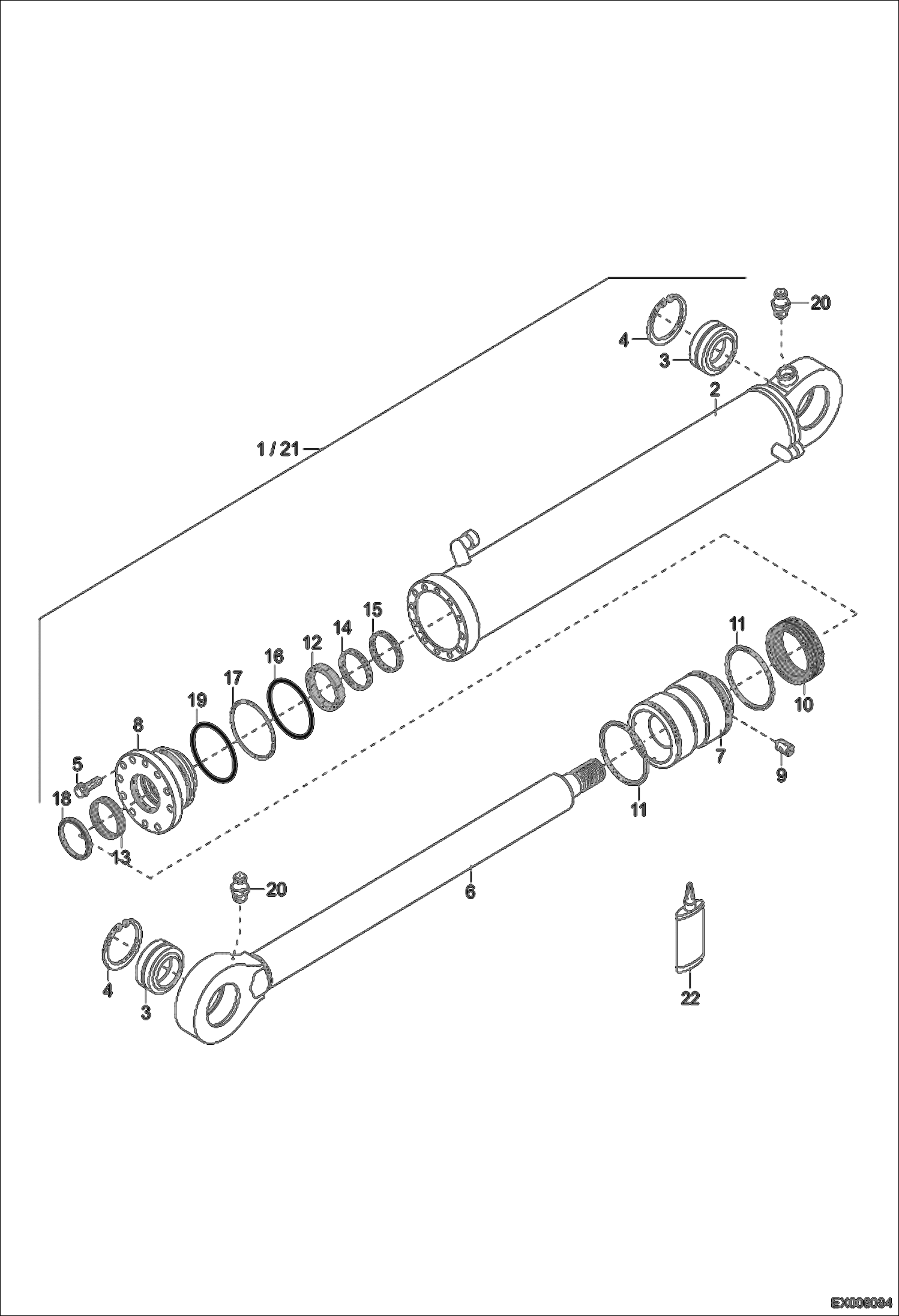

Схема запчастей Bobcat 444 - DIPPER ARM MONO BOOM AND ARTICULATED BOOM CYLINDER (Z115/70) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6501249000

HYDRAULIC CYLINDER W/Ref. 2-18

2

6501249003

CYLINDER BARREL

3

1950000866

LINKAGE

4

1456622873

CIRCLIP

5

1017370230

BOLT

6

6501249011

PISTON ROD

7

0501249015

DUMPING PISTON

8

0501229017

PIERCING BUSHING

9

1135341423

STUD

10

1634935021

PISTON SEAL

11

5074609200

SEGMENT

12

1965956785

SEAL

13

5060507070

GUIDING RING

14

5060503070

GUIDING RING

15

5060502070

GUIDING RING

16

1971958523

O-RING

17

1966960111

BACK UP RING

18

1974955070

SCRAPER RING

19

1971958420

O-RING

20

1607003006

GREASE NIPPLE

21

1976999604

SEAL KIT W/Ref. 10-19

22

MCS001036A

GLUE

Выбрано товаров: 22
