Запчасти Bobcat 444 BUCKET - ARTICULATED BOOM HYDRAULIC CYLINDER (Z95/60) HYDRAULIC SYSTEM

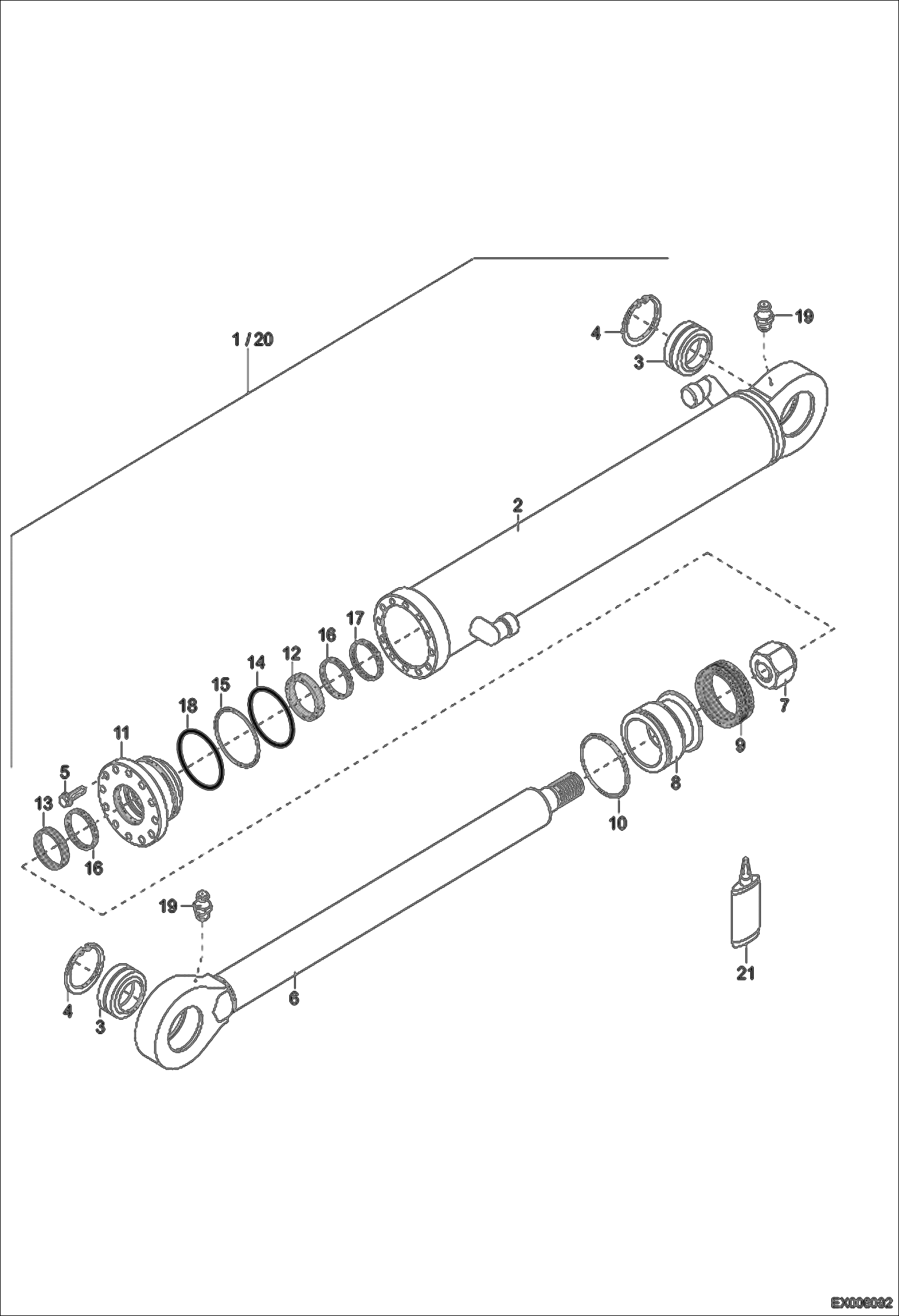

Схема запчастей Bobcat 444 - BUCKET - ARTICULATED BOOM HYDRAULIC CYLINDER (Z95/60) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6500881000

HYDRAULIC CYLINDER W/Ref. 2-18

2

6500881003

TUBE, CYLINDER

3

1950000865

LINKAGE BEARING

4

1456622369

CIRCLIP

5

1017370230

BOLT

6

6500881011

ROD, PISTON

7

1212251834

NUT

8

0500881015

PISTON, DUMPING

9

1634935963

PISTON SEAL

10

5074609218

SEGMENT

11

0500880017

BUSHING, PIERCING

12

1965956675

ROD SEAL

13

1974955060

SCRAPER RING

14

1971958511

O-RING

15

1966960958

BACK UP RING

16

5060503060

ROD SEAL

17

5060502060

GUIDING RING

18

1971958419

O-RING

19

1607003006

GREASE NIPPLE

20

1976999187

SEAL KIT W/Ref. 7, 9-10 & 12-18

21

MCS001036A

GLUE

Выбрано товаров: 21
