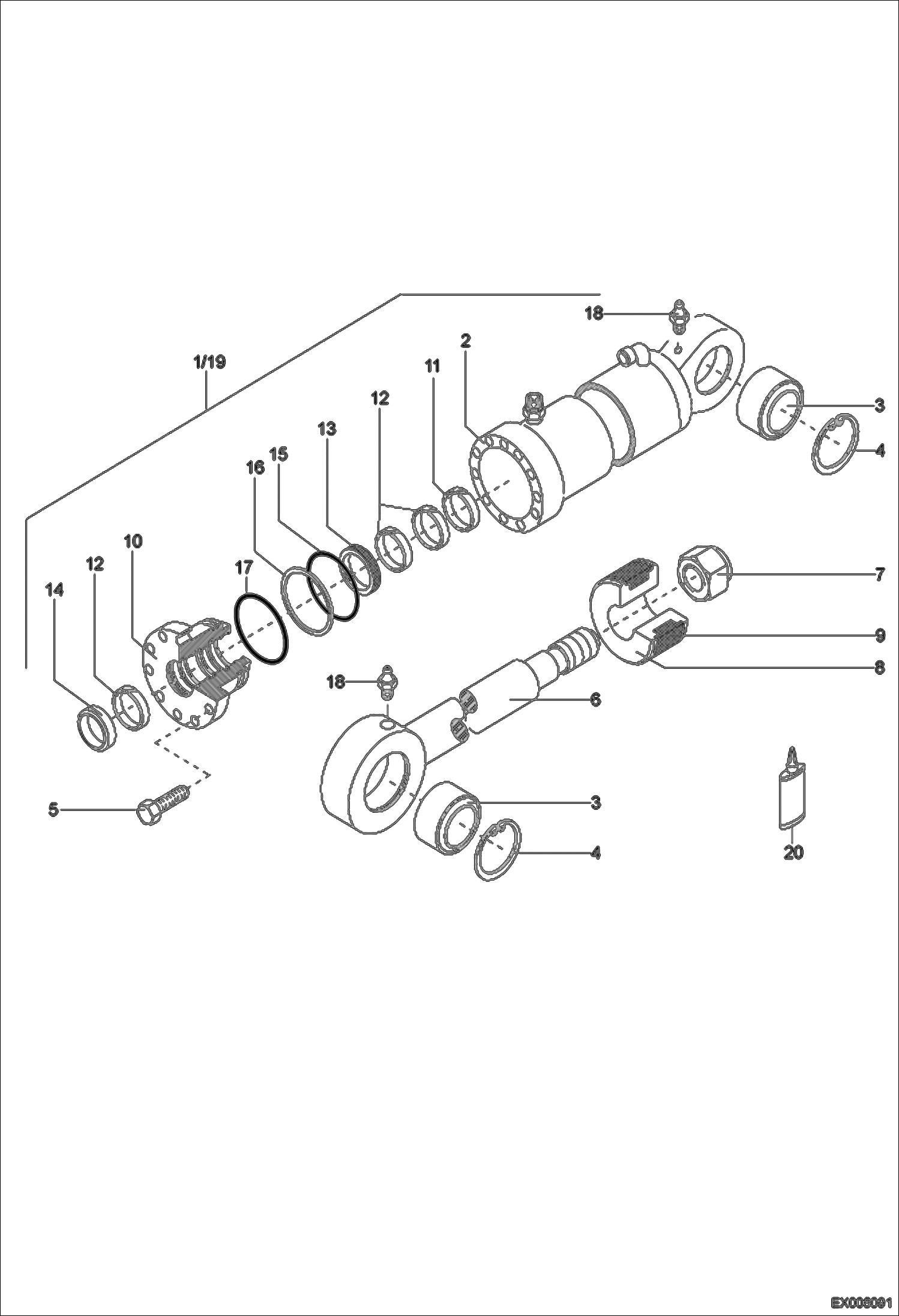

Запчасти Bobcat 444 INTERMEDIATE BOOM - ARTICULATED BOOM CYLINDER (Z90/50) HYDRAULIC SYSTEM

1

6500782000

HYDRAULIC CYLINDER W/Ref. 2-17

2

6500782003

CYLINDER BODY

3

1950000814

LINKAGE BEARING

4

1456622363

CIRCLIP

5

1017341424

BOLT

6

6500760011

PISTON ROD

7

1212251832

NUT

8

0500760015

PISTON

9

1634935661

PISTON SEAL

10

0500782017

CYLINDER HEAD

11

5060502050

ROD SEAL

12

5060501050

ROAD SEAL

13

1965956565

ROD SEAL

14

1974955050

SCRAPER RING

15

1971958509

O-RING

16

1966960908

BACK UP RING

17

1971956438

O-RING

18

1607003006

GREASE NIPPLE

19

1976999084

SEAL KIT W/Ref. 7, 9 & 11-17

20

MCS001036A

GLUE
