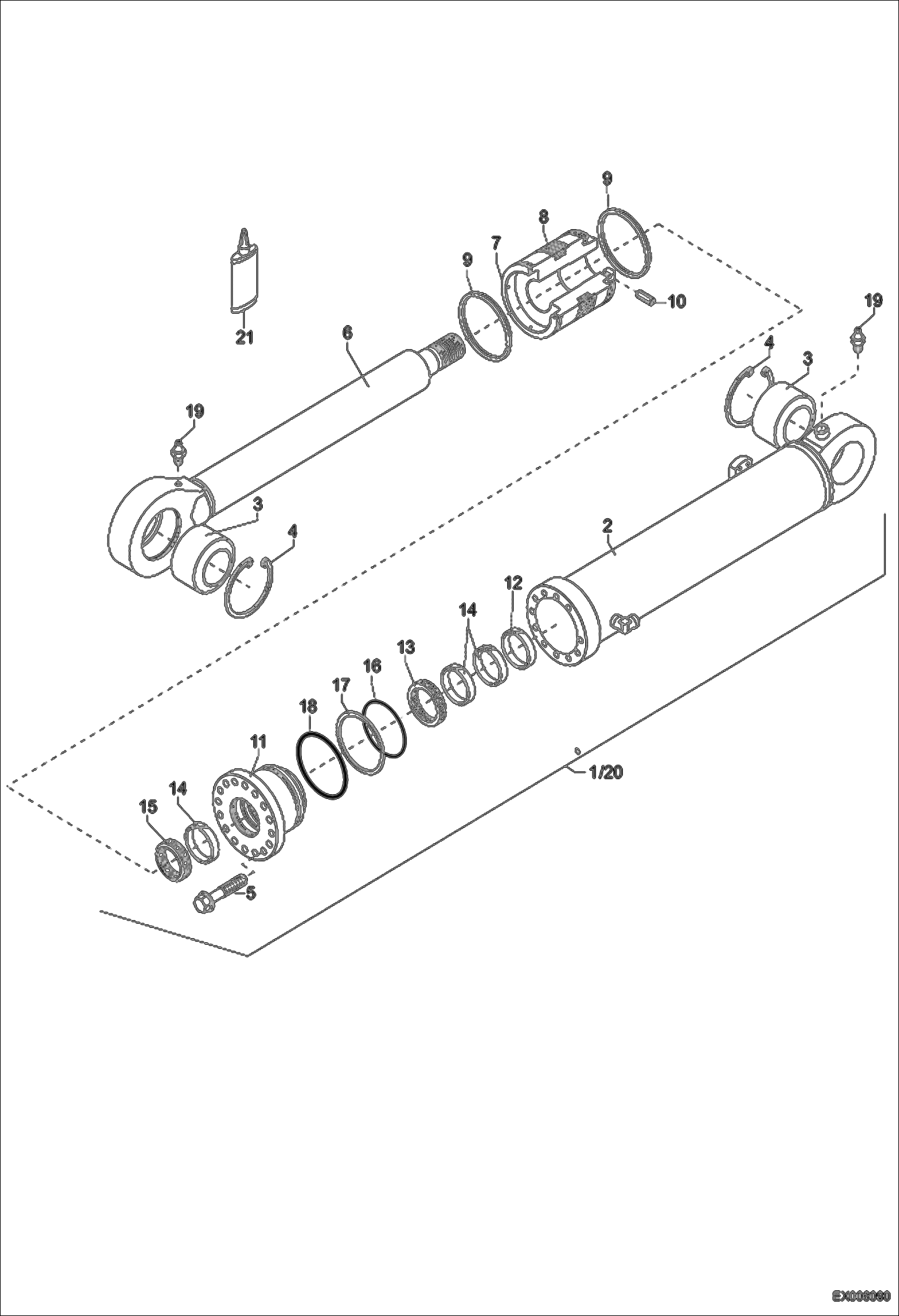

Запчасти Bobcat 444 BOOM - ARTICULATED BOOM HYDRAULIC CYLINDER (Z120/70) HYDRAULIC SYSTEM

1

6501839000

HYDRAULIC CYLINDER W/Ref. 2-18

2

6501839003

CYLINDER BODY

3

1950000866

LINKAGE

4

1456622873

CIRCLIP

5

1017370230

BOLT

6

6501839011

CYLINDER ROD

7

0501839015

PISTON

8

1634934120

PISTON SEAL

9

5074609265

SEGMENT

10

1135341423

STUD

11

0501839017

CYLINDER HEAD

12

5060502070

GUIDING RING

13

1965956785

SEAL

14

5060507070

GUIDING RING

15

1974955070

SCRAPER RING

16

1970960869

O-RING

17

1969956112

SPIRAL RING

18

1971956430

O-RING

19

1607003006

GREASE NIPPLE

20

1976999648

SEAL KIT W/Ref. 8-9 & 12-18

21

MCS001036A

GLUE
