VALVE BANK (4SM12)

Запчасти Bobcat 444 VALVE BANK (4SM12) HYDRAULIC SYSTEM

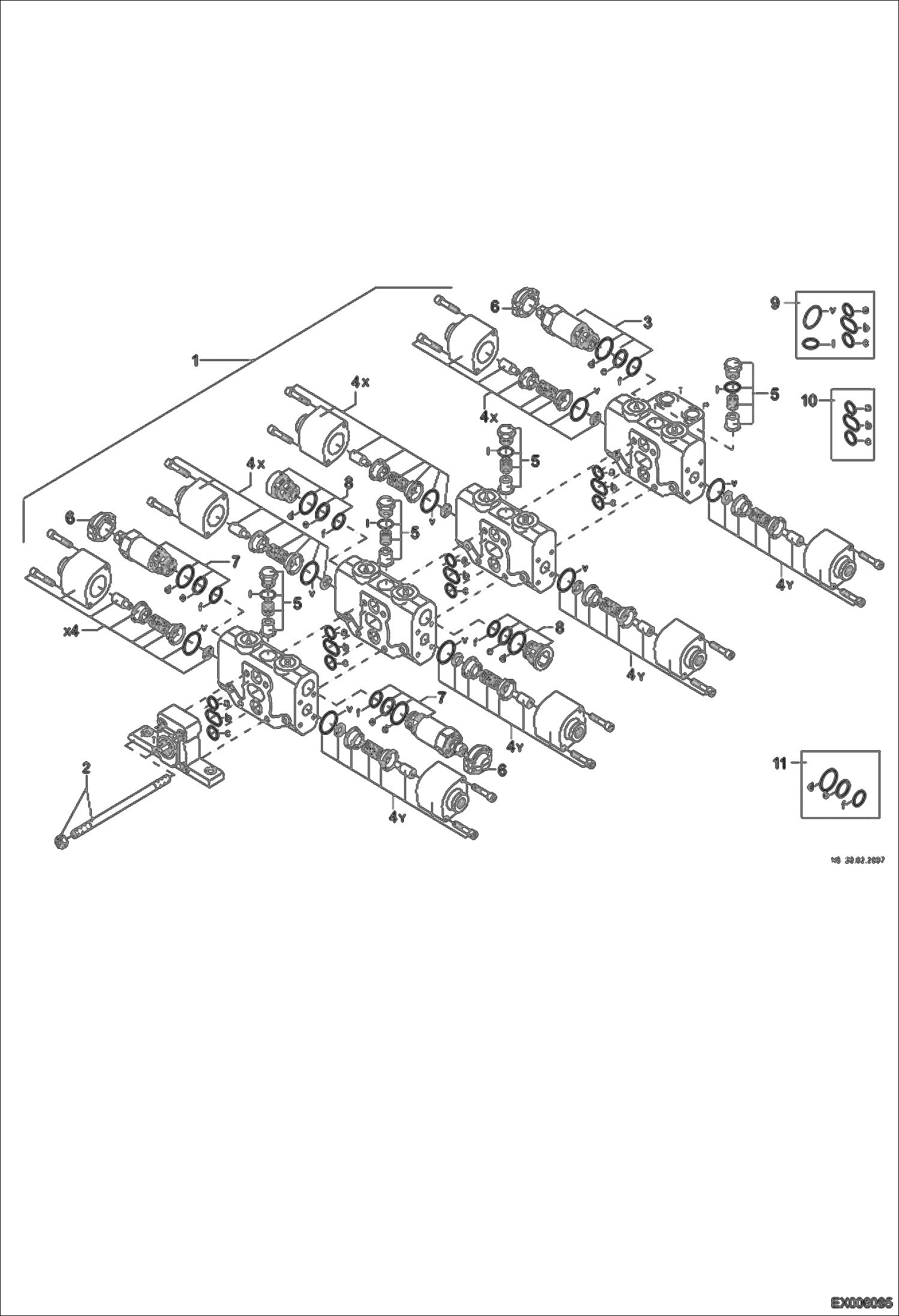

Схема запчастей Bobcat 444 - VALVE BANK (4SM12) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5606660454

VALVE ASSY W/Ref. 2

2

5606664268

TIE ROD KIT

3

5606664224

PRESSURE RELIEF VALVE

4

5606664182

HYD. OPERATION KIT Left (X) and right (Y)

5

5606656636

VALVE

6

5606664184

LOCKING COVER

7

5606664224

PRESSURE RELIEF VALVE

8

5606656717

ANTI-CAV VALVE

9

5606656639

SET OF SEALS

10

5606656908

SEAL KIT

11

5606664223

SEAL KIT
