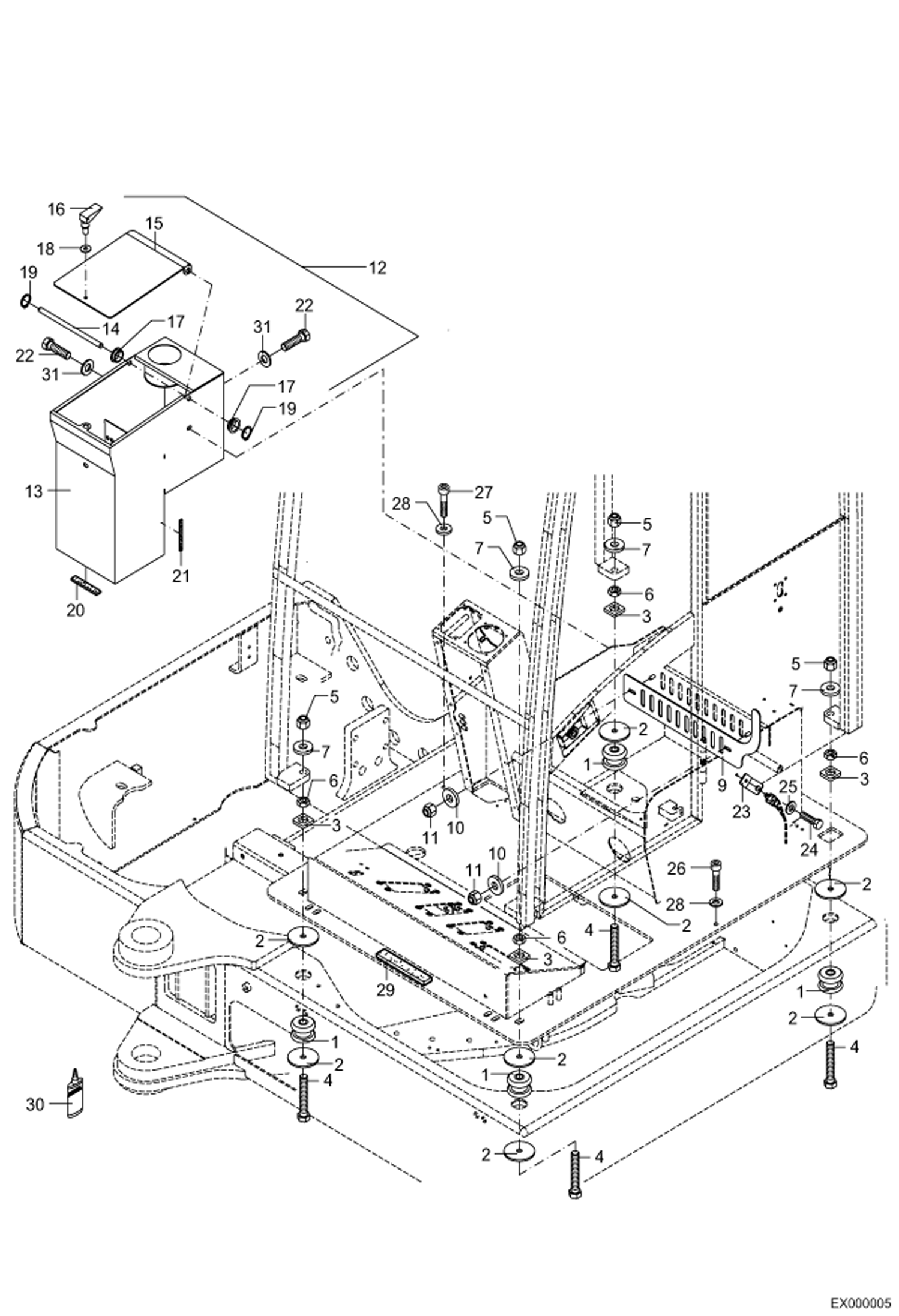

Запчасти Bobcat 444 CAB MOUNTING MAIN FRAME

1

5101290960

BEARING

2

5153656312

SHIM

3

0190026081

TORSION LOCK Secure with LOCTITE 586

4

1008707237

BOLT

5

1212251015

NUT

6

1211707015

NUT

7

1343707063

WASHER

9

6190026090

AIR BAFFLE

10

1307707018

WASHER

11

1212251011

NUT

12

6190026068

BOX Includes Ref. 13 to 19

13

6190026070

BOX

14

0190026077

SHAFT

15

6190026078

COVER

16

5354606001

LOCKING

17

5657199001

PLAIN BEARING

18

1307707014

WASHER

19

1455622311

CIRCLIP

20

5354640120

RUBBER

21

5354600020

RUBBER 1=1 METER

22

1008707018

BOLT

23

6190026032

BRACKET

24

1008707213

BOLT

25

1290707014

WASHER

26

1045707430

BOLT

27

1045707730

BOLT

28

1343707061

WASHER

29

5354640110

RUBBER

30

THREADLOCK NLA - Was 5075632325 - A

31

1290707018

WASHER
