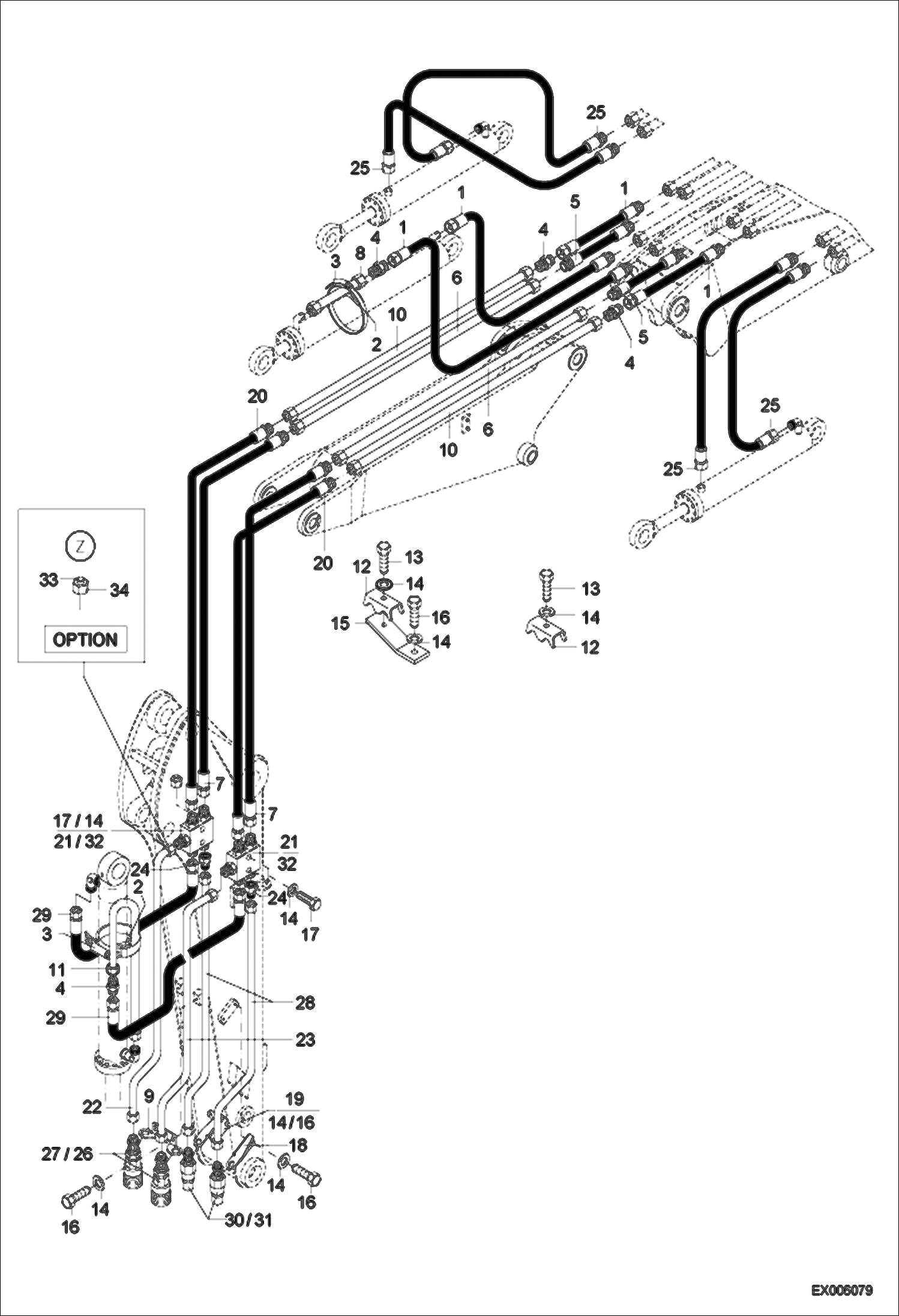

Запчасти Bobcat 444 DIPPER STICK 1850MM - ATLAS ATTACHMENTS HYDRAULIC SYSTEM

1

4466095498

HOSE

2

0110012050

RUBBER LAYER

3

5660095200

HOSE CLIP

4

1915060872

FITTING

5

4266104343

HOSE

6

0209626027

PIPE

7

4266113417

HOSE STANDARD

8

0209626033

PIPE

9

0209810034

BRACKET

10

0209626025

PIPE

11

0209626034

PIPE

12

0209120060

CLIP, PIPE

13

1007707624

BOLT Was 1007707524 - D

14

1343707059

WASHER

15

0209626020

BRACKET

16

1008707923

BOLT

17

1007707724

BOLT

18

0209810031

BRACKET, LEFT

19

0209810032

BRACKET, RIGHT

20

4466115454

HOSE STANDARD

21

5001207159

DISTRIBUTOR BLOCK W/Ref. 32

22

0209810052

PIPE

23

0209810053

PIPE

24

1934060164

FITTING

25

4466100498

HOSE

26

5260307008

SOCKET, COUPLING

27

5260307009

NUT, COVER

28

0209810054

PIPE

29

4466108510

HOSE

30

5260307010

PLUG, COUPLING

31

5260307011

PLUG

32

5001207157

HANDLE

33

1912060369

PLUG option

34

1911060169

NUT, ADAPTER option
