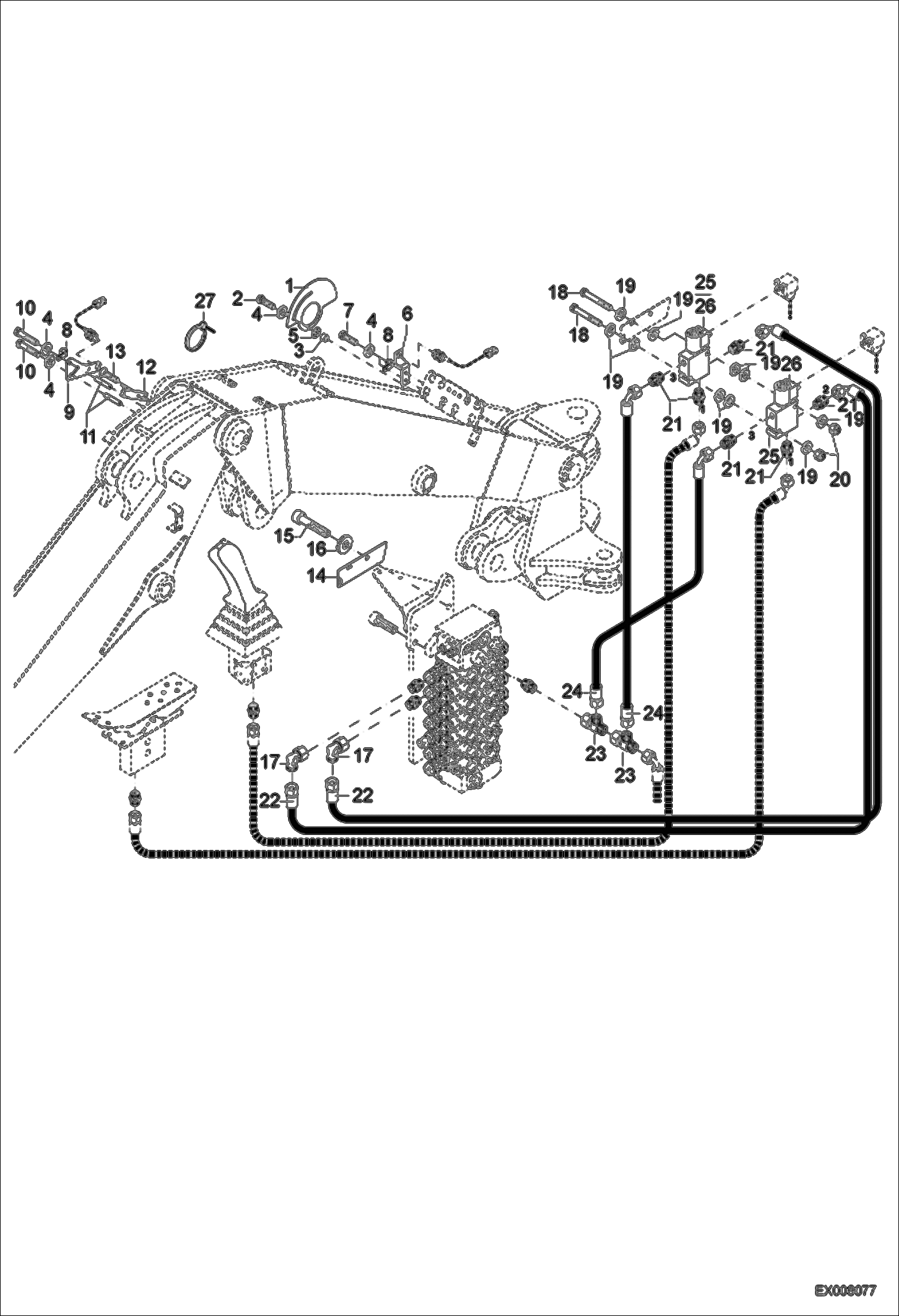

Запчасти Bobcat 444 BOOM HEIGHT LIMITATION - ARTICULATED BOOM HYDRAULIC SYSTEM

1

0209760011

SEGMENT

2

1008707019

BOLT

3

0337605028

SLEEVE, DISTANCE

4

1343707057

WASHER

5

1307707018

WASHER

6

0207741020

BRACKET

7

1008707318

BOLT

8

5000095800

HOSE CLIP

9

0209260010

BRACKET

10

1007707620

BOLT

11

0207741015

SLEEVE, DISTANCE

12

0207741005

BRACKET

13

1062707618

BOLT, M8X30

14

0209817005

BRACKET

15

1045707236

BOLT Was 1008707424 - A

16

1343707063

WASHER Was 1343707059 - A

17

1924060151

FITTING

18

1008707115

BOLT

19

1343707055

WASHER

20

1212251009

NUT

21

1915060255

FITTING

22

4506047351

HOSE

23

1919060351

FITTING

24

4256033371

HOSE, HYD Was 4506033351 - A

25

5320001001

CONTROL VALVE W/Ref. 26

26

5320001002

SOLENOID CARTRIDGE

27

5653093560

BINDER
