Запчасти Bobcat 444 2ND ADDITIONAL CIRCUIT - CONTROL UNIT HYDRAULIC SYSTEM

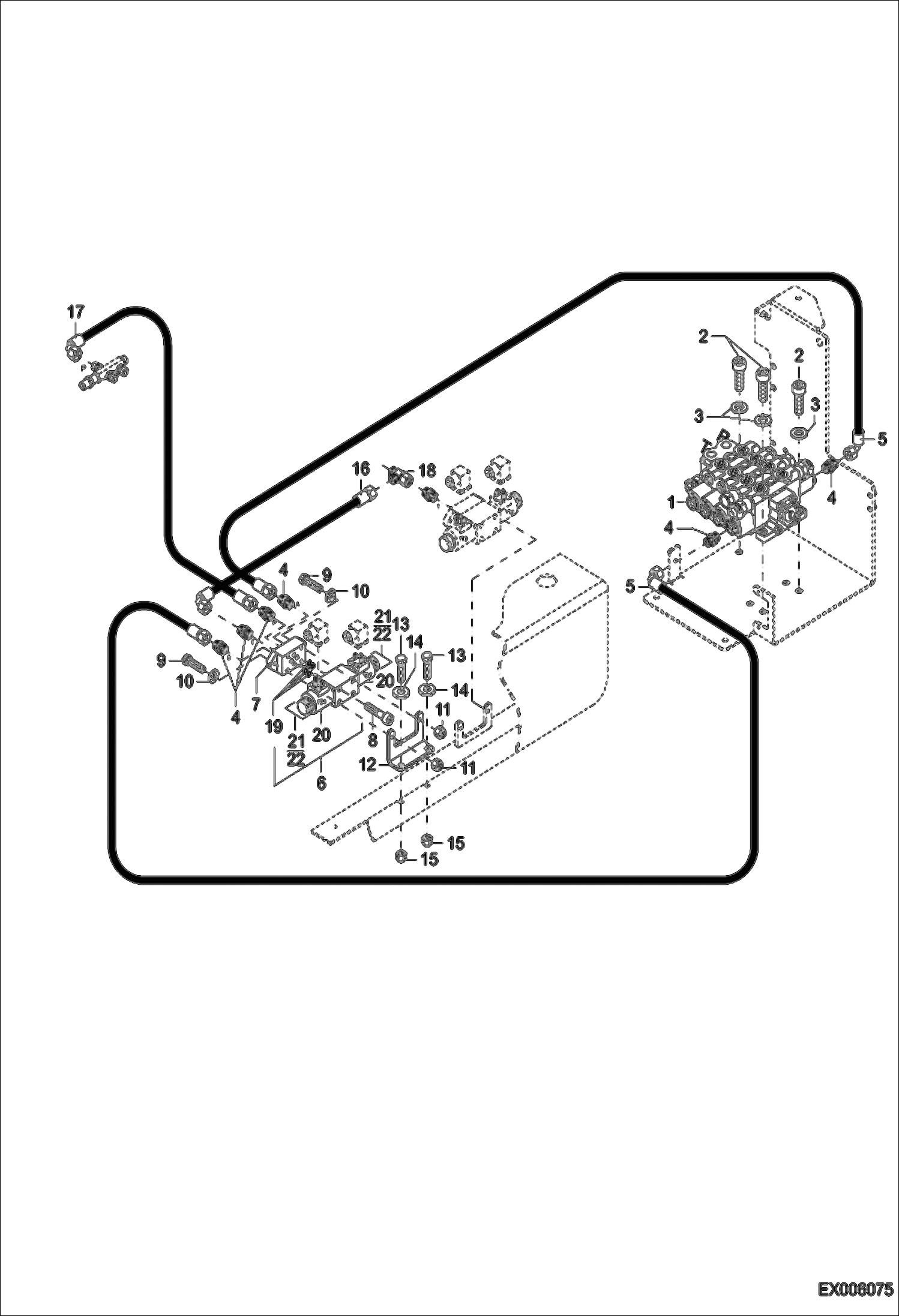

Схема запчастей Bobcat 444 - 2ND ADDITIONAL CIRCUIT - CONTROL UNIT HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

5606660454

VALVE ASSY

2

1045707124

BOLT

3

1290707020

WASHER

4

1915060255

FITTING

5

4506235351

HOSE

6

5003700001

DIRECT CONTR. VALVE W/Ref. 19-21

7

5003700003

CONNECTING PLATE

8

1045907011

BOLT

9

1008707513

BOLT

10

1290707014

WASHER

11

1212251009

NUT

12

0199006025

BRACKET

13

1008707618

BOLT

14

1343707057

WASHER

15

1212251011

NUT

16

4256033371

HOSE, HYD Was 4506033351 - A

17

4506205351

HOSE

18

1919060351

FITTING

19

5003700027

SEAL KIT

20

5003700025

COIL

21

5003700026

NUT W/SEAL W/Ref. 22

22

1970956810

O-RING

Выбрано товаров: 22
