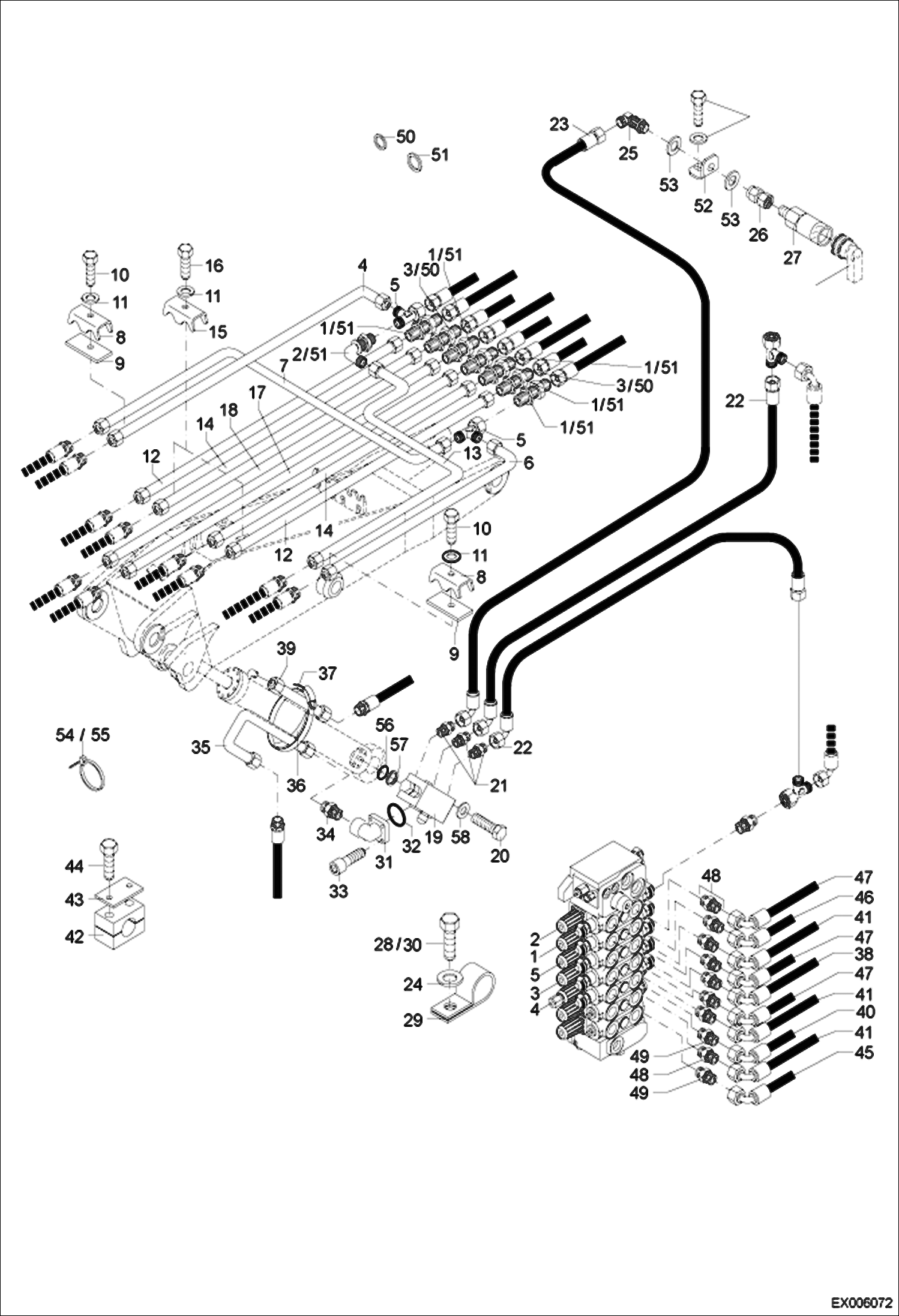

Запчасти Bobcat 444 ARTICULATED BOOM, PART 1 (W/Load Check Valve) HYDRAULIC SYSTEM

1

1913060166

FITTING

2

1931060166

FITTING

3

1913060155

FITTING

4

0209626037

PIPE

5

1919060366

FITTING

6

0209626030

PIPE

7

0209626031

PIPE

8

0202627060

PIPE CLIP

9

0176110018

FLAP

10

1007707624

BOLT

11

1343707059

WASHER

12

0209626024

PIPE

13

0209626038

PIPE

14

0209626026

PIPE

15

0209120060

CLIP, PIPE

16

1007707724

BOLT

17

0209626029

PIPE

18

0209626028

PIPE

19

5167659856

LOAD CONTROL VALVE

20

1008707019

BOLT Was 1045707019 - A

21

1915060255

FITTING

22

4506320351

HOSE

23

5066315830

HOSE

24

1343707057

WASHER

25

1931060151

FITTING

26

1943000101

CONNECTION

27

5154650507

PRESSURE ABSORBER

28

1008707018

BOLT

29

5000210400

HOSE CLIP

30

1008707817

BOLT

31

5000261400

FLANGE

32

1971956010

O-RING

33

1045707618

BOLT

34

1915060478

FITTING

35

0209626036

PIPE

36

0110012050

RUBBER LAYER

37

5660095420

HOSE CLIP

38

4466265412

HOSE

39

0209626035

PIPE

40

4266241376

HOSE

41

4466255512

HOSE

42

5660199915

HOSE CLIP

43

5660200040

COVER PLATE

44

1008707824

BOLT

45

4266240376

HOSE

46

4466266412

HOSE

47

4466256512

HOSE

48

1915060278

FITTING

49

1915060470

FITTING

50

1636815379

SEAL RING

51

1636815281

SEAL RING

52

6203212010

ANGLE

53

1290707025

WASHER

54

5350650294

BINDER

55

5350650280

BINDER

56

5167660058

O-RING

57

5167660059

BACKUP WASHER

58

1290707018

WASHER
