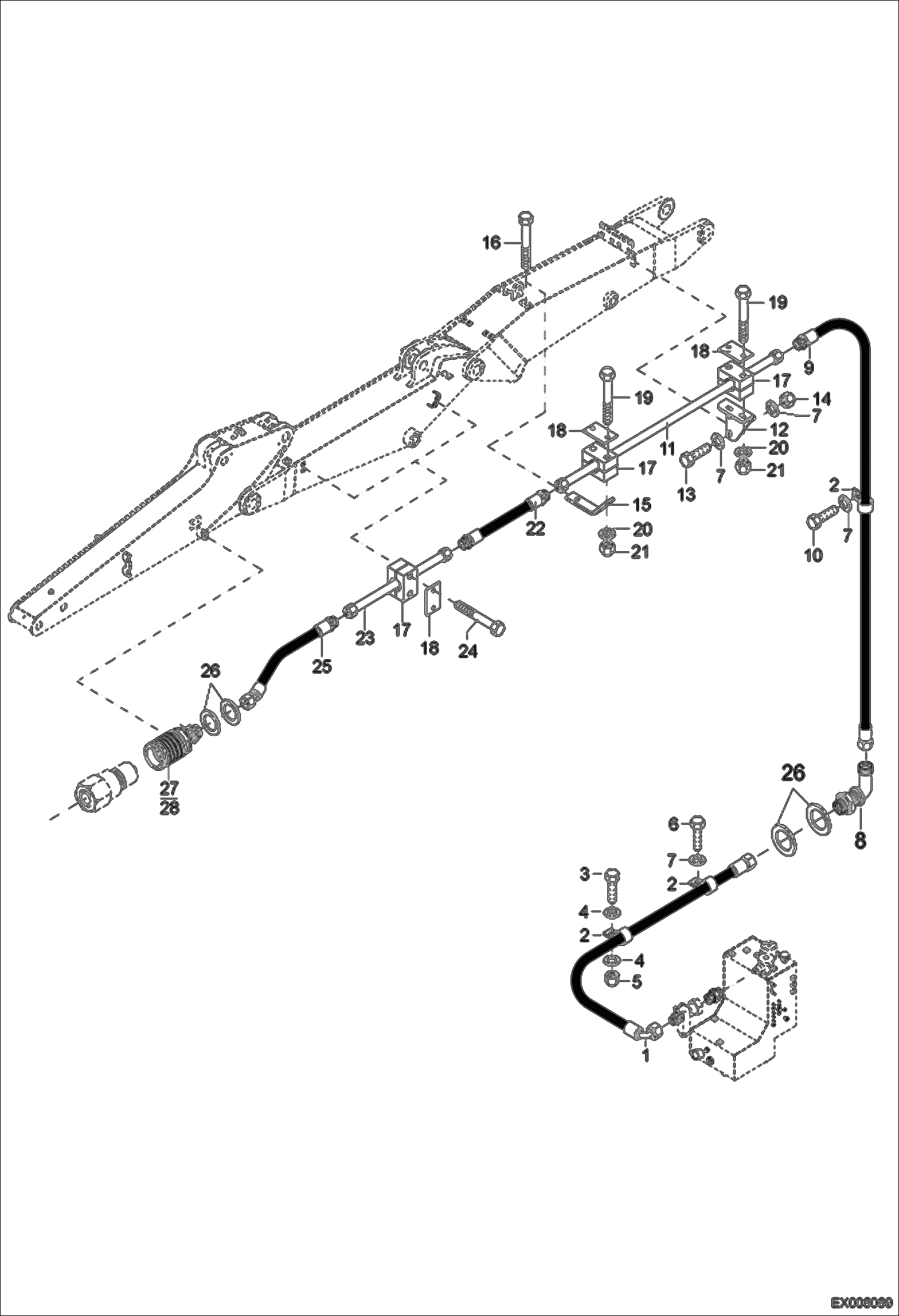

Запчасти Bobcat 444 PRESSURELESS RETURN LINE - ARTICULATED BOOM HYDRAULIC SYSTEM

1

4132194370

HOSE

2

5000210450

HOSE CLIP

3

1008707124

BOLT

4

1343707059

WASHER

5

1212251013

NUT

6

1008707517

BOLT

7

1343707057

WASHER

8

1931060158

FITTING

9

4132150158

HOSE

10

1008707018

BOLT

11

0209742022

PIPE

12

0209242022

ANGLE

13

1008707618

BOLT

14

1212251011

NUT

15

0209742021

ANGLE

16

1007707824

BOLT

17

5660199634

HOSE CLIP

18

5660200150

COVER

19

1007707914

BOLT

20

1343707055

WASHER

21

1212251009

NUT

22

4132095159

HOSE

23

0209742023

PIPE

24

1007707514

BOLT

25

4132115173

HOSE

26

1309412636

WASHER

27

5260308012

COUPLING SOCKET

28

5260308022

DUST CAP
