Запчасти Bobcat 444 UPPER CARRIAGE MAIN FRAME

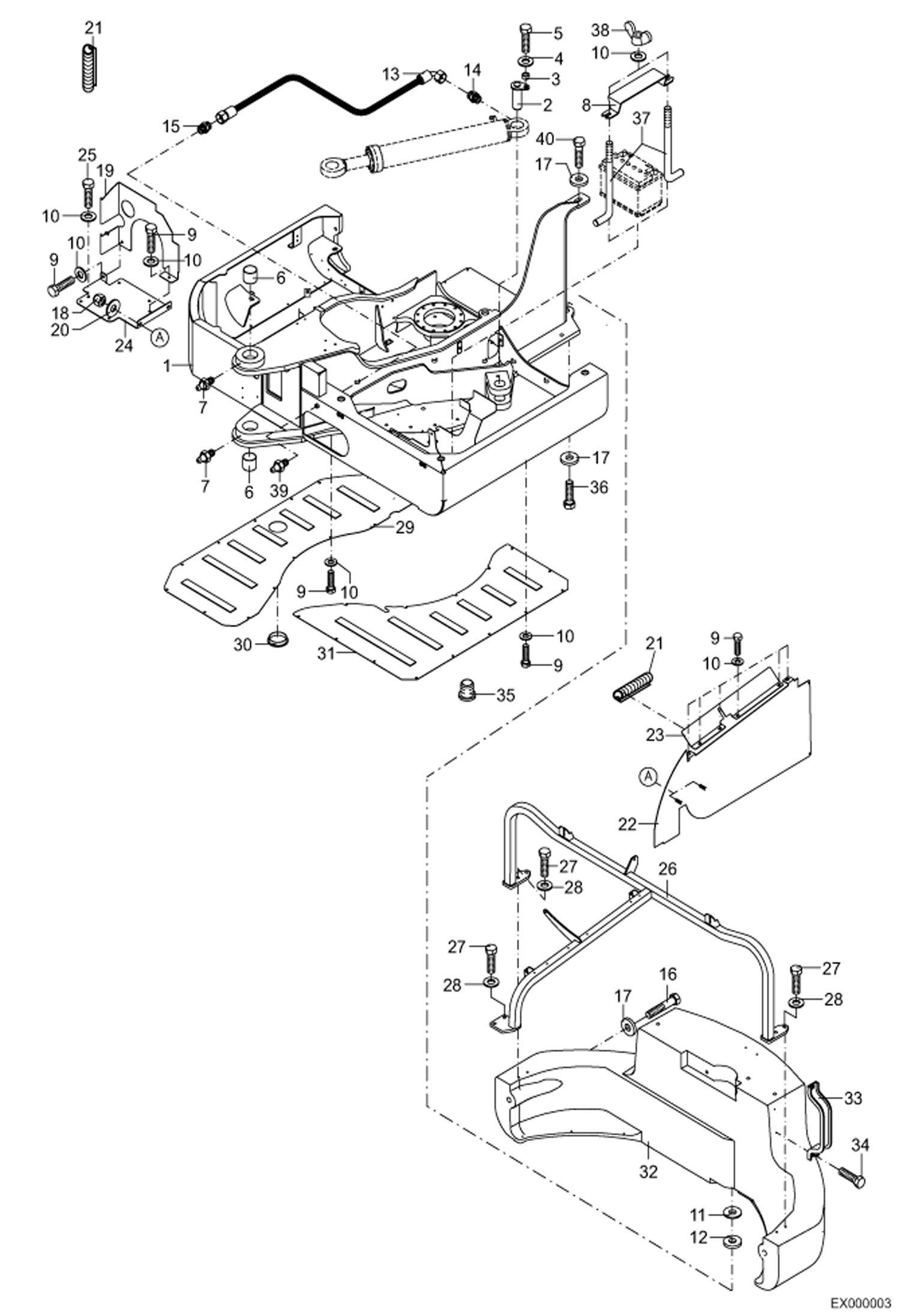

Схема запчастей Bobcat 444 - UPPER CARRIAGE MAIN FRAME

Артикул

Название

Примечание

Количество

1

6217105002

UPPER CARRIAGE

2

0176105230

PIN Was 6176105230 - A

3

0156029033

SPACER

4

1343707061

WASHER

5

1008707829

BOLT

6

5809625664

BUSHING

7

1607010006

GREASE NIPPLE

8

6207506060

BATTERY BRACKET

9

1008707018

BOLT

10

1343707057

WASHER

11

6209006046

WASHER

12

6209006047

WASHER

13

0190006009

HOSE

14

1915060583

FITTING

15

1915060551

FITTING

16

1007707356

BOLT

17

1343707069

WASHER

18

1212251011

NUT

19

6207506030

SHEET-METAL

20

1307707018

WASHER

21

7025098

SEAL, BULK/MTR - A

22

6207506034

SHEET-METAL

23

6190006036

PLATE

24

6207506031

BRACKET

25

1008707318

BOLT

26

6207528050

FRAME

27

1008707030

BOLT

28

1343707059

WASHER

29

6207528030

COVER

30

5558652025

PROTECTION PLUG

31

6207528031

COVER

32

0207506010

COUNTERWEIGHT

33

5354576810

HANDLE

34

1046707213

Bolt

35

1980930193

PROTECTION PLUG

36

1007707153

BOLT

37

6207506061

STUD

38

1245707011

WING NUT

39

1607003010

GREASE NIPPLE

40

1007707553

BOLT

Выбрано товаров: 40
