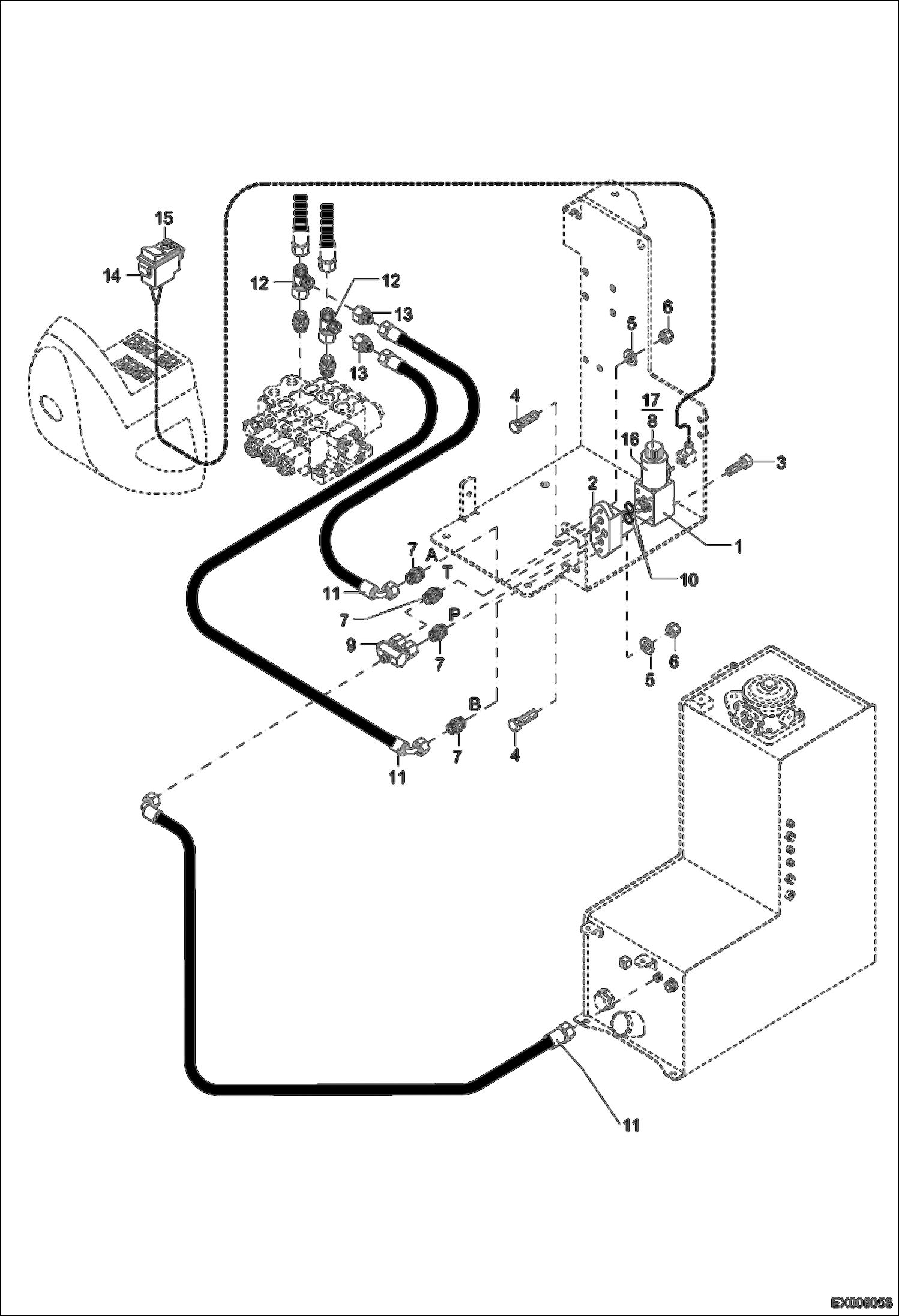

Запчасти Bobcat 444 FLOAT POSITION - BLADE HYDRAULIC SYSTEM

1

5003700002

DIRECT CONTR. VALVE NG06 W/Ref. 8, 10, 16 & 19

2

5003700003

CONNECTING PLATE

3

1045907011

BOLT

4

1008707513

BOLT

5

1290707014

WASHER

6

1212251009

NUT

7

1915060257

FITTING

8

1970956810

O-RING

9

5260310312

FITTING

10

5003700027

SEAL KIT

11

4158046351

HOSE

12

1919060353

FITTING

13

1934060155

FITTING

14

5050651363

ROCKER SWITCH

15

5358650281

SYMBOL float position

16

5003700025

COIL W/Ref. 8

17

5003700026

NUT W/SEAL
