Запчасти Bobcat 444 SLEW EQUIPMENT HYDRAULIC SYSTEM

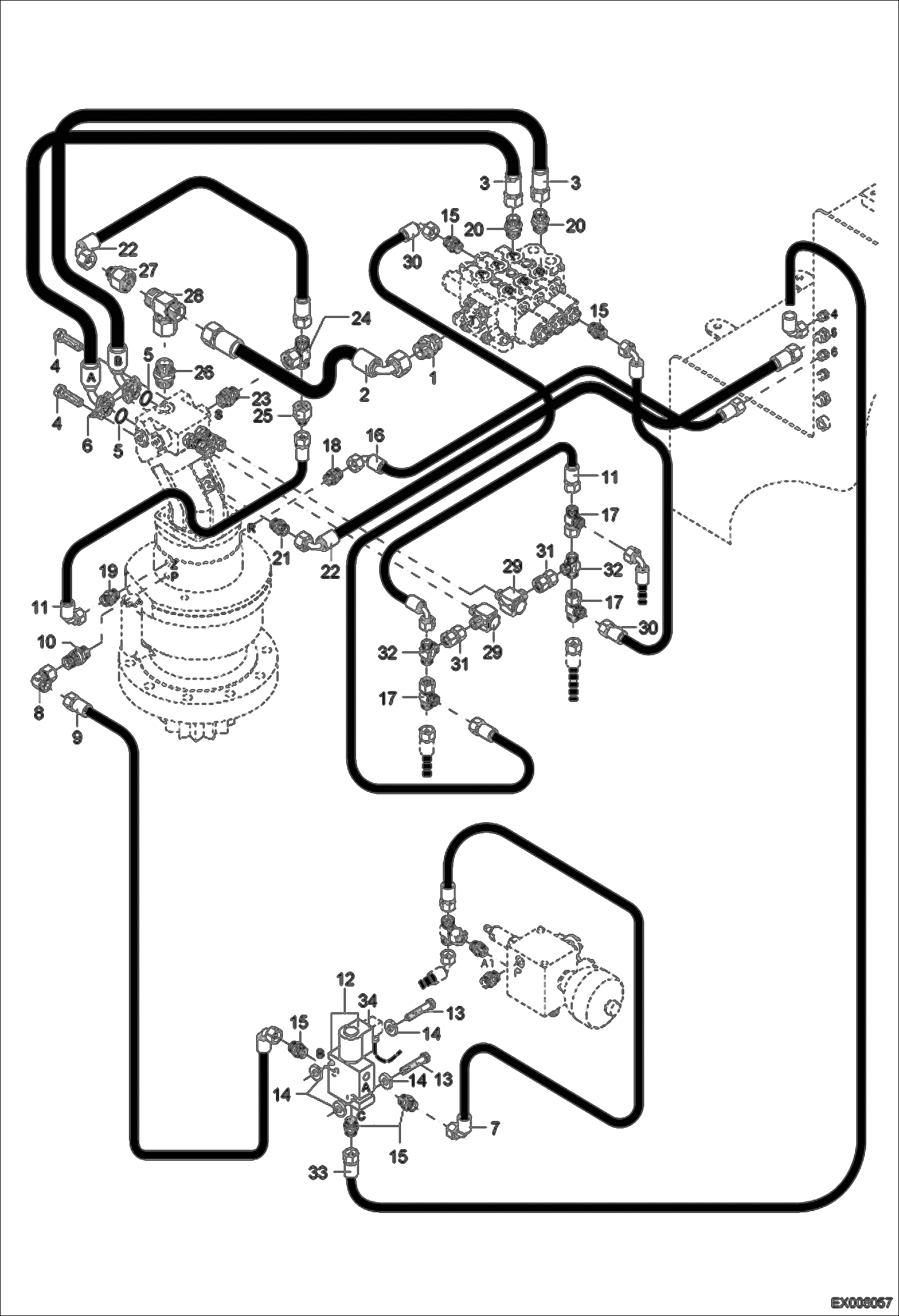

Схема запчастей Bobcat 444 - SLEW EQUIPMENT HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

1915060266

FITTING

2

4120041156

HOSE

3

4262085396

HOSE PIPE W/Ref. 5-6

4

1008707324

BOLT

5

1971956318

O-RING

6

5000587612

FLANGE; HALF

7

4506380371

HOSE Was 4506030240 - D

8

1924060151

FITTING

9

4506115351

HOSE ASSEMBLY CPL.

10

5260310280

ONE WAY VALVE

11

4256033371

HOSE, HYD Was 4506033351 - A

12

5320001001

CONTROL VALVE W/Ref. 34

13

1008707314

BOLT Was 1008707115 - D

14

1343707055

WASHER

15

1915060255

FITTING

16

4506047351

HOSE

17

1919060351

FITTING

18

1915060784

FITTING

19

1915060783

FITTING

20

1915060264

FITTING

21

1915060560

FITTING

22

4110042374

HOSE

23

1915060562

FITTING

24

1919060153

FITTING

25

1934060154

FITTING

26

1915060667

FITTING

27

1934060168

FITTING

28

1919060156

FITTING

29

1921060555

FITTING

30

4506085351

HOSE

31

1915060157

FITTING

32

1939900908

TWO-WAY VALVE

33

4506072351

HOSE

34

5320001002

SOLENOID CARTRIDGE

Выбрано товаров: 34
