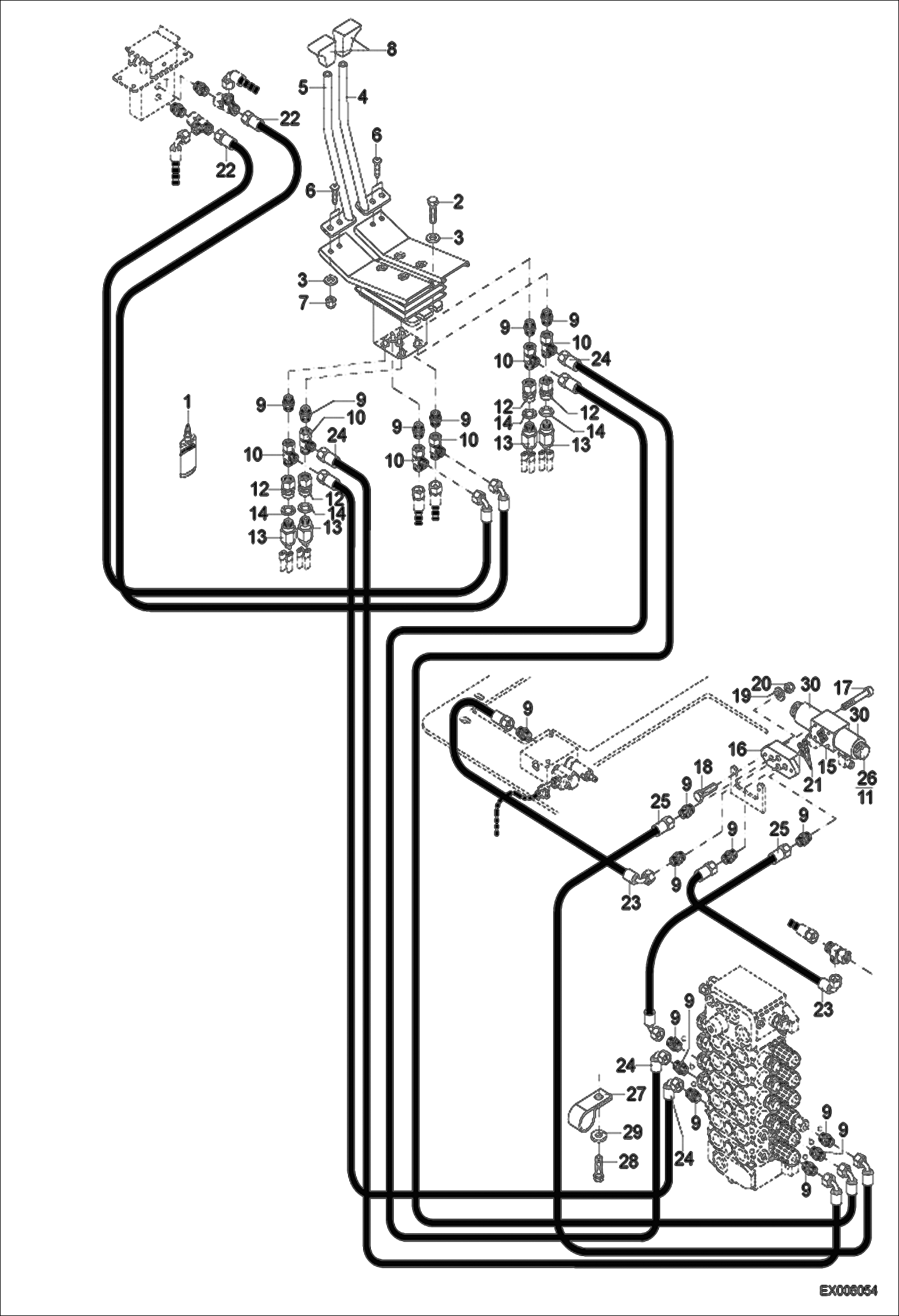

Запчасти Bobcat 444 PILOT CONTROL - TRAVEL, ADDITIONAL OUTLET HYDRAULIC SYSTEM

1

MCS001040A

GLUE

2

1008707018

BOLT

3

1290707018

WASHER

4

0216009071

LEVER, TRAVEL RH

5

0216009070

LEVER, TRAVEL LH

6

1069020018

BOLT

7

1212251011

NUT

8

1576000512

HANDLE W/Ref. 1

9

1915060255

FITTING

10

1919060351

FITTING

11

1970956810

O-RING

12

1943000101

CONNECTION

13

5050143209

SWITCH Was 5050143175 - A

14

1636815155

SEAL RING

15

5003700001

DIRECT CONTR. VALVE W/Ref. 11, 21, 26 & 30

16

5003700003

CONNECTING PLATE

17

1045907011

BOLT

18

1008707513

BOLT

19

1290707014

WASHER

20

1212251009

NUT

21

5003700027

SEAL KIT

22

4506040351

HOSE Was 4506033351 - A

23

4506140371

HOSE

24

4506270371

HOSE

25

4506180351

HOSE

26

5003700026

NUT W/SEAL W/Ref. 11

27

5000210462

HOSE CLIP

28

1008707817

BOLT

29

1343707057

WASHER

30

5003700025

COIL
