Запчасти Bobcat 444 UNDERCARRIAGE (Hydraulic Hoses And Fittings) HYDRAULIC SYSTEM

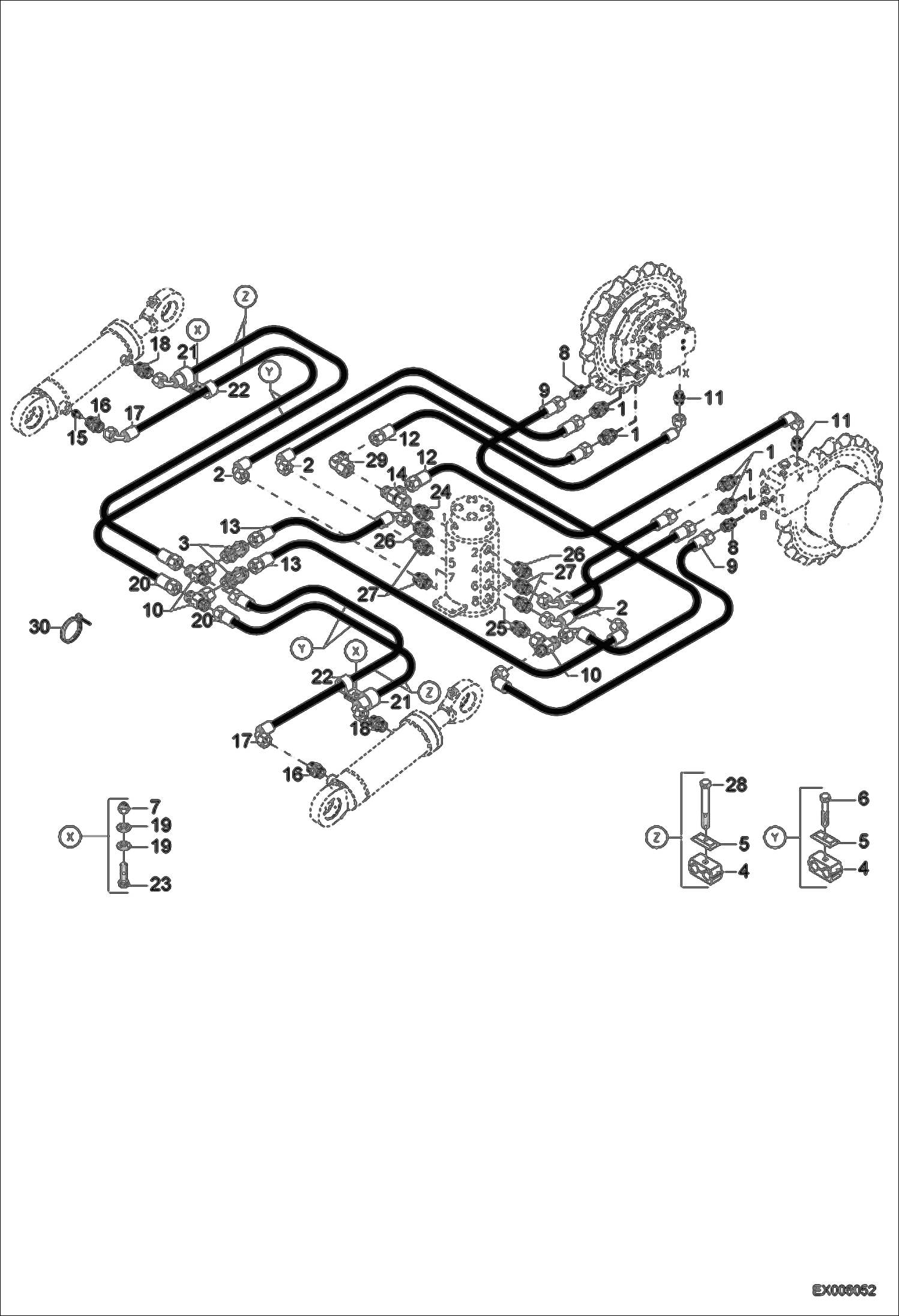

Схема запчастей Bobcat 444 - UNDERCARRIAGE (Hydraulic Hoses And Fittings) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

1915060798

FITTING

2

4466170512

HOSE

3

1913060153

FITTING

4

5660199768

HOSE CLIP

5

5660200220

COVER PLATE

6

1007707818

BOLT

7

1212251011

NUT

8

1915060789

FITTING

9

4110195374

HOSE

10

1919060153

FITTING

11

1915060787

FITTING

12

4506205351

HOSE

13

4260054374

HOSE

14

1919060351

FITTING

15

5368632256

HOSE RUPTURE VALVE

16

1915060262

FITTING

17

4260156374

HOSE

18

1915060560

FITTING

19

1290707018

WASHER

20

4260125374

HOSE

21

5000136820

HOSE CLIP

22

5000136800

HOSE CLIP

23

1008707018

BOLT

24

1915060255

FITTING

25

1915060260

FITTING

26

1915060261

FITTING

27

1915060278

FITTING

28

1007707519

BOLT

29

1924060151

FITTING

30

5350650280

BINDER

Выбрано товаров: 30
