Запчасти Bobcat 444 OIL COOLER HYDRAULIC SYSTEM

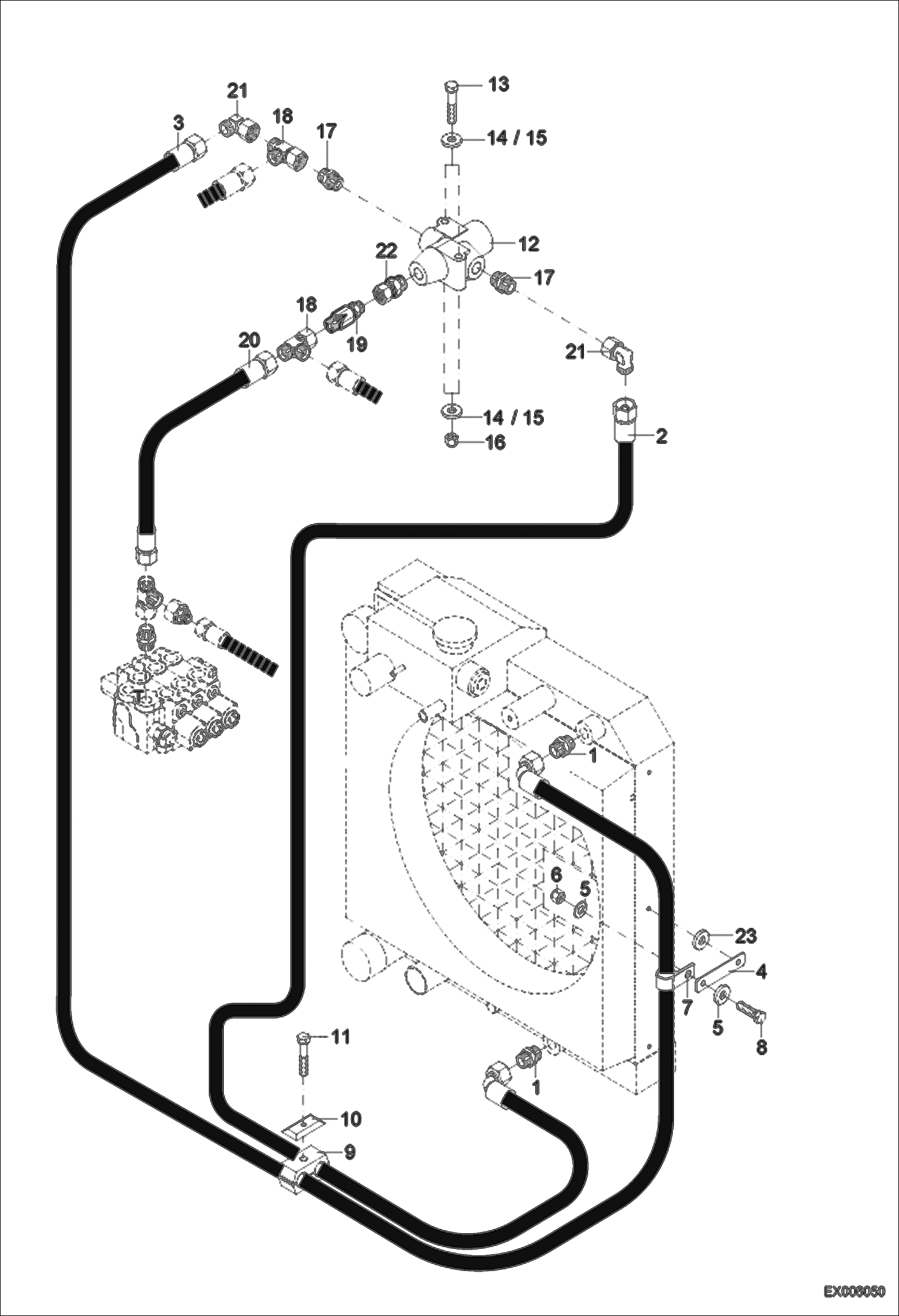

Схема запчастей Bobcat 444 - OIL COOLER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

1915060266

FITTING

2

4120129156

HOSE

3

4120215156

HOSE

4

6283415018

BRACKET

5

1290707018

WASHER

6

1212251011

NUT

7

5000210463

HOSE CLIP

8

1008707018

BOLT

9

5660199793

CLIP

10

5660200240

COVER PLATE

11

1007707619

BOLT

12

5755655550

OIL TEMPERATURE RE

13

1007707914

BOLT

14

1343707055

WASHER

15

1290707014

WASHER

16

1212251009

NUT

17

1915060567

FITTING

18

1919060356

SOCKET

19

1915991790

ONE-WAY VALVE

20

4120140409

HOSE

21

1924060156

ELBOW FITTING

22

1938060357

FITTING

23

1343707057

WASHER

Выбрано товаров: 23
