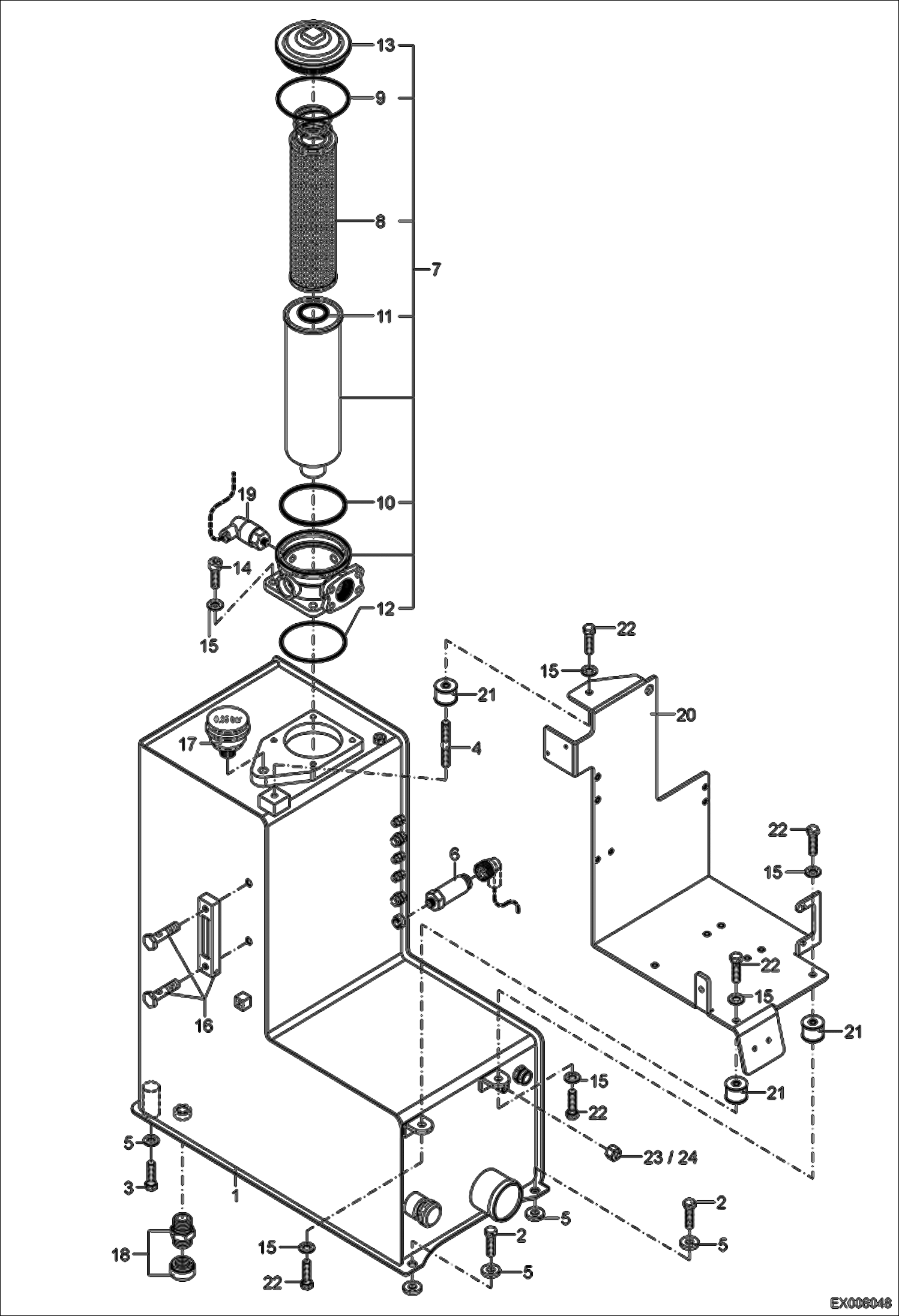

Запчасти Bobcat 444 HYDRAULIC OIL TANK HYDRAULIC SYSTEM

1

6207513102

HYDRAULIC OIL TANK

2

1008707230

BOLT

3

1008707830

BOLT

4

1133907324

STUD

5

1343707061

WASHER

6

5091661776

OIL LEVEL SENSOR

7

5380660829

RETURN FILTER W/Ref. 8-13

8

5380658088

FILTER, OIL HYD TANK

9

1970956938

O-RING

10

3591410550

O-RING

11

1970956779

O-RING 44X6

12

1970956736

O-RING

13

5380660846

COVER filter

14

1045707923

BOLT

15

1290707020

WASHER

16

5368632243

OIL GAUGE

17

5501655650

BREATHER CAP 0,35bar

18

5366654593

DRAIN PLUG

19

5380660832

SWITCH, PRESS Was 5380660831 - A

20

6190008012

VALVE PLATE Was 6190008012

21

BEARING NLA - Was 5101290966 - A

22

1008707423

BOLT

23

1912060355

PLUG

24

1911060155

UNION NUT
