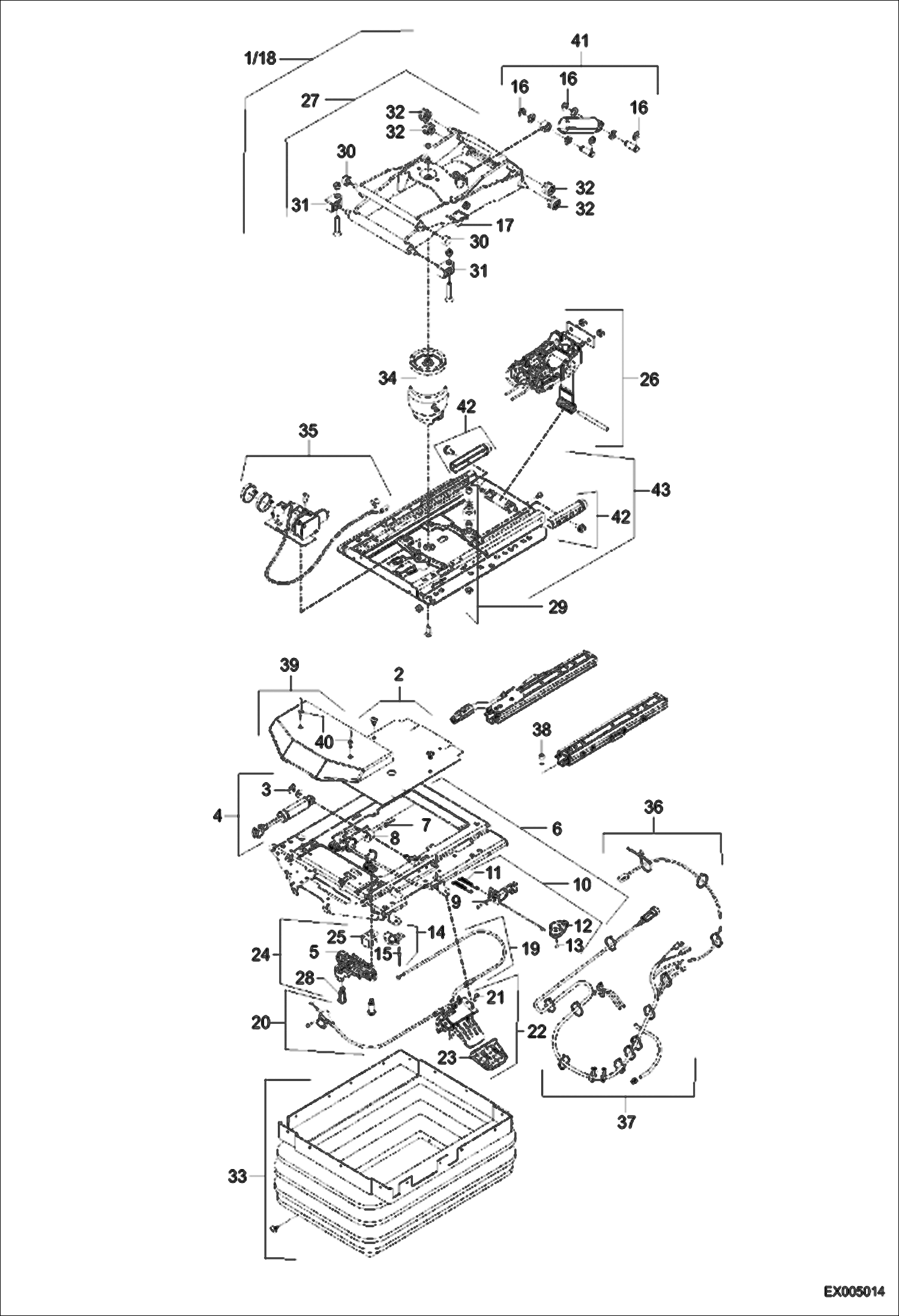

Запчасти Bobcat 444 SEAT SUSPENSION MSG 95 (Previous version) CONTROLS

1

5305670225

SUSPENSION

2

5305670046

COVER

3

5305670228

WASHER

4

5305670269

SHOCK ABSORBER CPL.

5

5305670048

BUSHING

6

5305670270

UPPER PART, CPL. W/Ref. 8, 10, 30 & 32

7

1940000939

RIVET

8

5305670271

BUMPER CPL. W/Ref. 7

9

5305670209

WASHER

10

5305670272

STOP DEVICE CPL. W/Ref. 9 & 11-12

11

5305670273

TENSION SPRING

12

5305670164

HANDLE CPL W/Ref. 13

13

5305670166

BOLT

14

5305670167

STOP CPL W/Ref. 15

15

5305670168

RIVET

16

5305670131

WASHER

17

5305670029

STOP

18

5305670274

WEAR PARTS SET

19

5305670054

BOWDEN CABLE

20

5305670055

CABLE ASSY

21

5305670026

BOLT

22

5305670056

CONTROL UNIT W/Ref. 21 & 23

23

5305670057

HANDLE

24

5305670275

SPRING CPL. W/Ref. 5, 8, 15, 25 & 28

25

5305670059

BUMPER

26

5305670045

LEVEL CONTROL

27

5305670226

ROCKER CPL W/Ref. 15-17, 30-32 & 42

28

5305670279

BOLT

29

5305670229

BUMPER CPL

30

5305670230

ROLLER

31

5305670436

BEARING

32

5305670062

TRACK ROLLER

33

5305670063

COVERING

34

5305670276

GAS STRUT CPL.

35

5305670277

COMPRESSOR CPL.

36

5305670067

CABLE

37

5305670278

HOSE CPL.

38

5305670234

BOLT

39

5305670181

COVER W/Ref. 40

40

5305670182

RIVET

41

5305670070

GAS STRUT

42

5305670184

STOP

43

5305670178

SEAT BOTTOM ASSY W/Ref. 31-32 & 42
