Запчасти Bobcat 444 UNDER CARRIAGE, SUPPORT BLADE, COVER MAIN FRAME

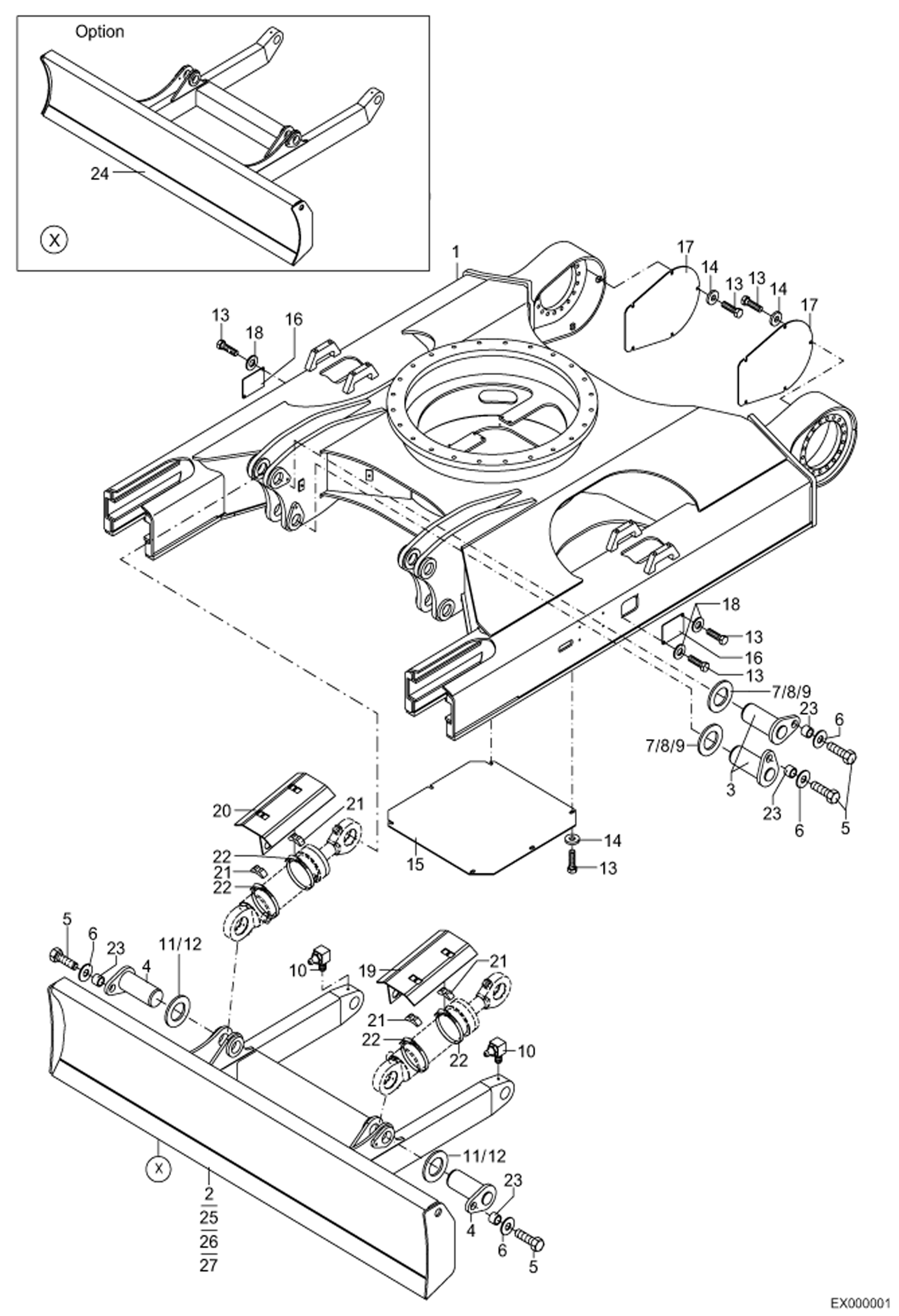

Схема запчастей Bobcat 444 - UNDER CARRIAGE, SUPPORT BLADE, COVER MAIN FRAME

Артикул

Название

Примечание

Количество

1

6207501005

UNDER CARRIAGE

2

6207502030

SUPPORT BLADE Standard

3

0207502050

PIN Was 6207502050 - A

4

6176105030

PIN

5

1008707829

BOLT

6

1343707061

WASHER

7

0203024054

TOOL

8

0202524050

WASHER

9

0203024057

WASHER

10

1608003010

GREASE NIPPLE

11

1309412013

SHIM

12

1309412825

SHIM

13

1008707018

BOLT

14

1343707057

WASHER

15

6190002011

COVER

16

6189602020

COVER RUNNING WHEE

17

6207502010

COVER

18

1290707018

WASHER

19

6190002055

COVER (LEFT)

20

6190002051

PROTECTION (HYDR.CYLINDER)

21

0110012050

RUBBER LAYER

22

5660095400

HOSE CLIP

23

0156029033

SPACER

24

6207819002

ELONGATED SUPPORT BLADE Option

25

6207862001

SUPPORT BLADE Option

26

6207815030

SUPPORT, BLADE 2800MM Option

27

6207816030

SUPPORT BLADE Option

Выбрано товаров: 27
